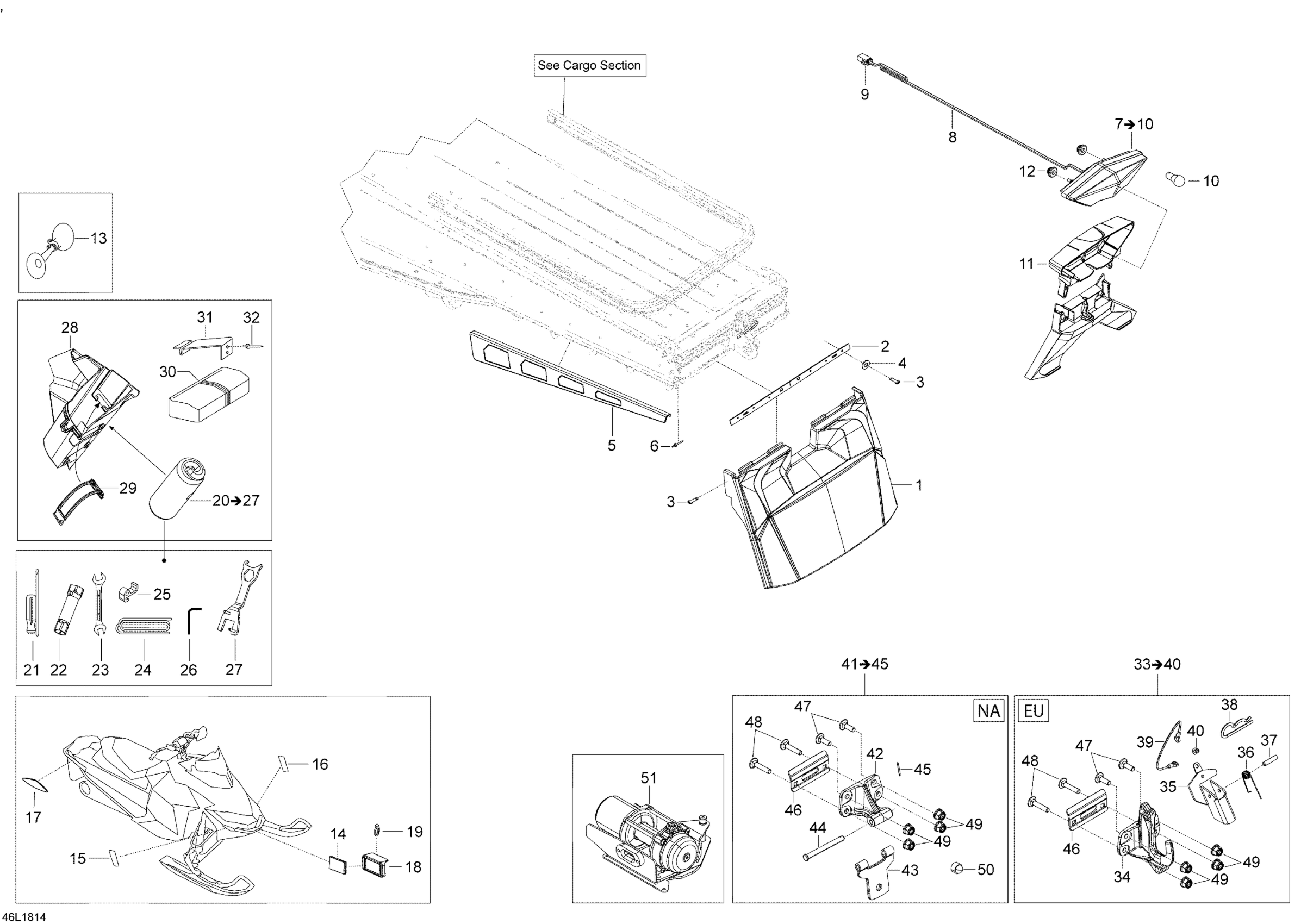

Ski-Doo EXPEDITION LE/SE 600HO E-TEC, 2018 Utilities Expedition - 600HO E-TEC Diagram

#

Description
Price

1

Snow Guard

520001406

$85.49

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rivet Hucklok

293150163

$2.99

7

Rear Light | Includes 200 to 200a

520000848

$99.49

8

Rear Wiring Harness

520000849

$53.99

8.1

Wiring Harness Ass'y | Not Shown

520000677

$38.99

10

Bulb

520000758

$9.10

11

Rear Light Cover

511000764

$38.99

12

Stopper Rubber

705014429

$5.95

15

Yellow, RH Reflector

520001600

$33.99

16

Yellow, LH Reflector

520001601

$33.99

17

Red, Lateral Reflector

705003412

$15.49

20

Tools Kit | Includes 1400 to 1400e

520001670

$49.49

28

Tool Kit Rack

520000894

$14.99

29

Latch

520000528

$7.69

33

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

36

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

37

Cotter Pin

41031

$7.65

46

Plate

520000727

$36.99

47

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

48

Bolt Carriage M8 X 40

207784044

$1.15

49

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Cover | Model-T3

28056

$5.89

52

Amber Reflector | Except Europe Model

705011222

$14.49

53

LH Reflector Mount | Package SE

520001744

Unavailable

53

RH Reflector Mount | Package SE

520001746

Unavailable

54

Socket Head Screw M8 X 20

205082044

$1.15

55

Hex. Flange Elastic Nut M8

233281414

$1.47

56

Cover | Model-T3

28056

$5.89

57

Elastic Flange Nut M5

233251494

$2.11

60

Support Tape

520001766

Unavailable
