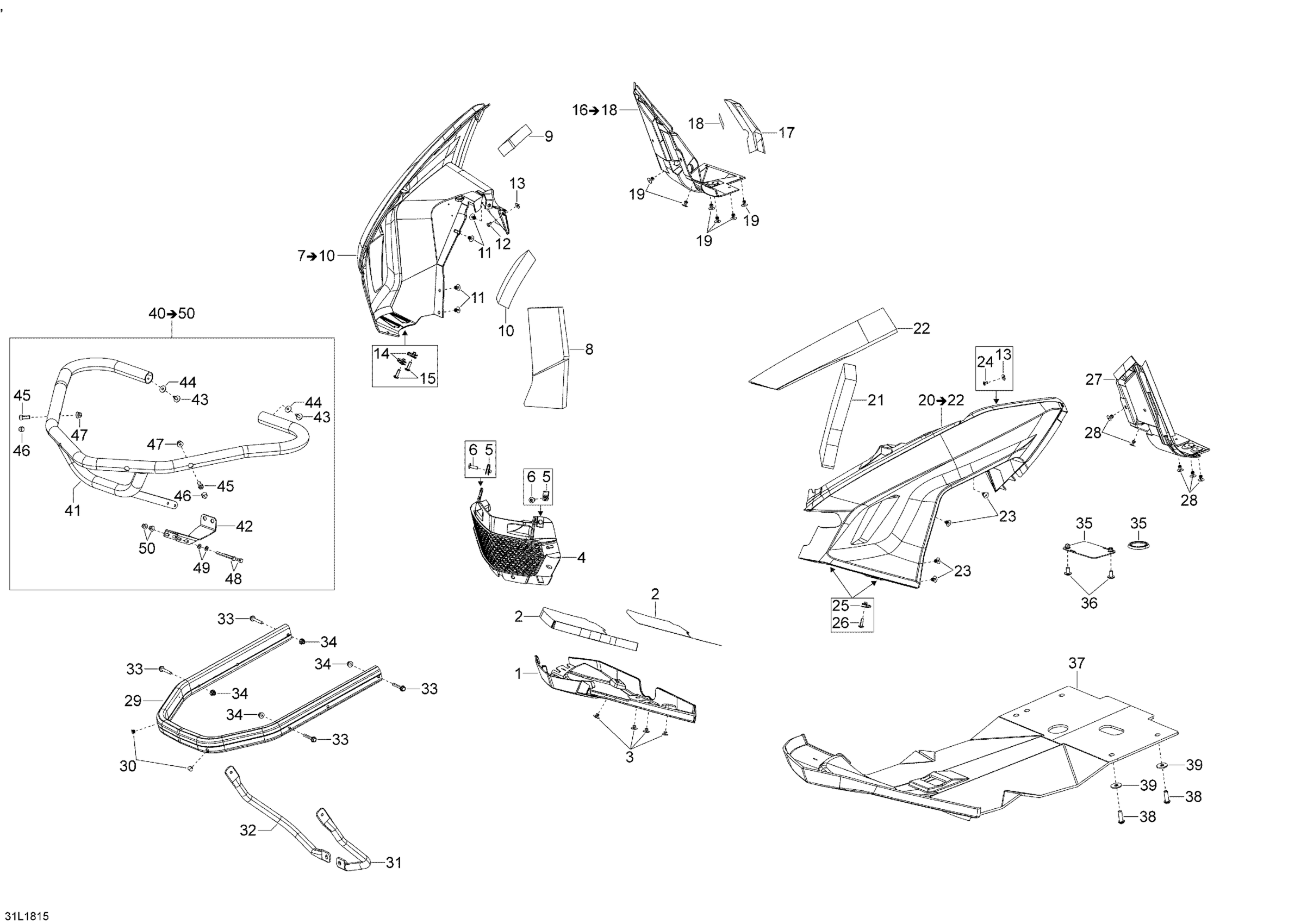

Ski-Doo EXPEDITION LE/SE 600HO E-TEC, 2018 Bottom Pan Expedition - 600HO E-TEC Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$132.81

2

Insulator

502007002

$26.84

3

Pop Rivet 3/16"

293150103

$0.52

4

Grille

502007145

$50.72

5

Panel Nut M6 X 1.0

250100198

$1.99

6

Torx Screw M6 X 20

250000722

$1.54

7

Bottom Pan R.H. | Package SE This part replaces 502007187.

502007992

$150.72

7

Bottom Pan R.H. | Package SWT & LE This part replaces 502007993.

502007994

$132.81

8

Insulator

502007526

$26.84

10

Insulator | Except Package EXTREME

502007009

$17.13

11

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

12

Pop Rivet 3/16"

390402200

$0.30

13

Flat Washer

234052450

$2.00

14

Panel Nut M6 X 1.0

250100198

$1.99

15

Torx Screw M6 X 20

250000722

$1.54

16

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008008

$90.27

17

Aluminium Foil

502007038

$15.64

18

Aluminum foil

44110

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

20

Black, LH Bottom Pan | Except Package SE

502008000

$107.43

20

Deep Black, LH Bottom Pan | Package SE

502008002

$194.99

21

Insulator

502007003

$26.84

22

Insulator

502007185

$29.99

23

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

24

Pop Rivet 3/16"

390402200

$0.30

25

Panel Nut M6 X 1.0

250100198

$1.99

26

Torx Screw M6 X 20

250000722

$1.54

27

LH Rear Bottom Pan

502008012

$99.97

28

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

29

Clear Anod. Bumper | Package SWT & LE

502007684

$115.64

29

Black Anod. Bumper | Package EXTREME & SE

502007685

$89.52

30

Full Moon Dart 8 mm

293730041

$2.06

31

LH Bumper Support

502007014

$91.76

32

RH Bumper Support

502007015

$91.76

33

Hex. Flange Screw M6 X 40

207664044

$2.12

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

Skid Plate | Package SE

860200563

Unavailable

38

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

39

Flat Washer 8 mm

234082410

$1.27
