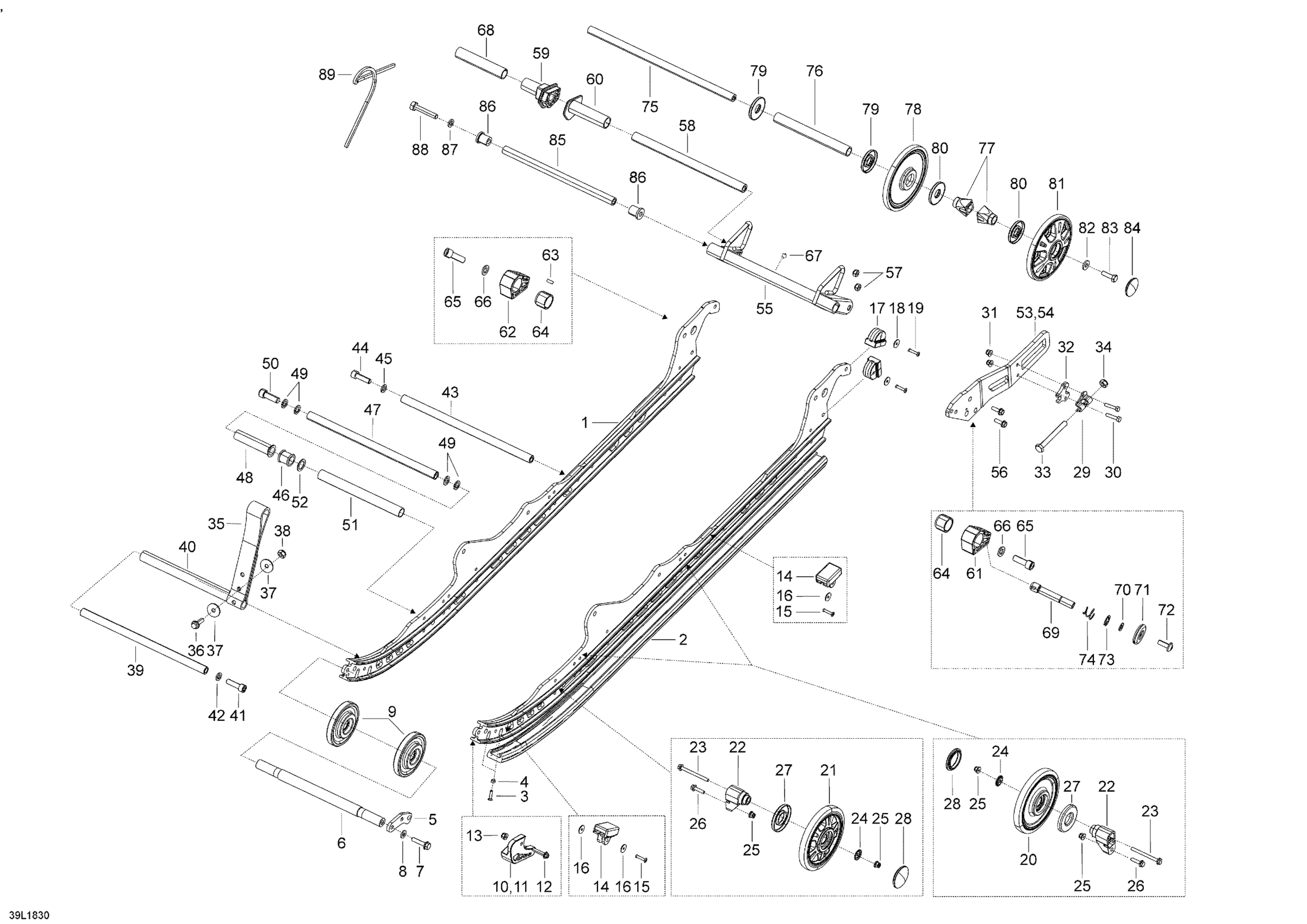

Ski-Doo EXPEDITION LE/SE 600HO E-TEC, 2018 Rear Suspension Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Rocker

503192211

$76.09

5

Rocker

503193464

$76.09

6

Bushing

503193037

$14.90

7

Bushing | Includes 240d to 240d1

503189282

$4.06

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

9

Elastic Locking Nut M10 X 1.5

233601416

$1.63

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$203.70

11

Grease Fitting

408200700

$3.21

12

Lower Shaft

503191390

$26.84

13

Bushing

503189324

$10.84

14

Washer

503192496

$0.73

15

Hex. Screw S.Grip M10 X 55

250000605

$7.09

16

Upper Shaft

503191391

$33.55

17

Bushing

503189324

$10.84

18

Washer

503189564

$0.70

19

Hex. Screw S.Grip M10 X 55

250000605

$7.09

20

Axle Pivot

503191396

$76.09

21

Bolt 369MM

503195156

$24.60

22

Washer

503189157

$3.10

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Rear Arm

503191398

$248.48

25

Rear Arm

503194186

$285.79

26

Black, Dart

414644300

$0.90

27

Not Available As Spare Part - Friction Washer

Unavailable

28

LH Cam Adjuster

503191565

$13.54

29

RH Cam Adjuster

503191566

$13.54

30

E-Circlip

293370013

$0.60

31

Swivel Bushing

503191555

$5.54

32

Pivot Arm | Includes 3000j to 3000j3

503195154

$93.25

33

Lower Shaft

503192330

$44.75

34

Cushion

503191640

$5.54

35

Washer | 7415/7416. 7417/7418.

503189148

$2.64

35

Washer

503189276

$3.10

36

Socket Head Screw M12 X 35

205523554

$4.15

37

Grease Fitting

408200700

$3.21

38

Cushion

503191451

$10.84

39

Upper Shaft

503191405

$86.54

40

Washer

503190328

$11.00

41

Socket Set Screw M6 X 8

206260844

$1.43

42

Wheel 165 | Includes 3070 to 3070a

503190803

$48.48

43

Retaining Ring

503194366

$36.54

44

Washer

503192491

$4.25

45

Socket Screw M12 X 35

250000484

$7.09

46

Black RH Square Spring

503192377

$105.94

46

RH Spring

503194340

$114.15

47

Black LH Square Spring

503192378

$105.94

47

LH Spring

503194341

$114.15

48

Link Rod

503191765

$17.13

48

Link Rod

503193026

Unavailable

48

Link Rod

503194153

$26.09

49

Swivel Bushing

503191555

$5.54

50

Spacer

503190114

$14.90

51

Axle Bar (Long)

503190643

$14.90

51

Bar Axle (Short)

503190113

$36.54

52

Axle Bar (Long)

503190643

$14.90

53

Hex. Screw M8 X 90

207089044

$3.24

53

Hex. Screw M8 X 130

230083044

$7.01

54

Hex. Screw M8 X 90

207089044

$3.24

55

Washer

503189157

$3.10

56

Hex. Flange Elastic Nut M8

233281414

$1.31

57

Rear Shock | Included 5500 to 5500g

503194217

$877.49

57

Rear Shock

503193520

$231.31

57

Rear Shock Ass'y | Includes 57 to 59

503193000

$716.99

58

Male Pneumatic Connector

503191939

$44.75

59

Pneumatic Hose Ass'y

503192649

$120.12

60

Bushing

414936000

$11.21

61

Axle Shock Absorber

503196509

$9.69

62

Leg Cushion

505072663

$7.18

63

Hex. Flange Screw M8 X 40

207684044

$1.43

63

Hex. Flange Screw M8 X 40

207684044

$1.43

64

Hex. Flange Elastic Nut M8

233281414

$1.31

64

Hex. Flange Elastic Nut M8

233281414

$1.31

65

Not Available As Spare Part - Friction Washer

Unavailable

66

Center Shock

503192266

$152.96

66

Center Shock

503194337

$403.70

67

Adjustment Cam

505073625

$11.82

68

Black, Spring 242MM

503191880

$64.90

69

Protector

503193663

$34.30

70

Spring Guide

503191872

$2.12

71

Spring Stopper

706200881

$11.82

71

Spring Stopper

503189912

$16.39

72

Urethane Bushing

503189117

$6.67

73

Bushing | Includes 240d to 240d1

503189282

$4.06

74

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

75

Elastic Locking Nut M10 X 1.5

233601416

$1.63

76

Compressor

706001349

$423.85

77

Check Valve

706000940

$34.30

78

Connector

706000869

$32.06

79

Hose 4.32Mm 3000Mm Long

219704415

$50.72

80

Compressor Bracket

503193103

$4.28

81

Compressor Isolator

706000631

$12.82

82

SUPPORT - Call your local BRP dealership

503193484

Unavailable

83

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

84

Tubing 6 Mm 3000Mm Long

219704425

$12.75

85

Air manifold Ass'y

503193009

$310.42

86

Elbow 90°

706000872

$26.09

87

Connector

706000869

$32.06

88

Male Terminal

515175232

$1.45

89

Male Terminal Housing, 2 Circuits

515175654

$7.25

90

Tubing 6 Mm 3000Mm Long

219704425

$12.75

91

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.00

92

Flat Washer 6 mm

234061410

$1.19

93

Tube

503193034

$15.64

94

Tubing 6 Mm 3000Mm Long

219704425

$12.75

95

Torx Screw M6 X 20

250000722

$1.54

96

Flat Washer 6 mm

234061410

$1.19

97

Hex. Flange Screw M6 X 35

207063544

$1.31

98

Clamp

503193393

Unavailable

99

Screw-Torx Button Head M5 X 14

235551454

$7.09

100

Flange Elastic Nut M5

233251434

$1.91

101

Rivet 3/16"

293150102

$0.69

102

BRACKET - Call your local BRP dealership

503193004

Unavailable

103

Hose Protector

503193006

Unavailable

104

Hose Protector

503193007

Unavailable

105

HOSE PROTECTOR PAINTED - Call your local BRP dealership

503193011

Unavailable

106

Compressor Module | With Air Suspension

515177125

$479.07
