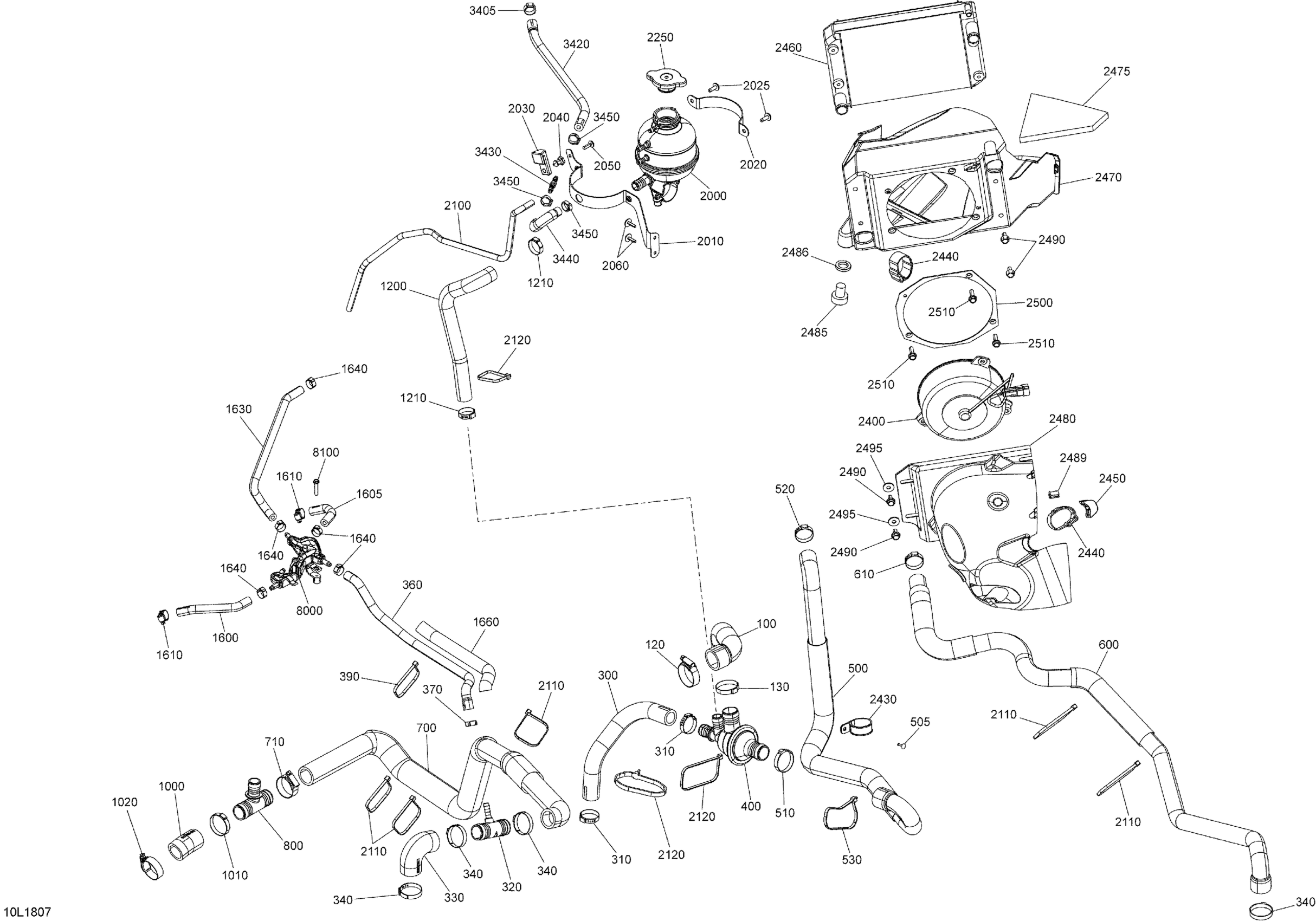

Ski-Doo EXPEDITION LE/SE 600HO E-TEC, 2018 Cooling 600 HO E-TEC Diagram

#

Description
Price

100

Engine Outlet Hose

509000595

$14.54

120

Aba Gear Clamp, 26-38 MM

509000443

$5.68

130

Oetiker Gear Clamp

509000181

$3.61

300

Bypass Hose

509000523

$59.97

310

Crimp Clamp

293650099

$4.60

320

T-Fitting

509000510

$11.52

330

Radiator Hose This part replaces 509000671.

509001066

$18.43

340

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

345

Oetiker Gear Clamp

509000181

$3.61

360

Bleeder Hose

509000906

$23.05

370

Crimp Clamp, 15.3-706R

293650047

$2.64

390

Tie-Rap 180 mm

414115200

$0.09

400

Thermostat Housing

509000499

$39.97

500

Hose Radiator

509000737

$153.05

505

Rivet 3/16"

293150102

$0.71

510

Oetiker Gear Clamp

509000181

$3.61

520

Crimp Clamp

293650099

$4.60

530

Tie-Rap 180 mm

414115200

$0.09

600

Radiator Hose

509000993

$59.97

610

Crimp Clamp

293650099

$4.60

700

Radiator Hose

509000992

$44.58

710

Aba Gear Clamp, 26-38 MM

509000443

$5.68

800

T-Fitting

509000372

$7.87

1000

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

1010

Oetiker Gear Clamp

509000181

$3.61

1020

Aba Gear Clamp, 26-38 MM

509000443

$5.68

1200

Filling Hose

509000736

$35.35

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1600

Bleeder Hose

509000818

$10.52

1605

Bleeder Hose

509000819

$10.52

1610

Tridon Gear Clamp

293650170

$1.74

1630

Hose

509000998

$10.52

1640

Oetiker Clamp

293650046

$2.33

1660

Tubing 16 Mm 1000Mm Long

219704408

$6.23

2000

Coolant Tank

509000368

$86.89

2010

Reservoir support

509000852

$66.12

2020

Support

509000608

$29.97

2025

Forming Screw M5 x 16

250000676

$0.83

2030

Support

509000609

$23.05

2040

Knob

517303439

$3.73

2050

Torx Screw K50 X 16

250000720

$1.39

2060

Screw M4 X 16

250000725

$2.87

2100

Hose 6 Mm 15000Mm Long

219704360

$104.62

2110

Tie Wrap 368 mm

293750008

$0.85

2120

Tie-Rap 180 mm

414115200

$0.09

2250

Radiator Pressure Cap

509000180

$11.69

2400

Fan

509000837

$193.82

2430

Clamp With Rubber

27011

Unavailable

2440

Velcro Strip

508000820

$7.35

2450

Bumper

508000572

Unavailable

2460

Radiator

509000756

$176.12

2470

Cooling Fan Shroud

509001173

$25.35

2475

Foam

509000615

$25.35

2480

Deflector

509001174

$19.20

2485

Rubber Bumper

570044700

$10.55

2486

Spacer

505072579

$7.58

2489

Clip

710000992

$4.00

2490

Hex. Flange Screw M6 X 12

207661244

$1.70

2495

Flat Washer 6 mm

234062410

$0.64

2500

Screw plate

509000614

$23.82

2510

Hex. Flange Screw M6 X 20

210262040

$2.06

3405

Crimp Clamp

293650053

$2.42

3420

Formed Hose

509000880

$14.54

3430

Straight Connector

293710156

Unavailable

3440

Formed Hose

509000879

$9.31

3450

Crimp Clamp, 15.3-706R

293650047

$2.64

8000

Bleed Collector

509000803

$24.58

8100

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61
