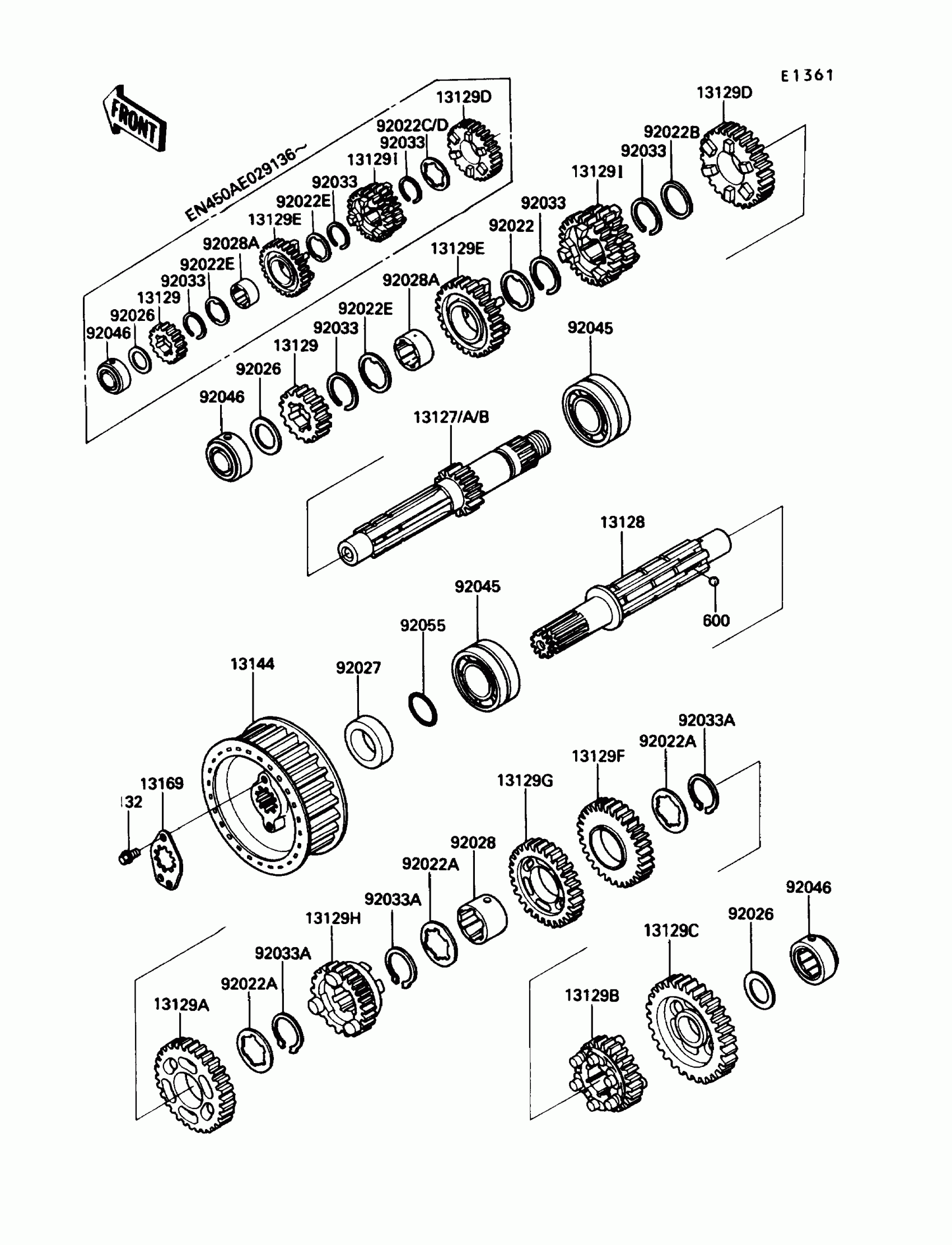

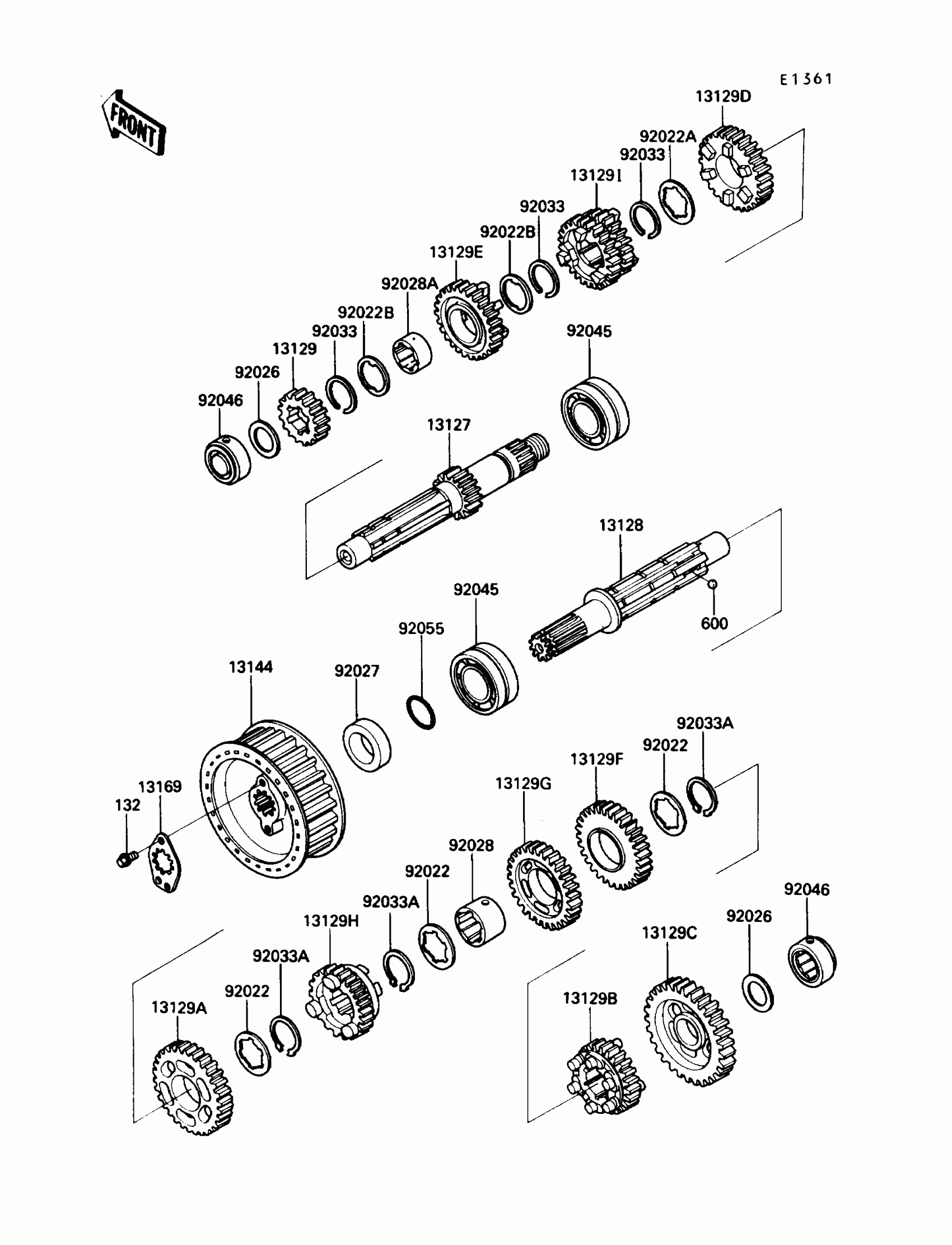

Kawasaki 454 LTD Transmission Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION INPUT,14T
13127-1148
$249.01
13128
SHAFT-TRANSMISSION OUTPUT
13128-1118
Unavailable
13129
GEAR,INPUT 2ND,18T
13129-1077
Unavailable
13129A
GEAR,OUTPUT 2ND,32T
13129-1078
Unavailable
13129B
GEAR,OUTPUT 5TH,25T
13129-1083
Unavailable
13129C
GEAR,OUTPUT LOW,36T
13129-1564
$151.72
13129D
GEAR,INPUT 5TH,26T
13129-1657
Unavailable
13129E
GEAR,INPUT TOP,27T
13129-1658
Unavailable
13129F
GEAR,OUTPUT 3RD,29T
13129-1659
Unavailable
13129G
GEAR,OUTPUT 4TH,27T
13129-1660
$143.68
13129H
GEAR,OUTPUT TOP,23T
13129-1662
Unavailable
13129I
GEAR,INPUT 3RD&4TH,21T&24T
13129-1846
Unavailable
13144
SPROCKET-OUTPUT,25T
13144-1115
$147.00
13169
PLATE,SPROCKET
13169-1893
$12.46
92022
WASHER,TOOTHED,28.3X33.5X1
92022-1139
$7.22
92022A
WASHER,TOOTHED,25.3X31.8X1.6
92022-1861
$7.22
92022B
WASHER,TOOTHED,25.5X32X1
92024-033
$8.19
92026
SPACER,20.3X30X2.0
92026-1022
$5.59
92027
COLLAR,25X40X12
92027-1857
$30.84
92028
BUSHING,OUTPUT 3RD&4TH GEAR
92028-1364
$35.90
92028A
BUSHING,INPUT TOP GEAR
92028-1552
$31.84
92033
RING-SNAP,24MM
92033-026
$8.79
92033A
RING-SNAP,25.9X30.6X1.2
92033-1037
$4.65
92045
BEARING-BALL,83993SH2-CS
92045-035
$73.57
92046
BEARING-NEEDLE,NKZ20X34X17
92046-1161
$51.25
92055
RING-O
92055-035
$5.00
132
BOLT-FLANGED-SMALL
132G0612
$1.17
600
BALL-STEEL,5/32
600A0500
$0.81
