Description

Price

11009

GASKET,TAIL LAMP

11009-1412

Unavailable

14024

COVER,LICENSE LAMP

14025-1725

$18.40

14024A

COVER,LICENSE LAMP

14025-1728

$58.37

23016

LAMP-ASSY,LICENSE

23016-1062

Unavailable

23025

LAMP-TAIL

23025-1117

$153.60

23026

LENS,TAIL LAMP

23026-1062

Unavailable

23026A

LENS,LICENSE LAMP

23026-1064

$26.12

23027

BODY-COMP-TAIL LAMP

23027-1057

$63.71

23035

REFLECTOR-LAMP,LICENSE

23035-1060

$23.41

23036

BRACKET-TAIL LAMP

23036-1105

$32.40

28005

BODY-LAMP,LICENSE

28005-1051

$27.90

92009

SCREW,TAPPING,4X25

92009-1069

$3.92

92009A

SCREW,TAPPING,5X40

92009-1263

$3.92

92009B

SCREW,TAPPING,4X20

92009-1378

$4.10

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92027

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 8W

92069-1012

$5.18

92075

DAMPER,LICENSE LAMP

92075-1676

$9.89

92075A

DAMPER,LICENSE LAMP

92075-1694

$24.57

92075B

DAMPER RUBBER,RR FENR

92075-209

$4.69

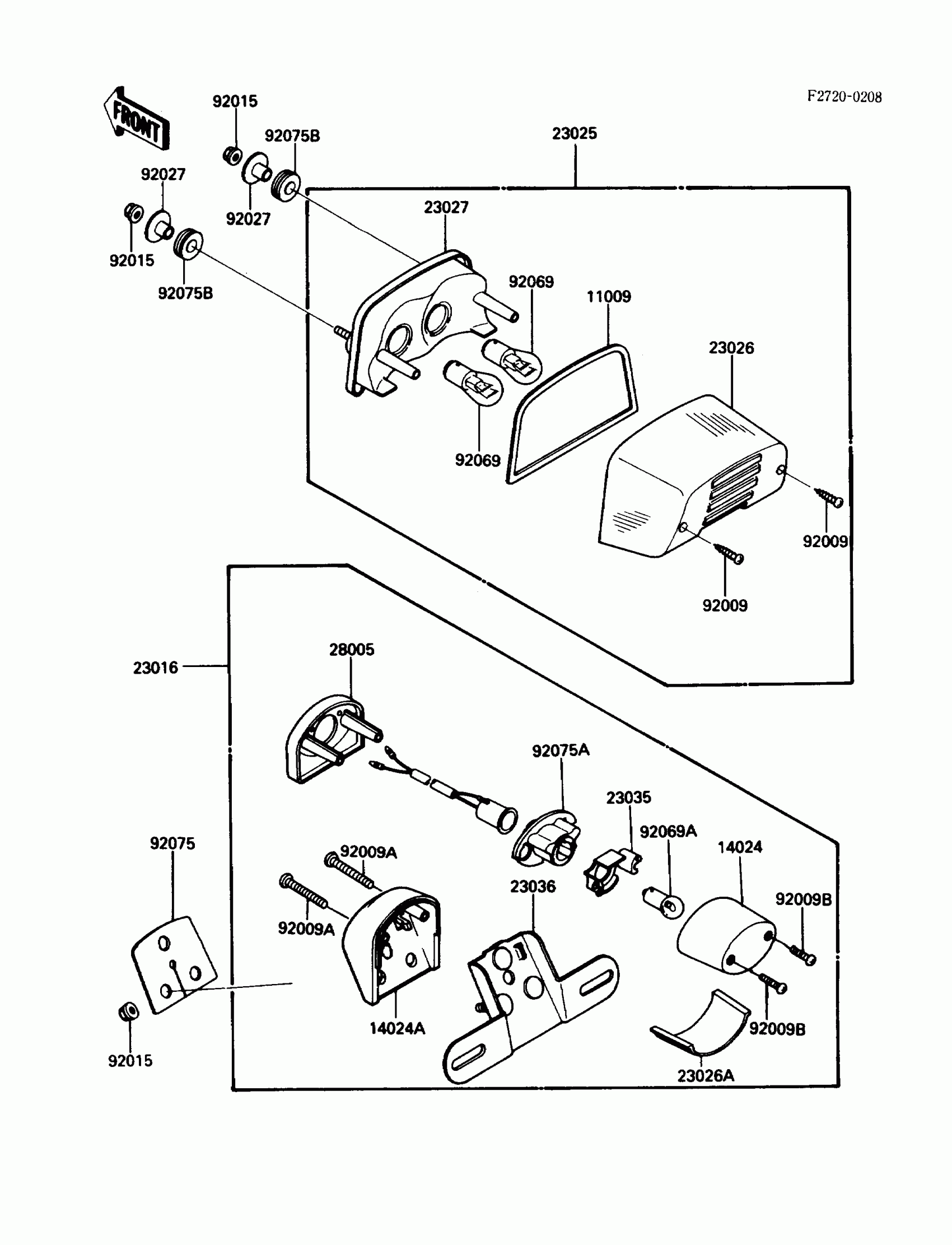

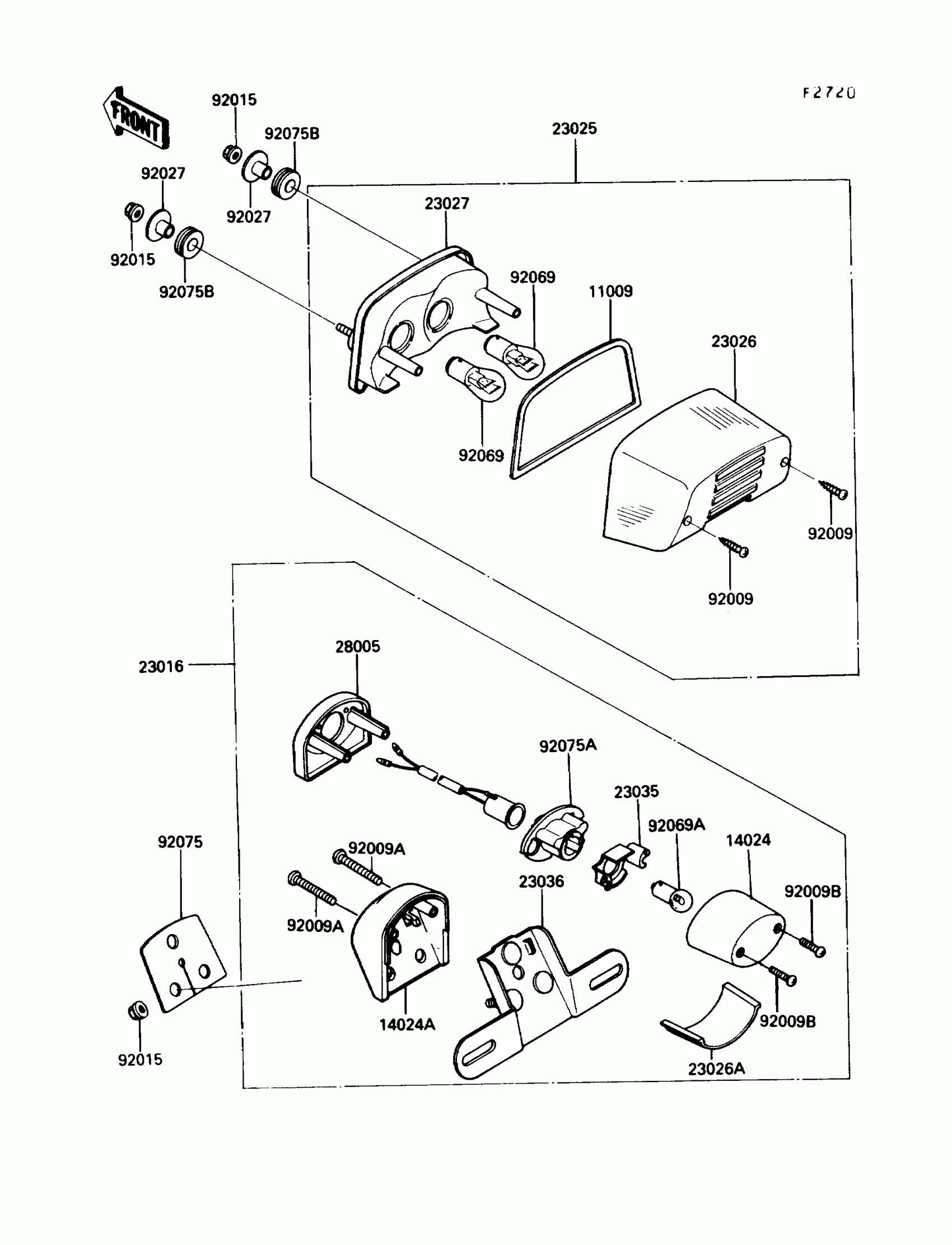

Kawasaki 454 LTD Taillight(s) Diagram

GASKET,TAIL LAMP

COVER,LICENSE LAMP

COVER,LICENSE LAMP

LAMP-ASSY,LICENSE

LAMP-TAIL

LENS,TAIL LAMP

LENS,LICENSE LAMP

BODY-COMP-TAIL LAMP

REFLECTOR-LAMP,LICENSE

BRACKET-TAIL LAMP

BODY-LAMP,LICENSE

SCREW,TAPPING,4X25

SCREW,TAPPING,5X40

SCREW,TAPPING,4X20

NUT,FLANGED,6MM

COLLAR,L=13.1

BULB,12V 27/8W

BULB,12V 8W

DAMPER,LICENSE LAMP

DAMPER,LICENSE LAMP

DAMPER RUBBER,RR FENR
