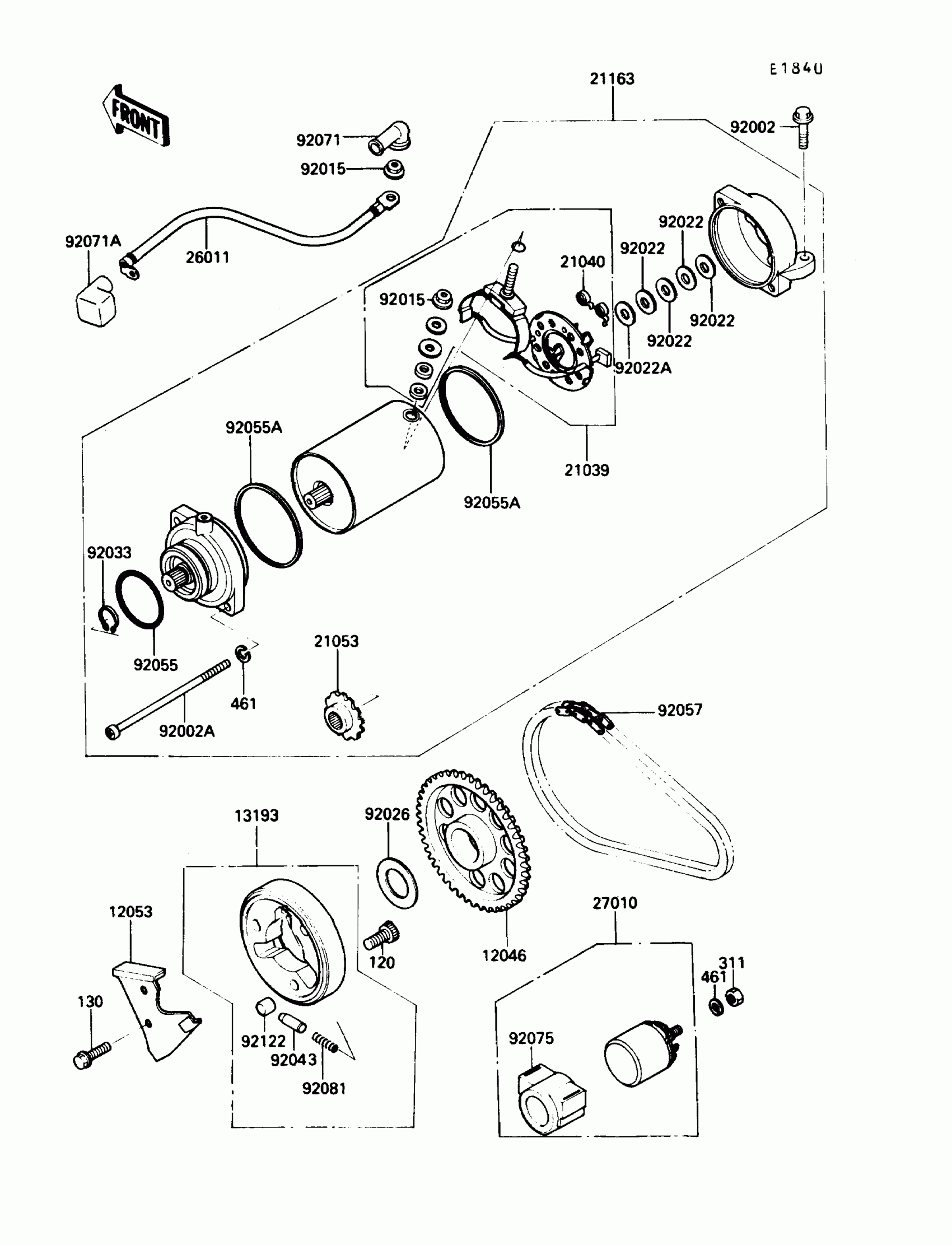

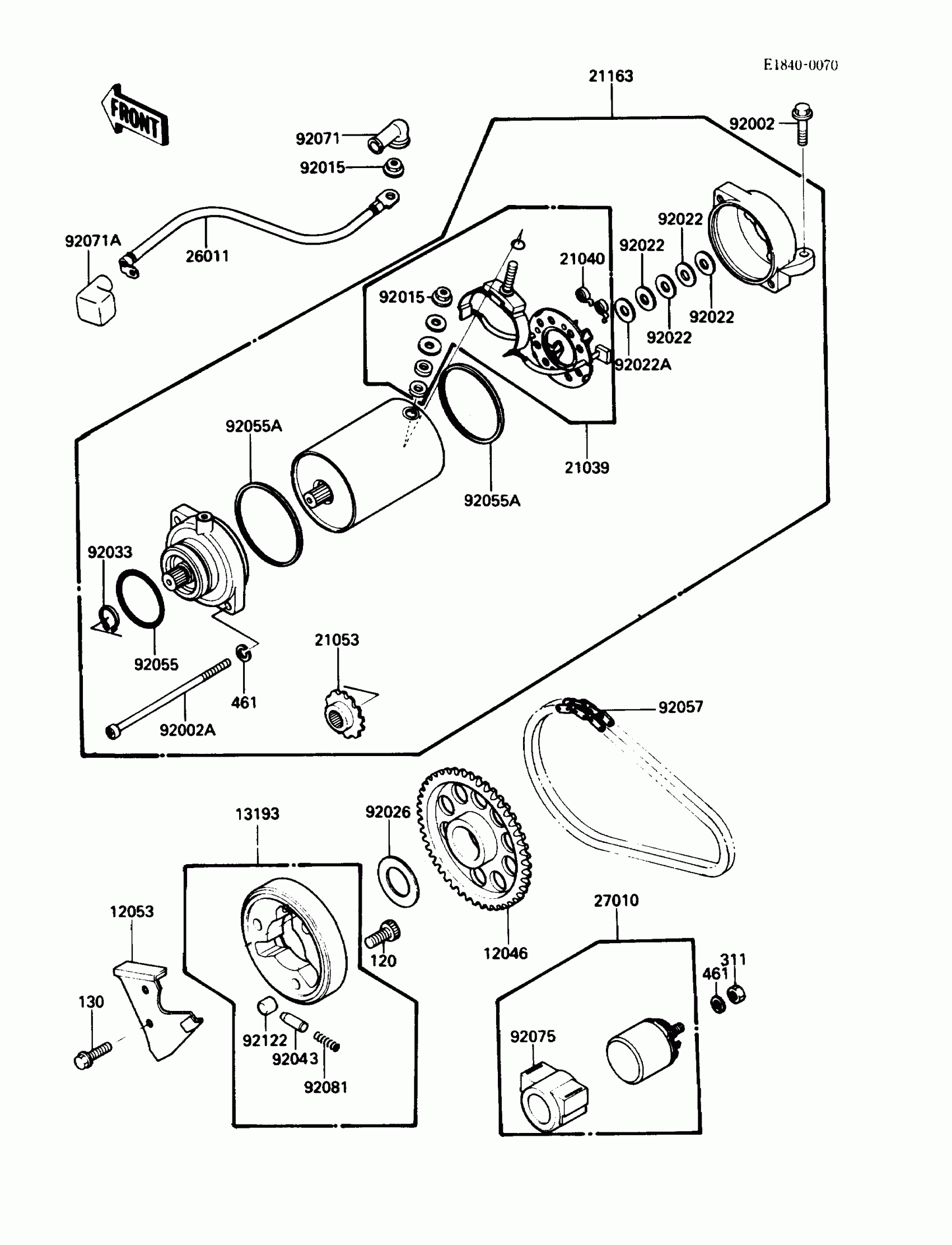

Kawasaki 454 LTD Starter Motor Diagram

#

Description
Price

12046

SPROCKET,ONEWAY CLUTCH,46T

12046-1072

$76.41

12053

GUIDE-CHAIN

12053-1149

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1053

Unavailable

21039

BRUSH,CARBON

21039-1053

$94.23

21040

SPRING-BRUSH

21040-1003

$9.41

21053

SPROCKET-ASSY

21053-002

Unavailable

21163

STARTER-ELECTRIC

21163-1070

$667.40

26011

WIRE-LEAD,STARATER MOTOR

26011-1293

$59.42

27010

SWITCH,MAGNETIC

27010-1235

$154.96

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92002A

BOLT

92002-1474

$15.34

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,9.1X18X0.8

92022-1132

$6.22

92026

SPACER,25.2X40X1.0

92026-1285

$6.52

92033

RING-SNAP,17MM

92033-034

$10.44

92043

PIN

92043-087

$12.76

92055

RING-O,42.8MM

21027-005

Unavailable

92055A

RING-O,64MM

92055-1086

$10.00

92057

CHAIN,STARTER,BF05MX64L

92057-1197

$58.47

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92071A

GROMMET,TERMINAL

92071-1127

Unavailable

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING

92081-110

$4.76

92122

ROLLER,15X13

92122-004

$11.07

120

BOLT-SOCKET,8X16

120P0816

$4.15

130

BOLT-FLANGED,6X20

130G0620

$1.69

311

NUT 6MM

311B0600

$0.93

461

WASHER SPRING 6MM

461F0600

$0.69
