1989 Kawasaki 454 LTD Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1989 Kawasaki 454 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

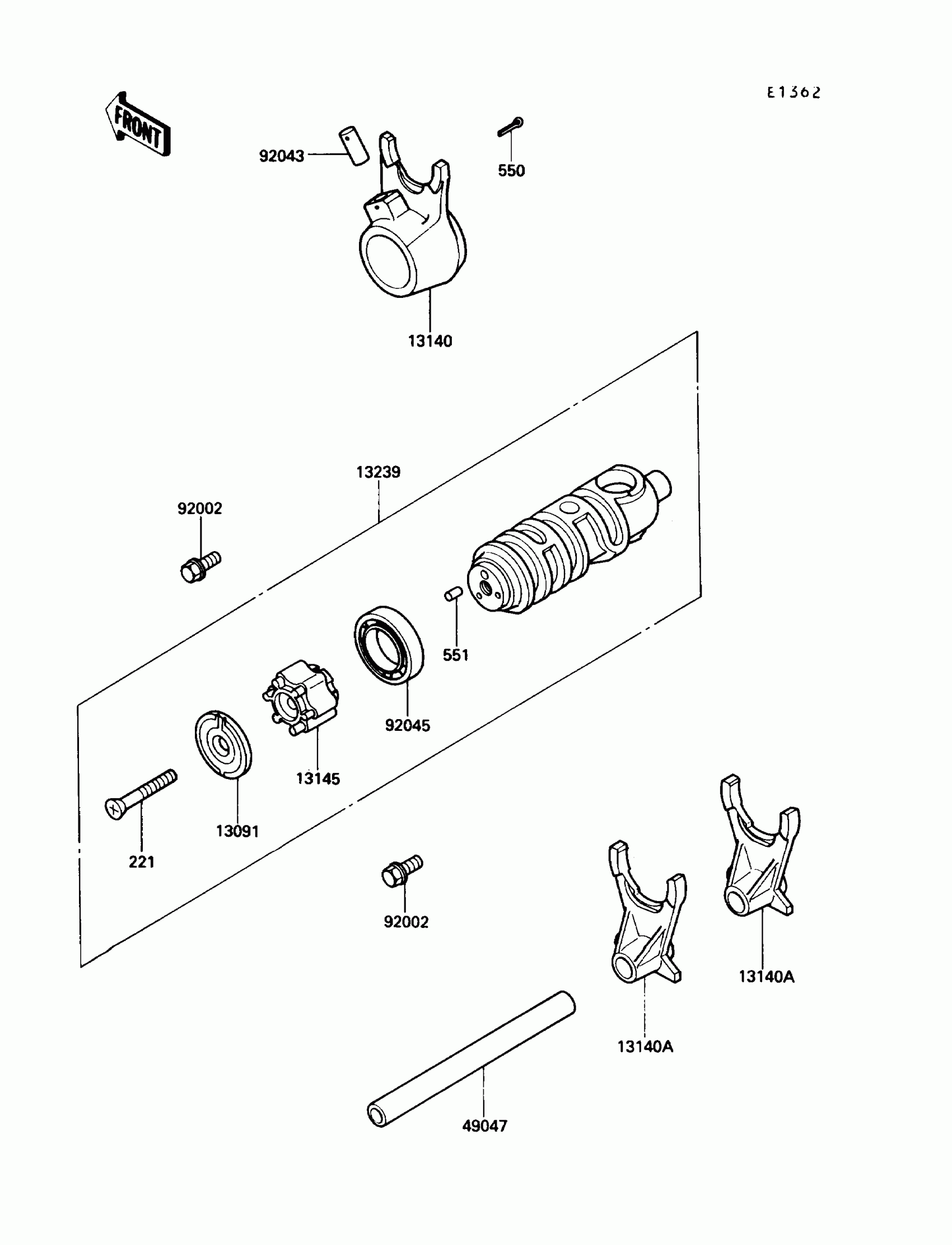

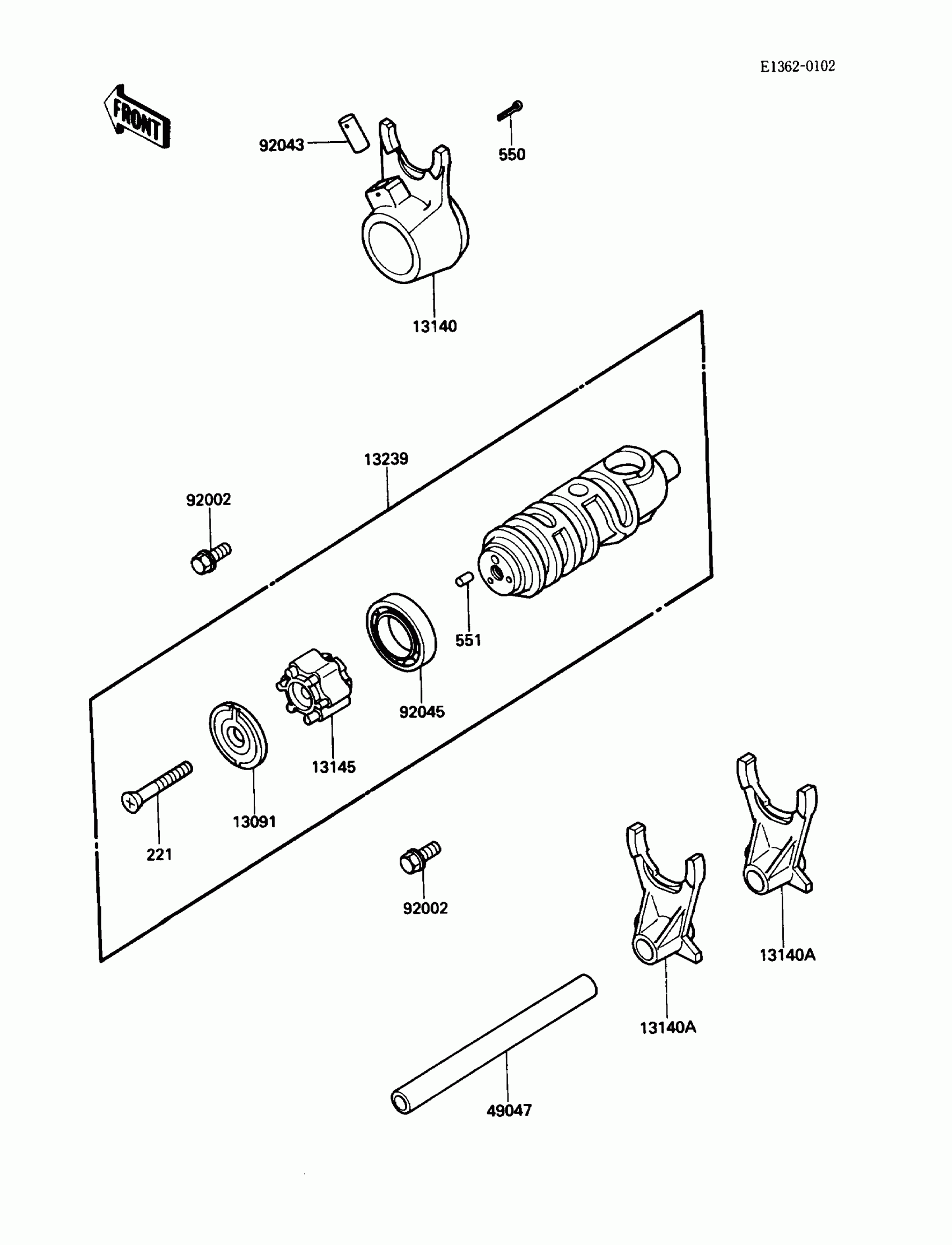

1989 Kawasaki 454 LTD Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM

13091-1351

1

$31.15

In stock

13140

FORK-SHIFT,DRIVE

13140-1016

1

$112.11

In stock

13140A

FORK-SHIFT,OUTPUT

13140-1062

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1056

1

$64.81

In stock

13239

DRUM-ASSY-CHANGE

13239-1118

1
Out of stock

49047

ROD-SHIFT

49047-1061

1

$24.24

In stock

92002

BOLT,6X12

92002-1572

1
Out of stock

92043

PIN,DOWEL,8X18

92042-021

1

$9.12

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

221

1

$3.28

In stock

550

1

$1.53

In stock

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock
