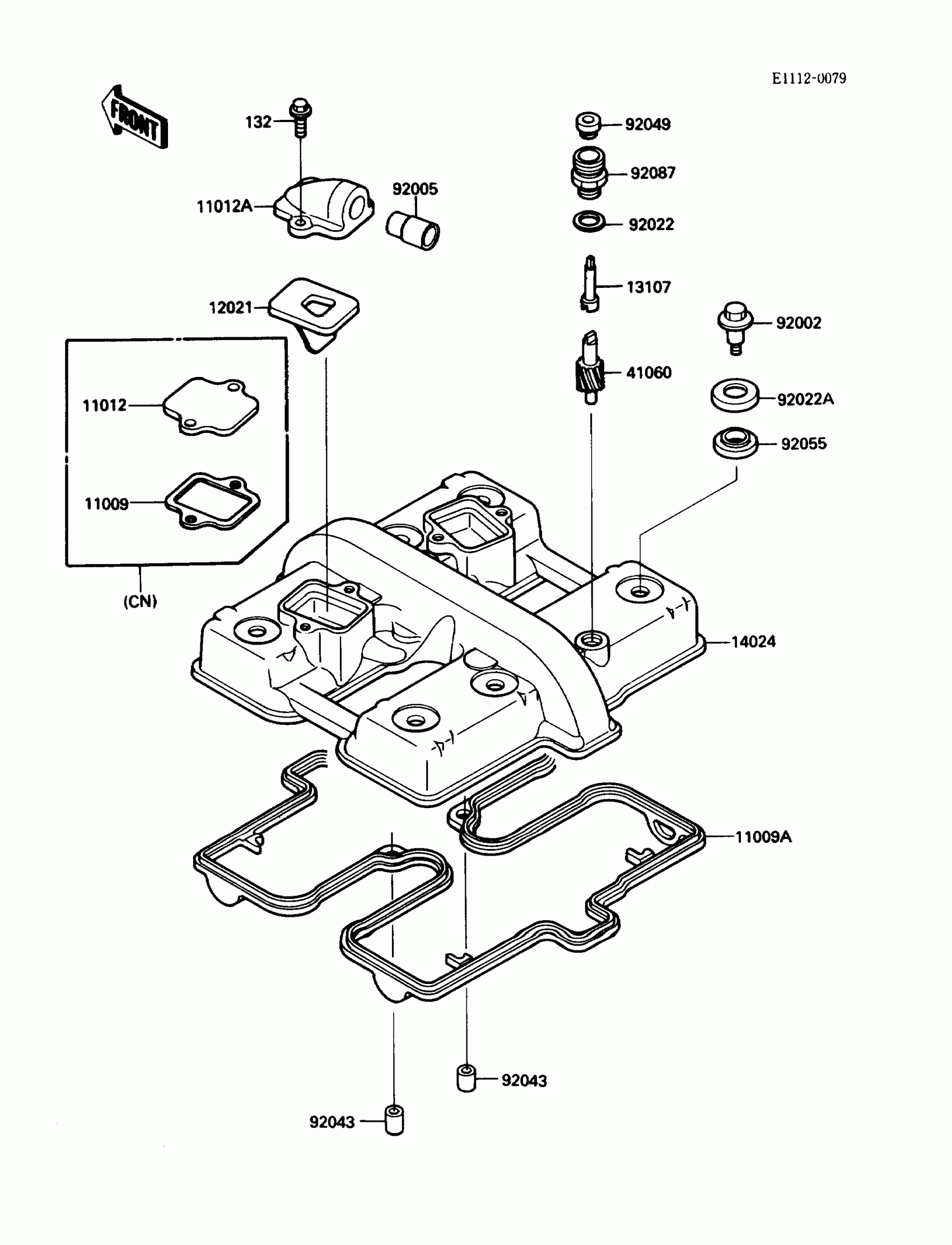

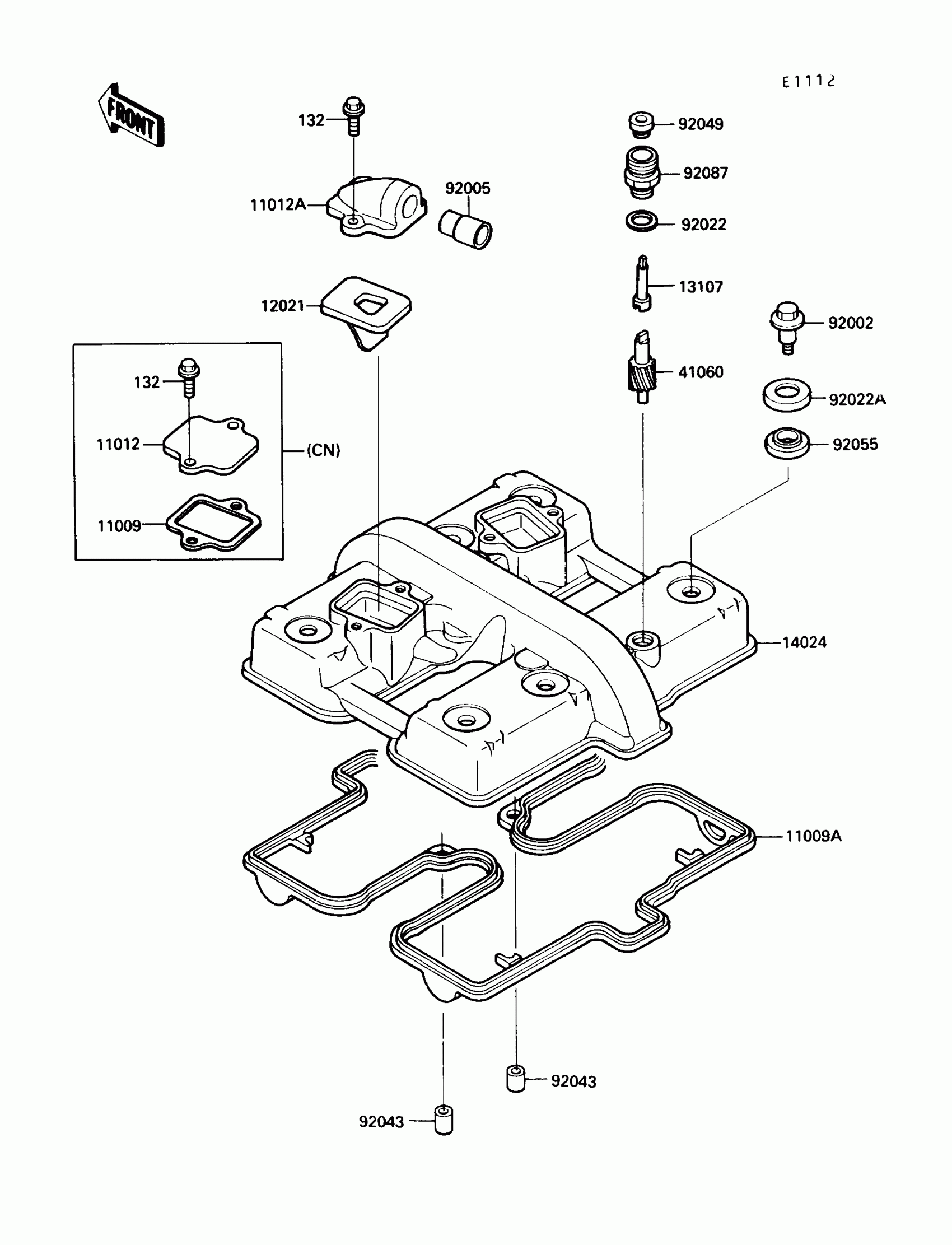

Kawasaki 454 LTD Cylinder Head Cover Diagram

Description

Price

11009

GASKET,REED VALVE

11009-1246

Unavailable

11009A

GASKET,CYLINDER HEAD COVER

11009-1483

$83.10

11012

CAP,CYLINDER HEAD COVER

11012-1212

Unavailable

11012A

CAP,REED VALVE

11012-1435

Unavailable

12021

VALVE-ASSY-REED

12021-1026

$86.96

13107

SHAFT,METER GEAR

13107-1140

Unavailable

14024

COVER,CYLINDER HEAD

14025-1702

Unavailable

41060

GEAR-METER SCREW

41060-1109

$17.78

92002

BOLT,HEAD COVER

92002-1504

$4.60

92005

FITTING,REED VALVE

92005-1006

$9.80

92022

WASHER,12X18X1.0

92022-1211

$3.92

92022A

WASHER,HEAD COVER BOLT

92022-1637

$5.78

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92049

SEAL-OIL

92050-075

$11.39

92055

RING-O,HEAD COVER BOLT

92055-1225

$7.62

92087

BUSHING-METER GEAR

92087-1053

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132E0616

$4.69
