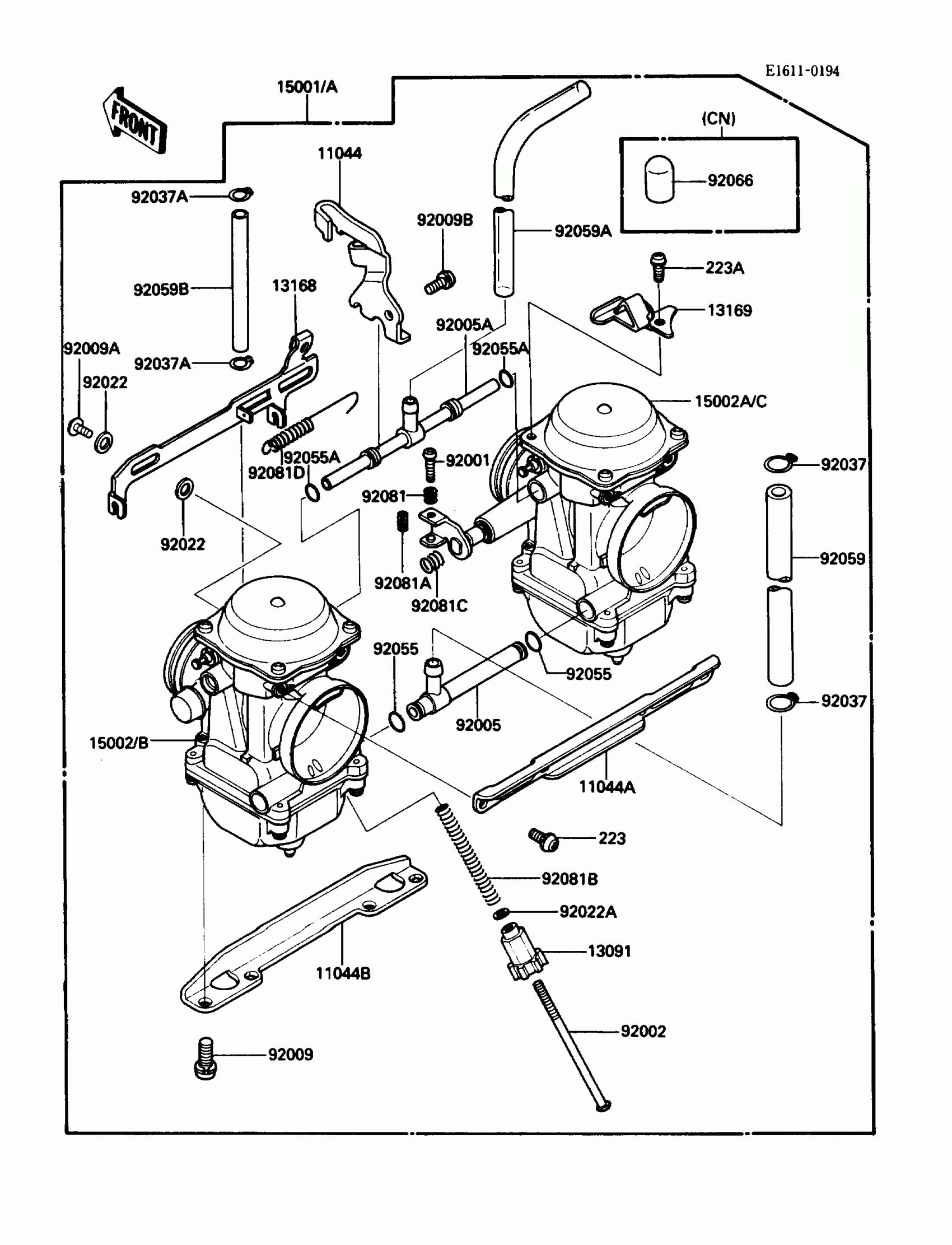

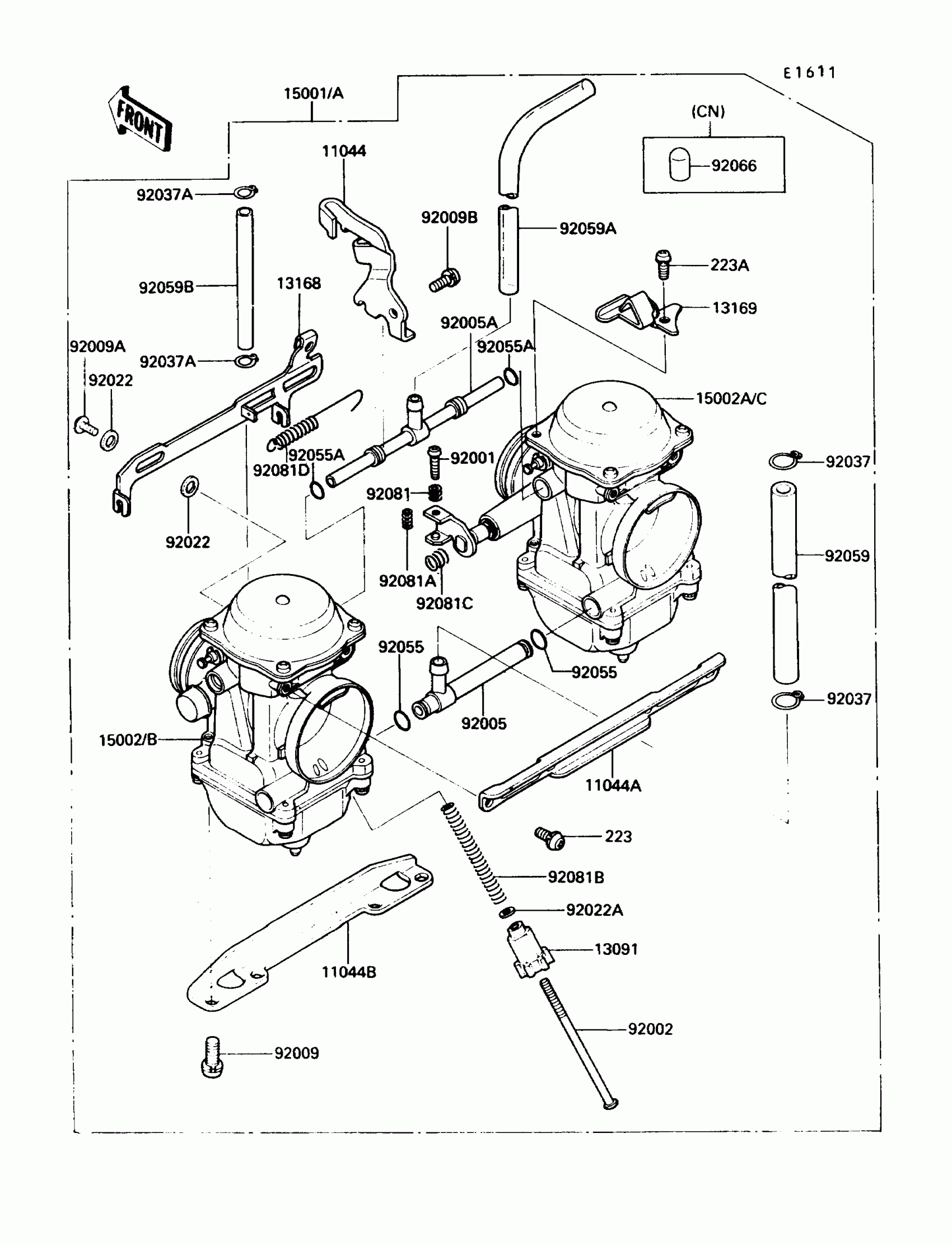

Kawasaki 454 LTD Carburetor Diagram

#

Description
Price

11044

BRACKET,THROTTLE CABLE

11044-1312

Unavailable

11044A

BRACKET,CARBURETOR STAY,UPP

11044-1313

$67.59

11044B

BRACKET,CARBURETOR STAY,6MM

11044-1314

$67.57

13091

HOLDER,THROTTLE STOP SCREW

13091-1382

$17.39

13168

LEVER,STARTER

13168-1278

Unavailable

13169

PLATE

13169-1955

Unavailable

15001

CARBURETOR-ASSY

15001-1138

$1,363.42

15001A

CARBURETOR-ASSY

15001-1179

Unavailable

15002

CARBURETOR,LH

15002-1175

$485.80

15002A

CARBURETOR,RH

15002-1176

$484.85

15002B

CARBURETOR,LH

15002-1217

Unavailable

15002C

CARBURETOR,RH

15002-1219

Unavailable

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92002

BOLT,THROTTLE STOP SCREW

92002-1552

$16.69

92005

FITTING

92005-1133

$53.04

92005A

FITTING

92005-1134

$61.04

92009

SCREW,6X16

92009-1129

Unavailable

92009A

SCREW

92009-1262

$6.61

92009B

SCREW,5X10

92009-1365

$7.34

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,FUEL TUBE

92037-1075

$3.96

92037A

CLAMP,TUBE

92037-1477

$4.31

92055

RING-O

92055-1004

$4.31

92055A

RING-O

92055-1223

$5.52

92059

TUBE,7.3X12.5X180

92059-1597

$24.32

92059A

TUBE,6.5X9.5X260

92059-1598

$33.38

92059B

TUBE,5X9X75

92059-1599

$25.03

92066

PLUG,12X25

92068-006

$4.26

92081

SPRING

92081-1620

$4.96

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081B

SPRING,THROTTLE STOP SCREW

92081-1875

$8.96

92081C

SPRING

92081-1876

$11.40

92081D

SPRING,STARTER LEVER

92081-1893

$24.32

223

SCREW-PAN-WS-CROS,5X10

223C0510

$4.12

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable
