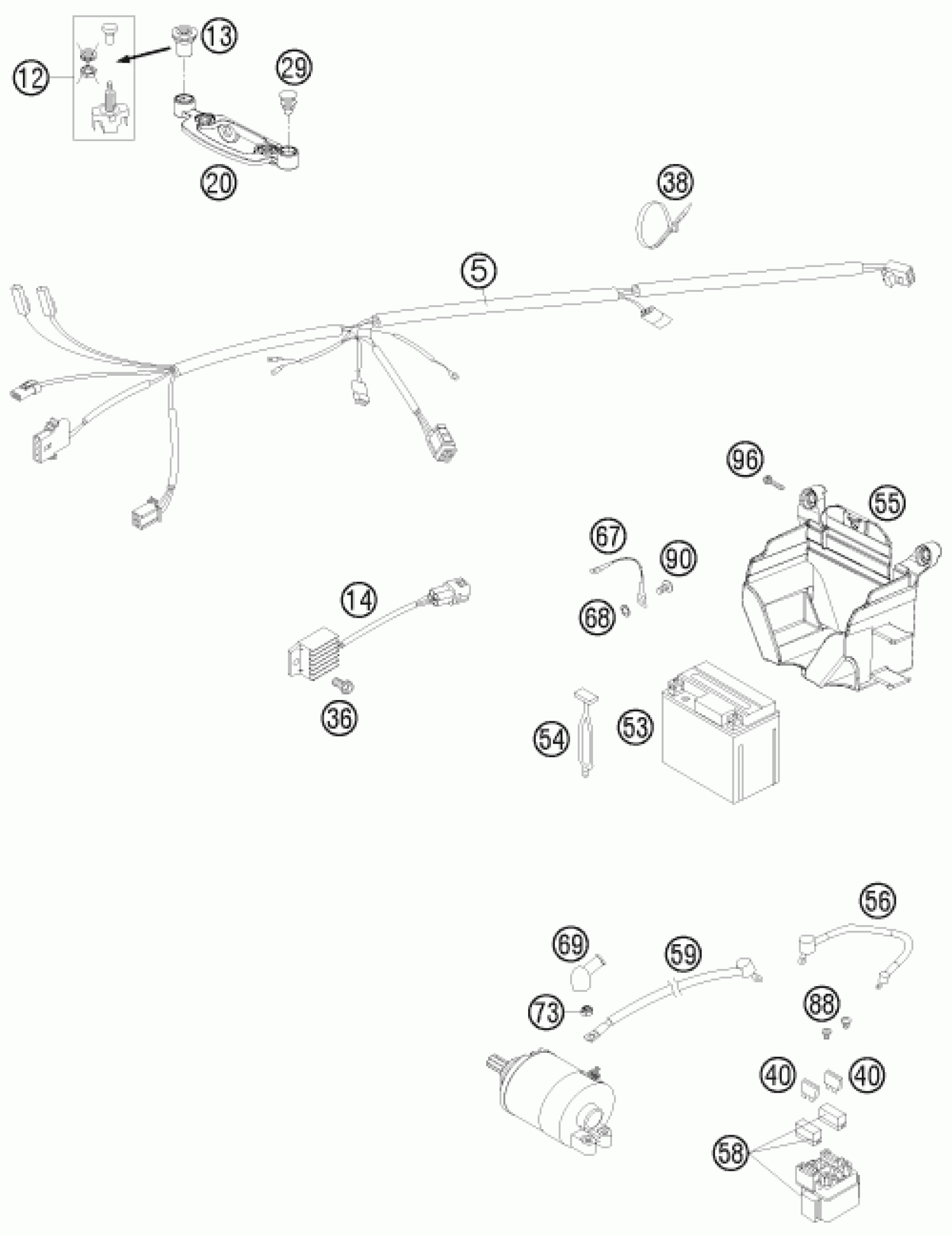

KTM 450 XCR-W 2008 WIRING HARNESS Diagram

#

Description
Price

5

WIRING HARNESS RACING USA 05

59411075100

$71.05

12

PULL SWITCH LOOSE

55011599000

$23.09

13

SPEC. NUT F. PULL SWITCH WS=17

54814060050

$5.51

14

VOLTAGE REGULATOR 04

80011034000

$99.57

20

SPEEDOMETER BRACKET 05

54814060000

$5.51

29

Plug SFL16

50210086000

$3.08

36

HH collar screw M6x12 TX30

0025060126

$3.08

38

Cable tie 200/4.6mm black

44011076200

Unavailable

38

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

40

Plug-in fuse, big 10A

58011109110

$2.05

53

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

54

RUBBER L=145MM

50303018000

$6.44

55

BATTERY CASE EXC 08

78011055000

$4.03

56

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

59

STARTERCABLE 700 MM '97

58411059100

$23.65

58

Starter reley 12V 99

58211058000

$72.64

67

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

68

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

69

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

96

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

90

SPECIAL SCREW M 5,0X10

0009050103

$2.05
