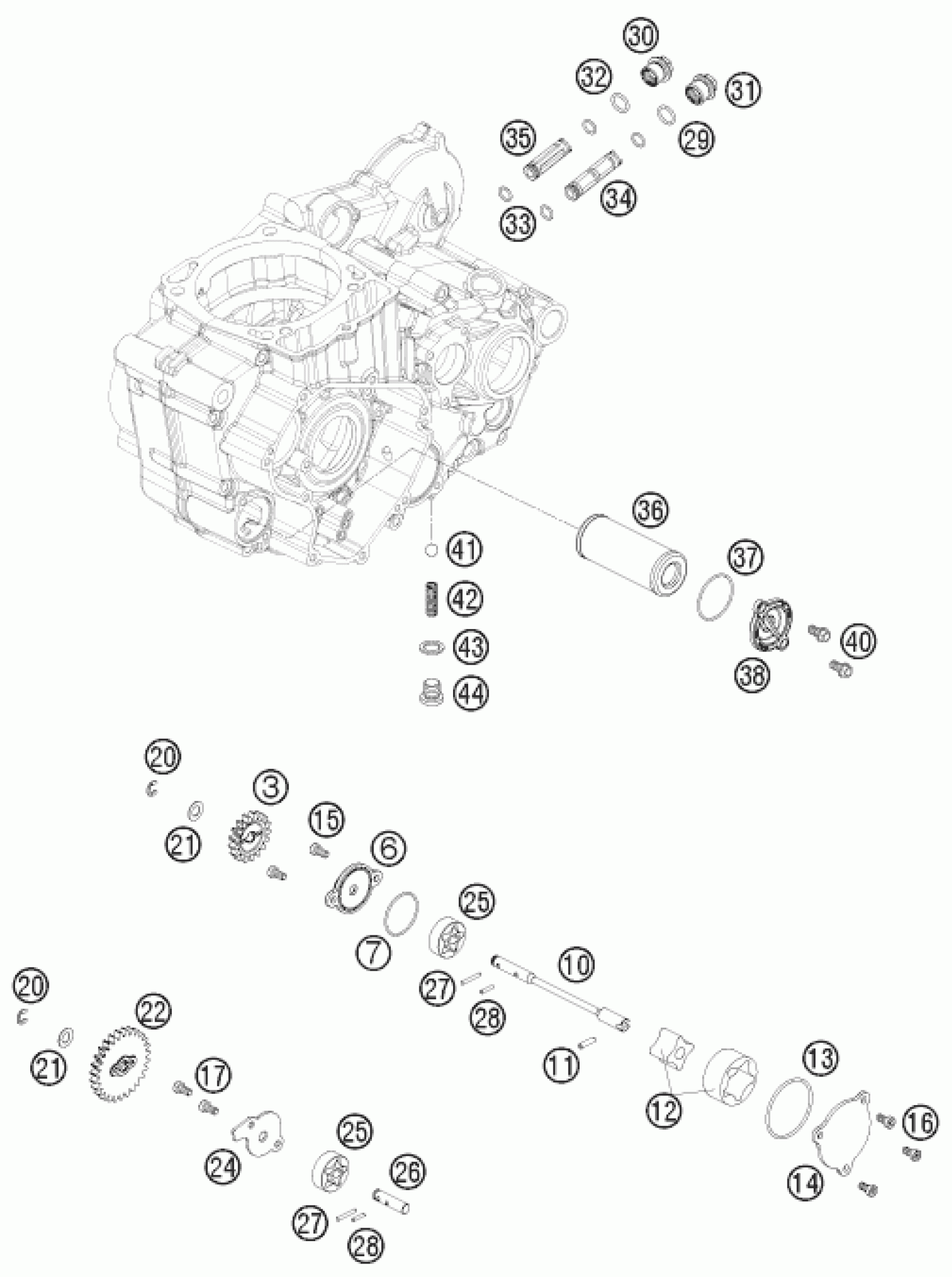

KTM 450 XCR-W 2008 LUBRICATING SYSTEM Diagram

#

Description
Price

28

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

30

SCREW PLUG M16

78038017000

$16.82

29

O-RING 12,50X2,00 NBR 70

0770125020

$2.05

31

SCREW PLUG M17

78038018000

$8.87

32

O-RING 12,50X2,00 NBR 70

0770125020

$2.05

33

O-RING 9X1,5 NBR

0770090015

$2.05

34

OIL SCREEN 12,5X56,5MM

78038015000

$11.49

35

OIL SCREEN 11,8X44,5MM

59038015000

$12.61

36

Oil Filter 07

77338005100

$9.34

37

O-RING 34X1,5 VITON

0770034015

$3.08

38

OIL FILTER COVER

77338041100

Unavailable

40

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

41

BALL DIN5401-9

0401090003

$2.05

42

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

43

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

44

threaded plug DIN 908 M12x1.5

0908120153

$4.11

3

OIL PUMP GEAR 17 T

78038001017

$5.23

6

OIL PUMP COVER CPL.

78038103133

Unavailable

7

O-RING 32,7X1,3 VITON 75SHORE

0770327013

$3.08

10

OIL PUMP SHAFT SP-PP

78038102000

$9.61

11

needle roller NRB 4x15.8 G2

0402041580

$2.05

12

ROTOR-SET 19MM 03

60038009000

$52.91

13

O-RING 44,00X2,00 VITON

0770440020

$3.08

14

OIL PUMP COVER SUCTION PUMP

78038004000

$25.61

15

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

$2.05

20

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

21

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

22

OIL PUMP GEAR 27T

78038001027

$5.23

24

OIL PUMP COVER TRANSM. PUMP

78038003000

$10.93

25

OILPUMP ROTOR CPL. 10MM G-73R

59038011010

$32.53

26

OIL PUMP SHAFT TRANSM. PUMP

78038002000

$11.40

27

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

16

CYLIND. SCR. DIN6912 M5X10 8.8

0984050103S

$1.49

17

AH SCREW DIN6912-M 5X12

0984050122

$1.49
