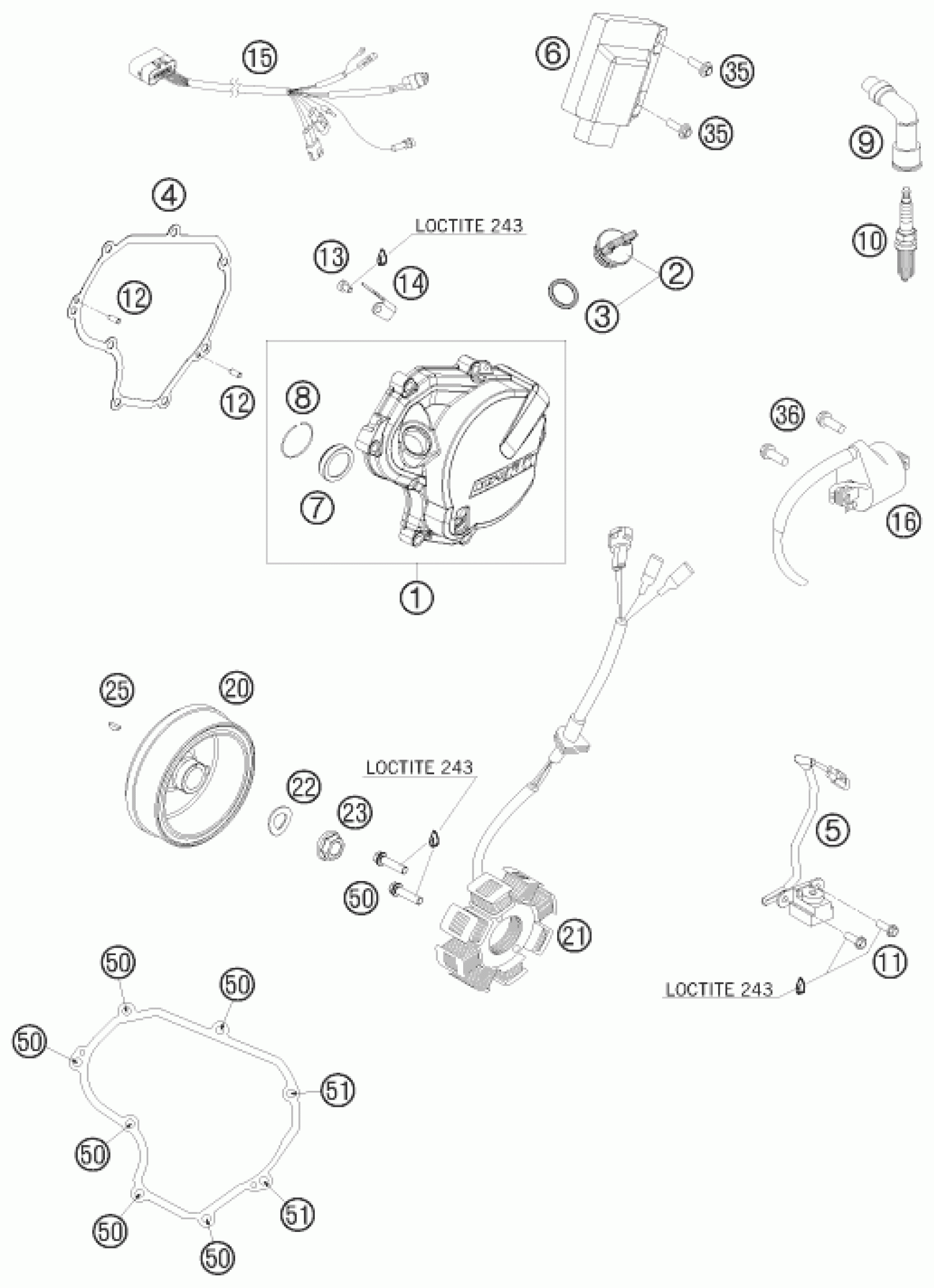

KTM 450 XCR-W 2008 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER CPL.

7803000203325

$149.68

2

oil plug cpl. M24x3

58030020100

$5.23

3

O-RING 19,00X3,00 NBR

0770191015

$2.05

4

GASKET IGNITION COVER 08

78030040000

$15.14

5

PULSER COIL KOKUSAN ''PU5165''

77339034000

$73.03

6

CDI UNIT 450 EXC-F 08

78039031000

$160.86

7

OIL LEVEL GLASS 30X8 07

78030095000

$14.02

8

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

9

SPARK PLUG CONNECT. AP-TRS1908

78039090000

$37.56

10

SPARK PLUG LKAR8A-9

78039093000

$13.46

11

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

13

FLAT HEAD SCREW DIN7991-M 4X10

0991040103S

$1.49

14

WIRING RETAINING BRACKET

78030002010

$3.74

15

WIRING HARNESS F. CDI-BOX 08

78039032000

$64.39

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

20

FLYWHEEL

78039005000

$264.60

21

STATOR HUSABERG FS/FE 04

80039004000

$242.85

22

SPRING WASHER DIN0137-B12

0137120000

$1.49

23

COLLAR NUT M12X1 R/S

49030021000

$2.05

25

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

35

COLLAR SCREW M6X12 TX

0023060123

$2.05

36

HH collar screw M6x16 TX30

0025060166

$3.08

50

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

51

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08
