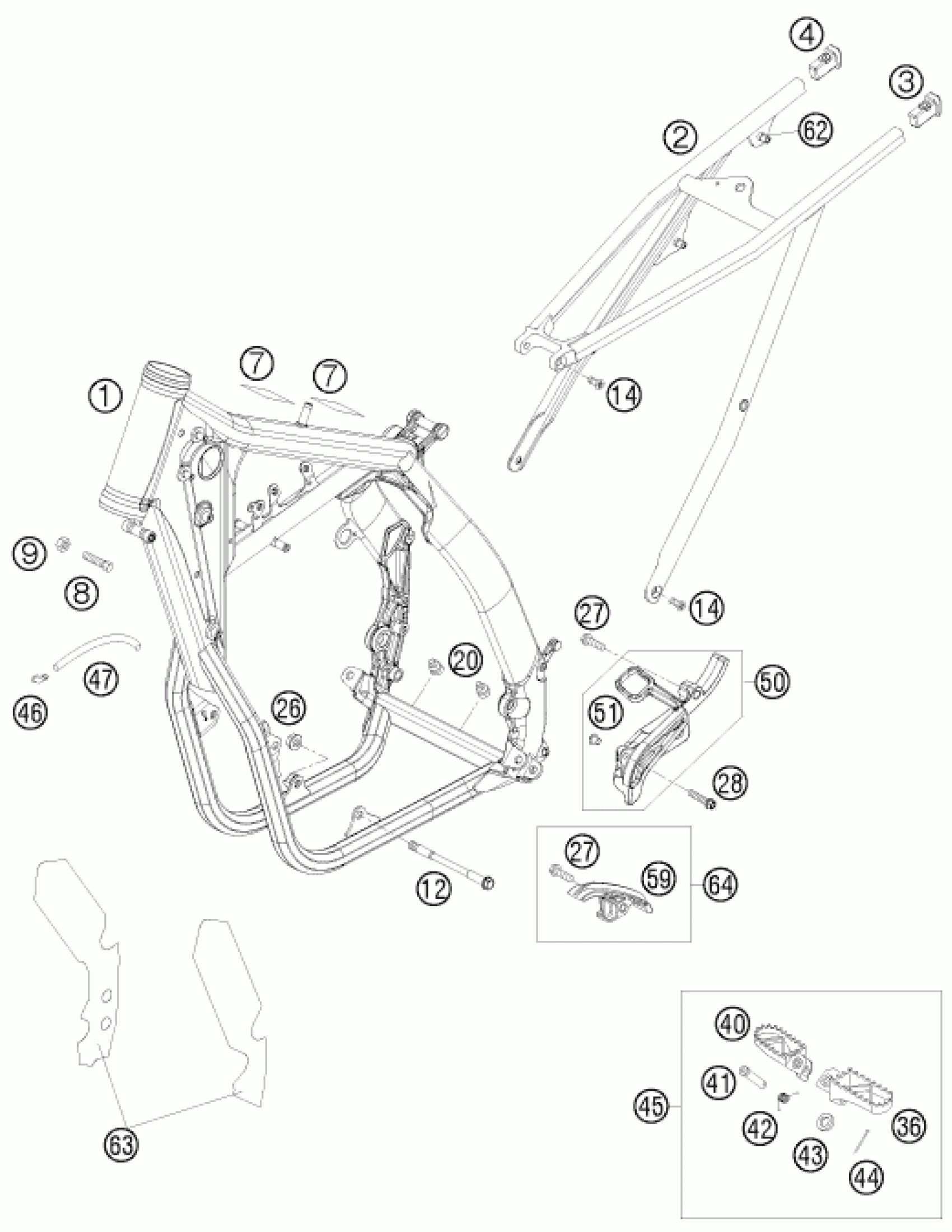

KTM 450 XCR-W 2008 FRAME Diagram

#

Description
Price

20

PLASTIC CAP SFL10

54403135000

$2.05

2

SUB FRAME SX ''Q7'' 07

77303002000

$379.79

3

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

4

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

7

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

8

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

Hexagon nut DIN934 M8

0934080003

$2.05

12

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

27

HH collar screw M8x30

0025080306

$3.08

28

HH collar screw M6x35 TX30

0025060356

$3.08

36

FOOT PEG L/S SILVER 02

59003040250

$43.66

40

FOOT PEG R/S SILVER 02

59003041250

$43.66

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

45

FOOTPEG L.+R. CPL. 03

5030314013390

$167.45

46

ANGLE PIECE '97

50303089000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

CHAIN SPR. COV. 450/525 EXC-F

78003096000

$13.94

51

spacer bushing for speedometer

58314060050

$5.23

59

Chain sliding piece, bottom

77303053000

$9.44

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

63

FRAME PROTECTION STICK. SET 07

77303094000

$33.65

64

CHAIN SLIDING KIT BELOW CPL07

77303053010

$11.49

1

FRAME XCF-W ''DB08''

7800300100030

Unavailable
