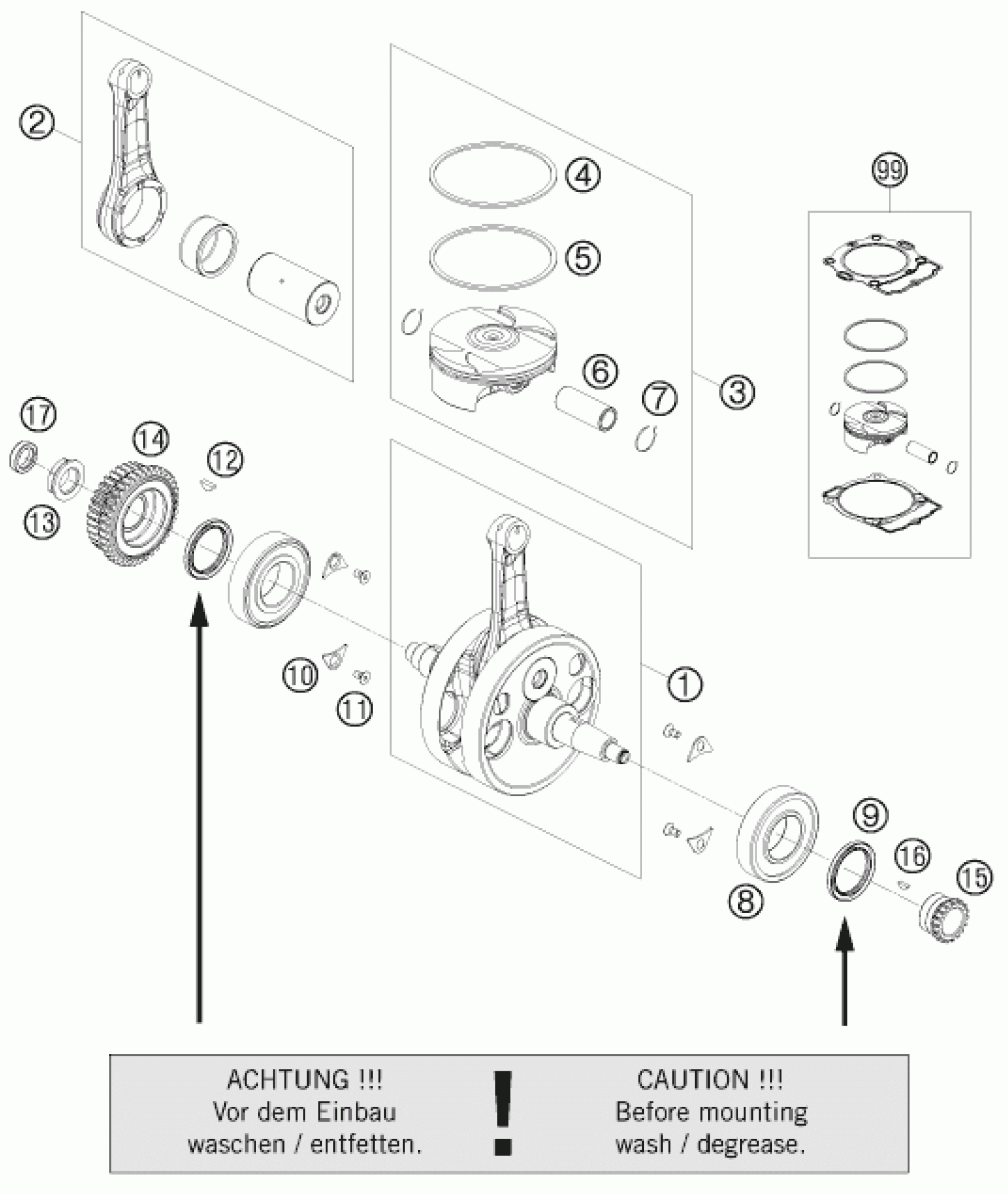

KTM 450 XCR-W 2008 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. 08

78030018100

$562.48

2

CONNECT. ROD REPAIR 450 08

78030015044

$357.73

3

PISTON CPL.

78030007200 I

$441.69

4

COMPRESSION RING 08

78030030000

$40.26

5

OIL SCRAPER RING 08

78030032000

$52.26

6

PISTON PIN 08

78030033000

$63.00

7

CIRCLIP

77330074000

$13.08

8

BALL BEARING 6207 TM-SX07E 39

0625062071

$52.82

9

SHAFT SEAL RING 35X47X4,5

07603547451

$13.64

10

RETAINING PLATE F. CS BEARING

75030085000

$1.49

11

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

12

woodruff key DIN 6888 4x5x13

0888040050

$4.11

13

NUT PRIMARY WHEEL 08

78030029000

$10.09

14

PRIM. WHEEL W. FREEWHEEL CPL.

78032032200

Unavailable

17

radial shaft seal 14x24x6 B

0760142460

$9.25

3

PISTON CPL.

78030007200 II

$229.61

15

TIMING GEAR

78036014000

$29.10

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

99

PISTON KIT GR.I 450 EXC 08-11

00050000030

Unavailable

99

PISTON KIT GR. II 450EXC 08-11

00050000214

Unavailable
