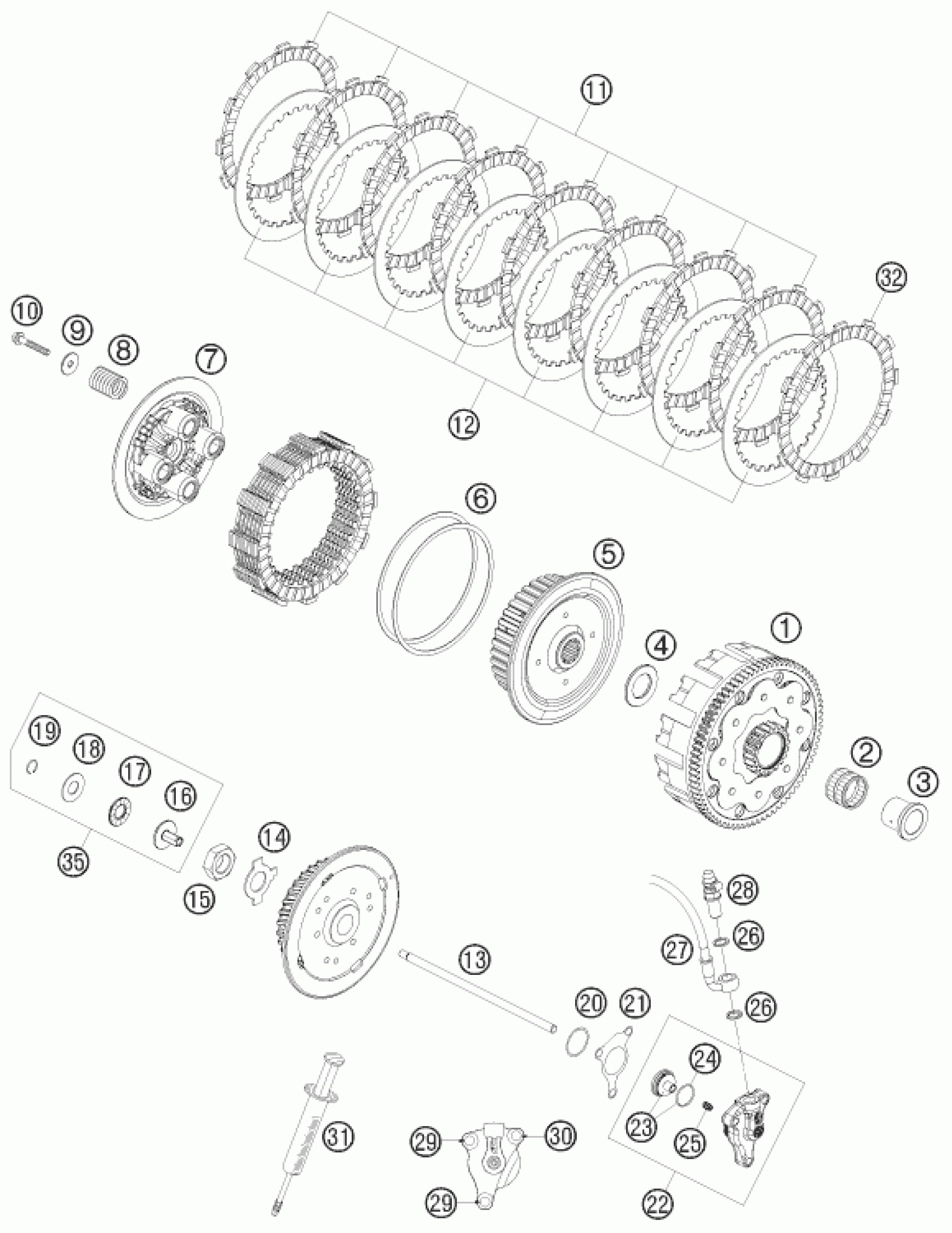

KTM 450 XCR-W 2008 CLUTCH Diagram

#

Description
Price

35

PRESSURE PIECE CPL.

77332057144

$24.02

8

CLUTCH SPRING 08

78032005000

$12.05

9

WASHER 6,2 X 20 X 2 '99

58432006000

$2.65

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

LINING DISC 08

78032011000

$37.11

12

STEEL DISC 08

78032010000

$13.27

13

PUSH ROD 08

78032054000

$10.01

17

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

18

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

19

CIRCLIP DIN7993-RW12

0993012000

$3.08

20

O-ring 30x1.5 NBR 70

0770300015

$2.05

21

GASKET FOR SLAVE CYLINDER

59032065000

$5.60

22

OUTPUT CYLINDER CPL. 06

54832061044

$137.44

23

PISTON CPL.

54832066000

$68.43

24

O-RING

54832067000

$3.08

25

PRESSURE SPRING

54832069000

$12.05

26

sealing ring DIN 7603 10x14x1

0603100141

$2.05

27

CLUTCH PIPE 06

54832063000

$100.32

28

BLEEDER HOLLOW SCREW M10X1

54813020000

$27.48

29

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

30

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

31

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

32

LINING DISC TURNED OFF

78032111000

Unavailable

14

RETAINING PLATE

77332018000

$4.11

15

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

1

CLUTCH CAGE CPL. 08

78032001000

$624.01

2

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

3

INNER RING

78032015000

$27.48

4

STOP DISC 08

78032020000

$10.18

5

INNER CLUTCH HUB 08

78032002000

Unavailable

6

JUDDER SPRING CPL.

78032009000

$46.18

7

PRESSURE PLATE 08

78032003000

$113.03

16

PRESSURE PIECE

77332057100

$13.36
