Description

Price

1

Main wiring harness US Comp. o

A49011275000

$333.97

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

8

Offroad-control-unit 1.0

A49011033033

$134.26

9

Voltage regulator

A49011034000

$131.17

16

Ground wire

75011097100

$10.18

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

Roundhead screw w/ Tx M6x12 mm

0900000601202

$1.49

19

Self lock. nut DIN985-M6-A2

0985060003

$2.05

20

Protection cap for starter eng

77240099000

$6.35

21

Starter cable

A46011059000

$15.33

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 20A

58011109120

$1.49

25

Battery cable cmpl.

A46011059050

$23.65

26

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

29

Oval head screw AH socket M6x1

0738060167

$1.49

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

31

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

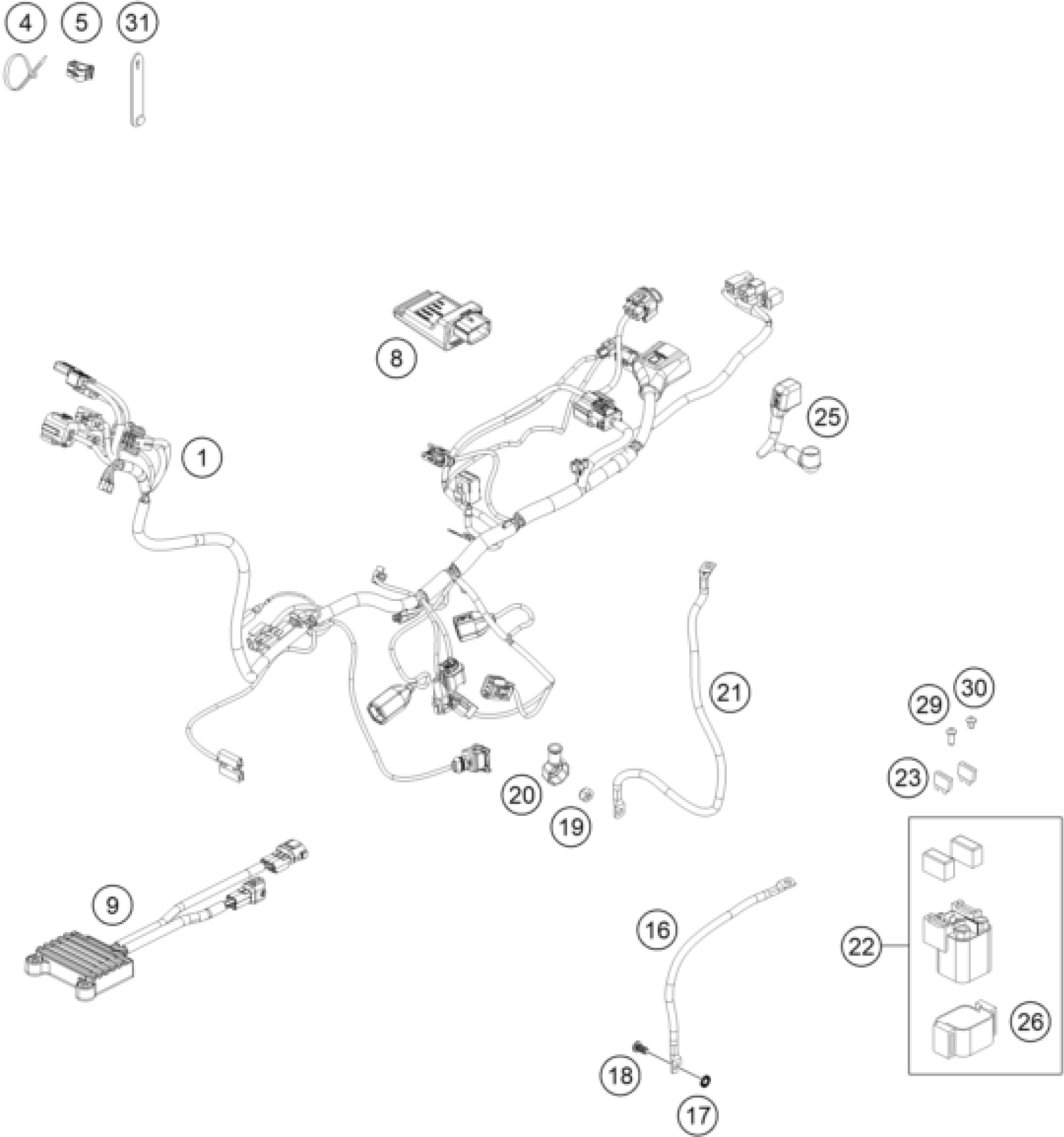

KTM 450 XCF-W 2026 WIRING HARNESS Diagram

Main wiring harness US Comp. o

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK

Line guide

Offroad-control-unit 1.0

Voltage regulator

Ground wire

CONTACT WASHER M6 VSV-K6

Roundhead screw w/ Tx M6x12 mm

Self lock. nut DIN985-M6-A2

Protection cap for starter eng

Starter cable

Starter reley 12V 99

Plug-in fuse, big 20A

Battery cable cmpl.

BRACKET RUBBER F.STARTRELAY 07

Oval head screw AH socket M6x1

Oval head screw ISO 7380 M 6X8

RUBBER CABLE TIE 75MM 03
