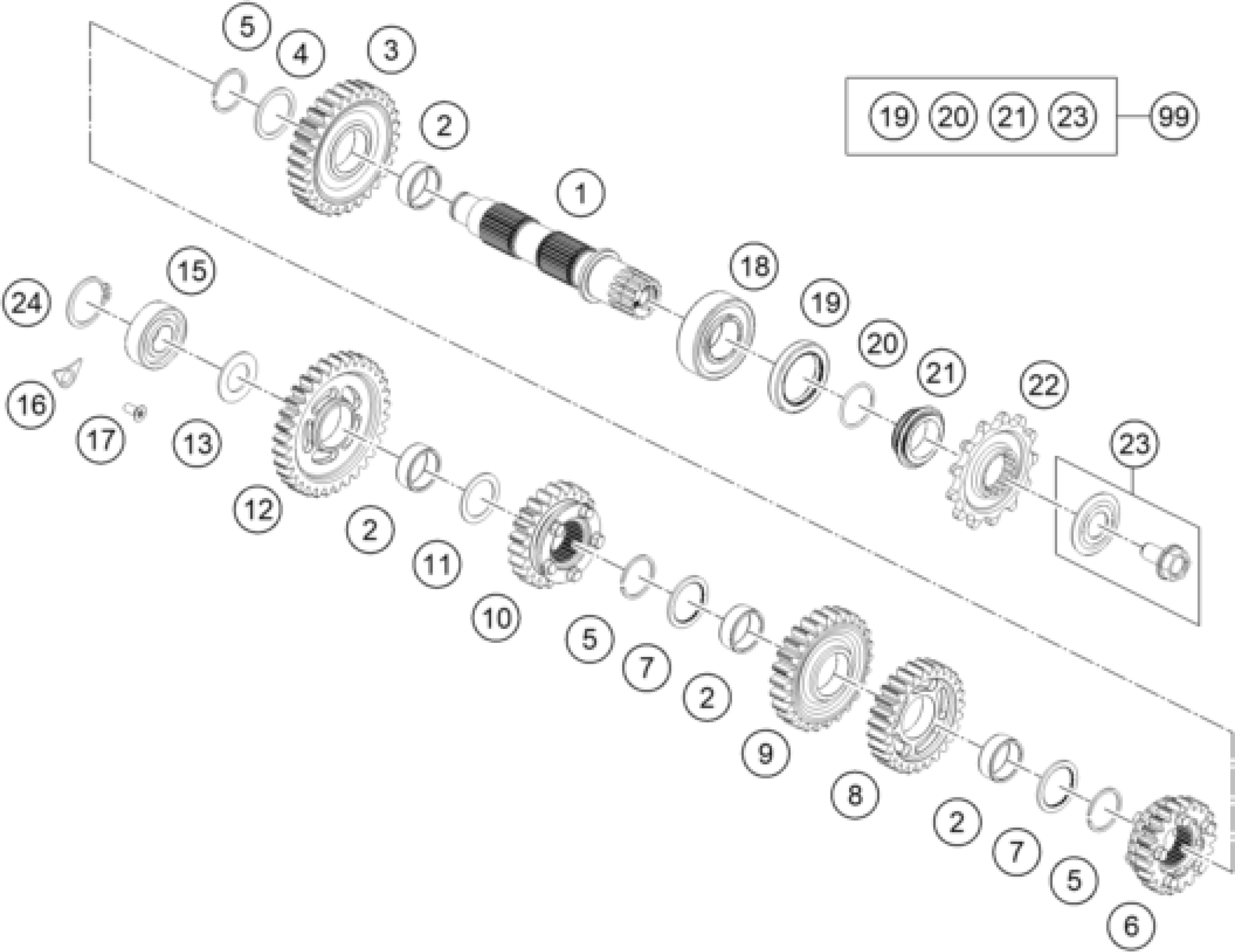

KTM 450 XCF-W 2026 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Countershaft

A46033510000

$166.89

2

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

3

Idler gear 2nd gear, teeth=30

A46033512000

$77.22

4

STOP DISC 25X31X1,5

54833044000

$5.23

5

CIRCLIP WS24

0417024000

$2.05

6

Sliding gear 6th gear, teeth=2

A46033516000

$132.29

7

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

8

Idler gear fourth-gear, teeth=

A46033514000

$88.16

9

Idler gear third-gear, teeth=2

A46033513000

$89.47

10

Sliding gear fifth-gear, teeth

A46033515000

$122.01

11

STOP DISK 22,2X28X1 C

50333042000

$5.23

12

idler gear 1 st.

A46033511000

$77.32

13

STOP DISK 17,2X30X1,3

77233020000

$4.11

15

Ballbearing NTN 6203JR2CM21

0625062038

$8.59

16

RETAINING PLATE F. CS BEARING

75030085000

$1.49

17

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

18

cylindrical roller bearing NJ2

49030023000

$74.42

19

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

20

O-RING 25,12X1,78 NBR70

0770020220

$3.08

21

SPACER SLEEVE COUNTER

78133014000

$28.42

22

Sprocket 13-t

79233029013

$30.94

22

Sprocket 14-t

79233029014

Unavailable

23

SCREW 10.9+SPRING WASHER

59033034044

$7.85

24

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
