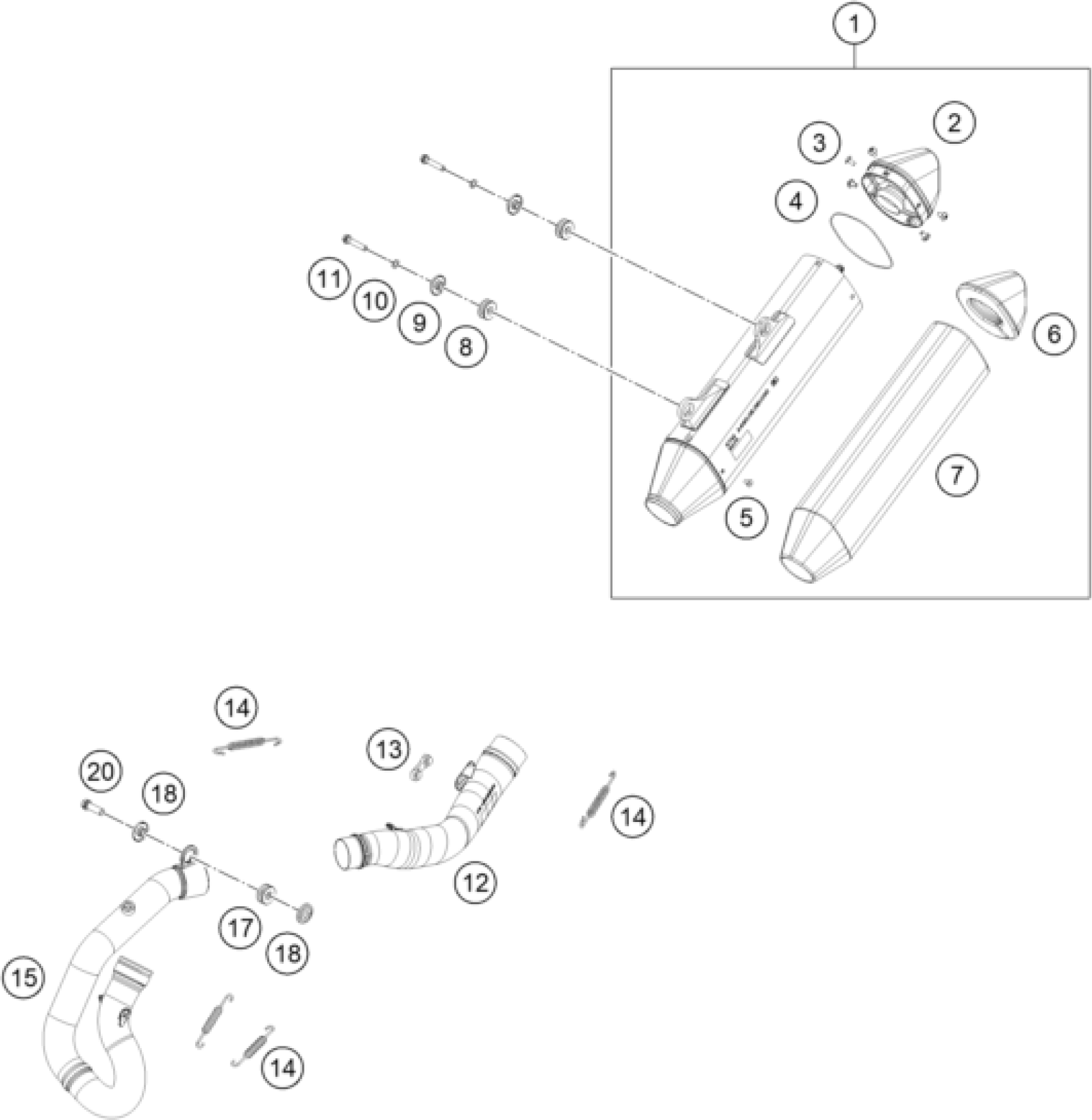

KTM 450 XCF-W 2026 EXHAUST SYSTEM Diagram

#

Description
Price

1

Silencer

A49005082000

$652.06

2

endcap cpl.

A49005082060

$152.77

3

SCREW TORX M5X10

78105081010

$2.05

4

O-RING 80,00X2,00 VITON

0770800021

$6.91

5

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

6

Rockwool preformed

A46005078080

$16.63

7

insulating material formed par

79105081085

$64.23

8

DAMP. COMPON. BLACK

77205068000

$6.54

9

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

10

Pair of washers M6 NORDLOCK

50233041000

$4.11

11

HH collar screw M6x30 TX30

0025060306

$3.08

12

exhaust manifold rear

A49005010000

$144.08

13

exhaust spacer

79105098000

$5.51

14

Tension spring L=62mm

A46005016000

$4.57

15

Manifold EXC / FE 450

A48005109000

$222.43

17

Damper gray

79105068000

$8.03

18

BUSHING 8.5x12x28x8.3

77805069000

$5.98

20

HH collar screw M8x20

0025080206

$2.05
