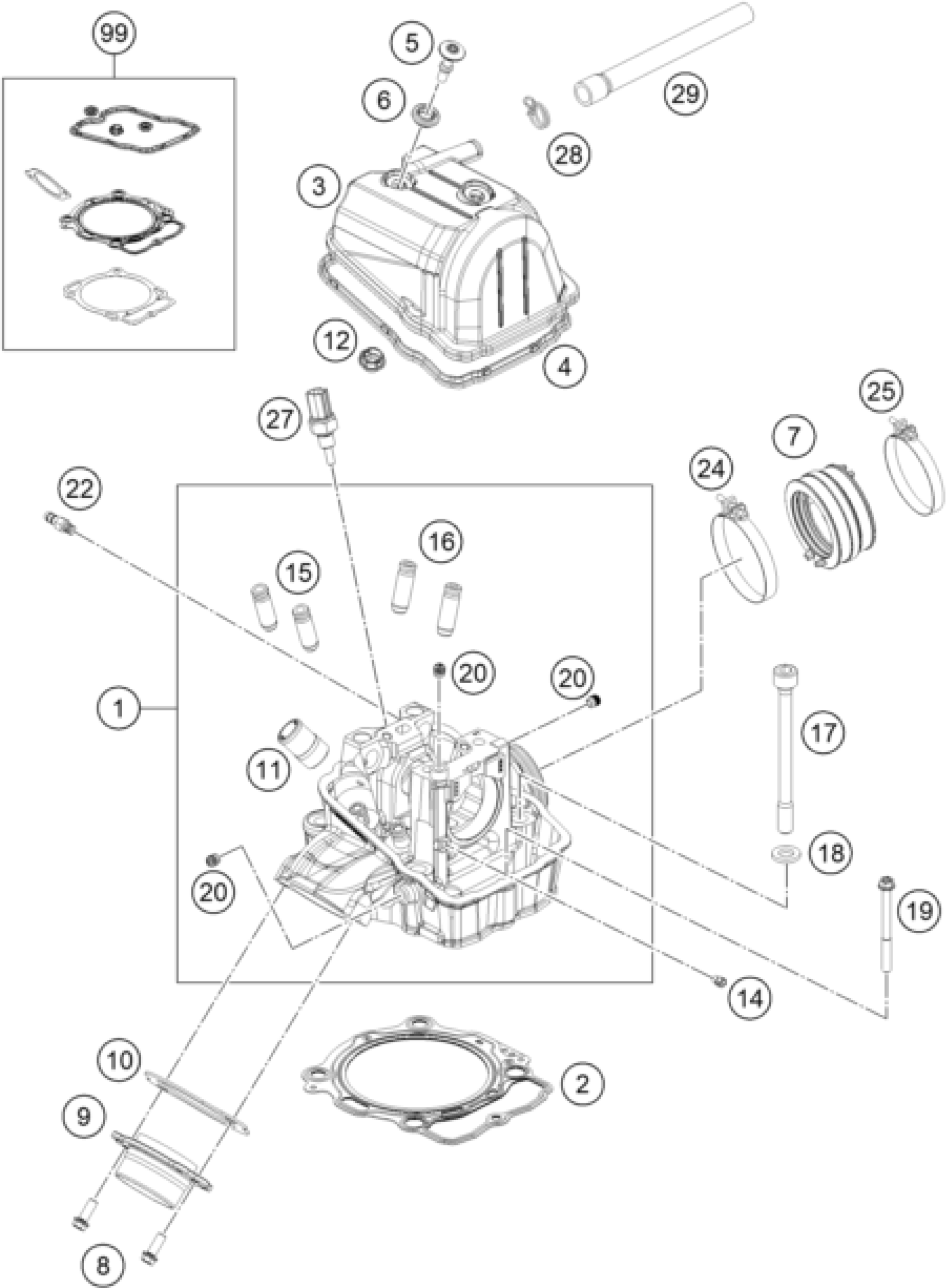

KTM 450 XCF-W 2026 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cmpl.

A48036520144

$528.92

2

CYLINDER HEAD GASKET (DN95)

79430036010

$76.19

3

Valve cover

A48036052000C1

$26.92

4

Valve cover seal

A48036053000

$6.91

5

Valve cover screw

79136054000

$2.05

6

Rubber seal for collar screw

79136054050

$5.23

7

rubber sleeve

79536044000

$28.60

8

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

9

Exhaust system flange

78136139100

$36.55

10

Exhaust gasket

79536041000

$3.08

11

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

12

valve cover gasket

79536053150

$3.08

14

oil jet 70 M5

60030063070

$8.59

16

valve guide intake

79536125001

Unavailable

17

Cylinder head bolt

79530044000

$5.60

18

washer 19x10.5x2.5

77336089010

$4.11

19

HH COLLAR SCREW M6X75 TX30

0025060756

$3.08

20

SCREW PLUG

59030296000

$6.26

24

Hose clamp GEMI 63mm 05

61036047000

$7.56

25

Hose clip GEMI 58

77236048000

$12.05

27

water temperature sensor

79435047000

$23.74

28

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

29

Engine vent hose

A49030087000

$14.86

99

gasket kit cylinder MX 450

A48030097000

Unavailable

22

Vacuum fitting M6

60036123000

$9.53

15

valve guide outlet

79536126001

Unavailable
