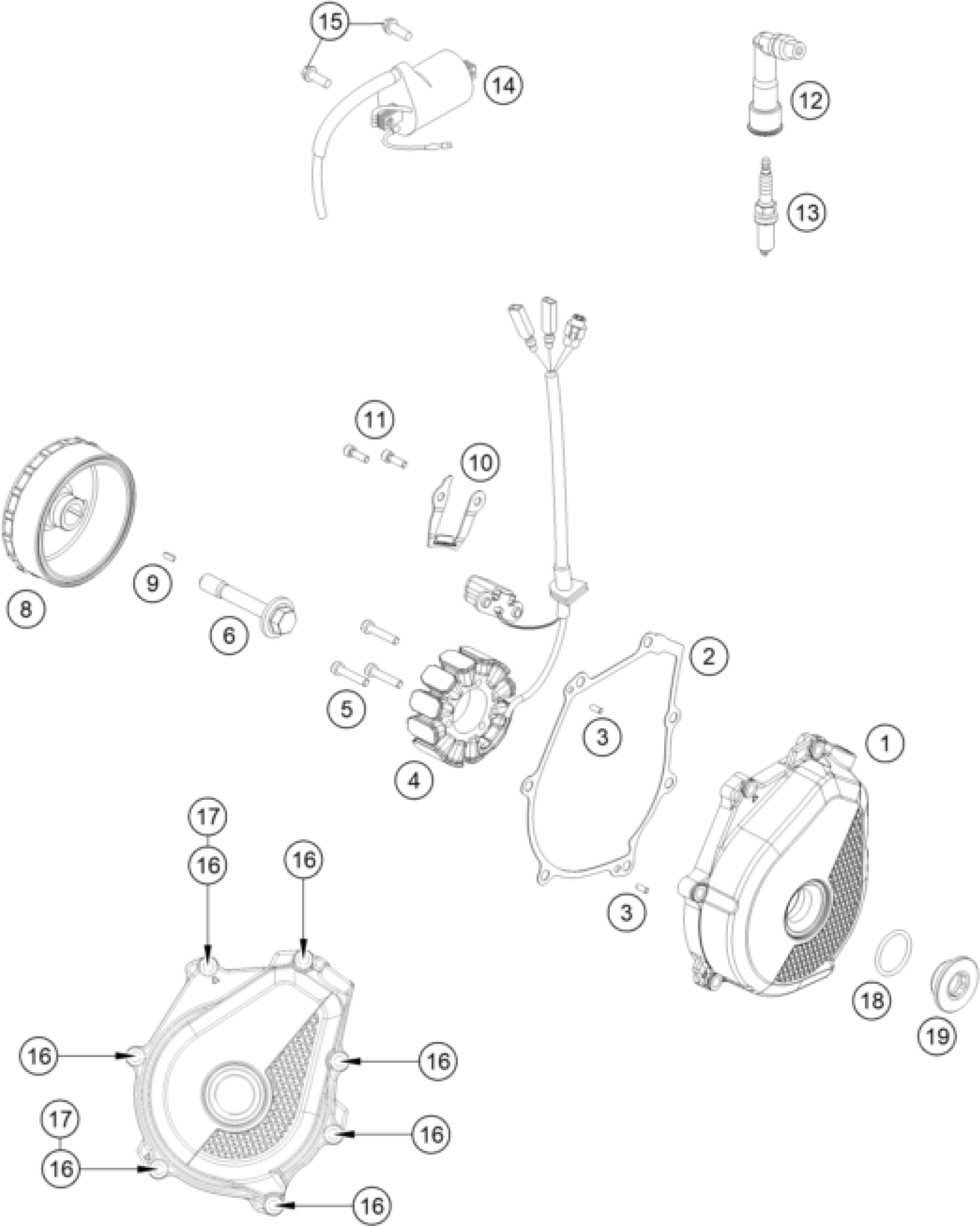

KTM 450 XCF-W 2024 IGNITION SYSTEM Diagram

#

Description
Price

1

Ignition cover

A48030502000C1

$93.96

2

Ignition cover gasket

A48030040000

$8.03

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

4

Stator

79239104100

$226.73

5

Cap head screw DIN 6912 - M5x3

0012050303S

$1.49

6

FLYWHEEL SCREW

77339010100

$5.60

8

Rotor

78039205100

$158.38

9

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

10

Cable retainer

A46030502050

$4.11

11

Cap head screw DIN912 - M5x16

0912050163S

$1.49

12

Spark plug connector

79539090000

$51.23

13

Spark plug

79739093000

$36.18

14

Ignition coil

58439006000

$75.45

15

HH collar screw M6x20 TX30

0025060206

$3.08

16

HH collar screw M6x25 TX30

0025060256

$3.08

17

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

18

o-ring 24.00x2.50 Viton

07700240251

$3.08

19

SCREW PLUG M24X1,5

7723000216030

$36.64
