Description

Price

1

fork KTM 450/500 EXC-F/XCF-W 2

A490C169X402000

$2,000.09

2

Fork protection kit Enduro 202

A46001094000EBE

$71.39

3

Clamp for brake line

77701085100EB

$5.23

4

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

5

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

6

bottom triple clamp X=22mm

A49001032022

$220.46

7

HH collar screw M8x50 TX40

0025080506

$3.08

8

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

9

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

10

Steering head seal

A46001086000

$22.43

12

AH collar screw M10x50 ISA45

0035100509S

$7.10

13

Rigid handlebar clamp bushing

A46001038010

$5.70

14

upper triple clamp

A49001034022

$159.04

15

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

16

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

17

Collar screw M20x1.5 SW17 Al

A46009082000

$3.08

18

Handlebar mount D28 mm-H41 mm

A48001139041

$98.17

19

HANDLEBAR CLAMP 28MM

79001038000

$69.37

20

HH collar screw M8x25

0025080256

$2.05

98

Handlebar mount kit d28mm-h41m

A49001039010

Unavailable

99

Repair Kit steering head beari

A46001081044

Unavailable

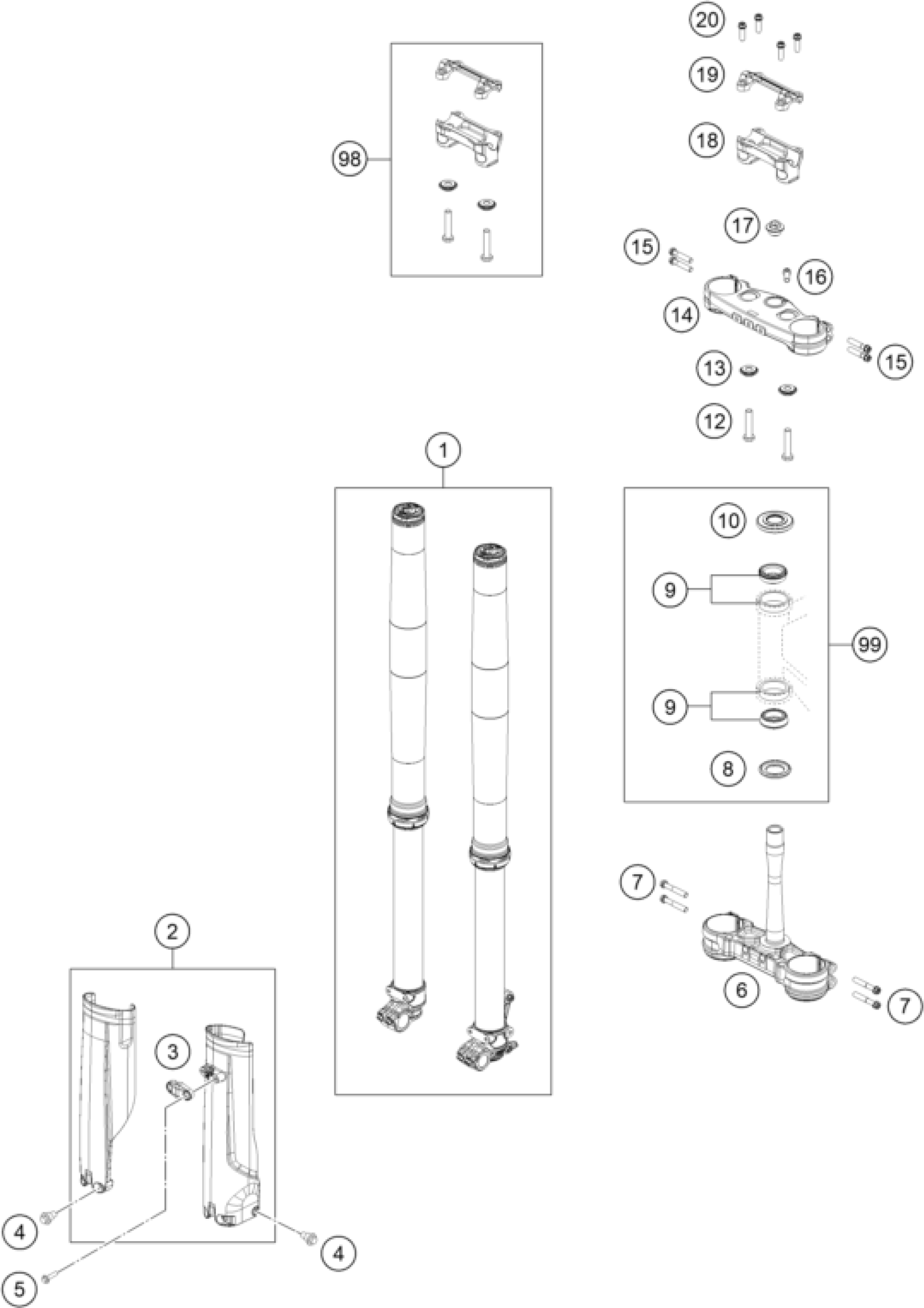

KTM 450 XCF-W 2024 FRONT FORK, TRIPLE CLAMP Diagram

fork KTM 450/500 EXC-F/XCF-W 2

Fork protection kit Enduro 202

Clamp for brake line

SPECIAL SCREW M6X12,5 WS=8

SCREW F. PLASTIC K60X20AL SW6

bottom triple clamp X=22mm

HH collar screw M8x50 TX40

O-RING SUPPORT W. SEALING LIP

TAPERED ROLLER BEARING CPL. 06

Steering head seal

AH collar screw M10x50 ISA45

Rigid handlebar clamp bushing

upper triple clamp

HH COLLAR SCREW M8X40 TX40

HH COLLAR SCREW M8X25 WS=10

Collar screw M20x1.5 SW17 Al

Handlebar mount D28 mm-H41 mm

HANDLEBAR CLAMP 28MM

HH collar screw M8x25

Handlebar mount kit d28mm-h41m

Repair Kit steering head beari
