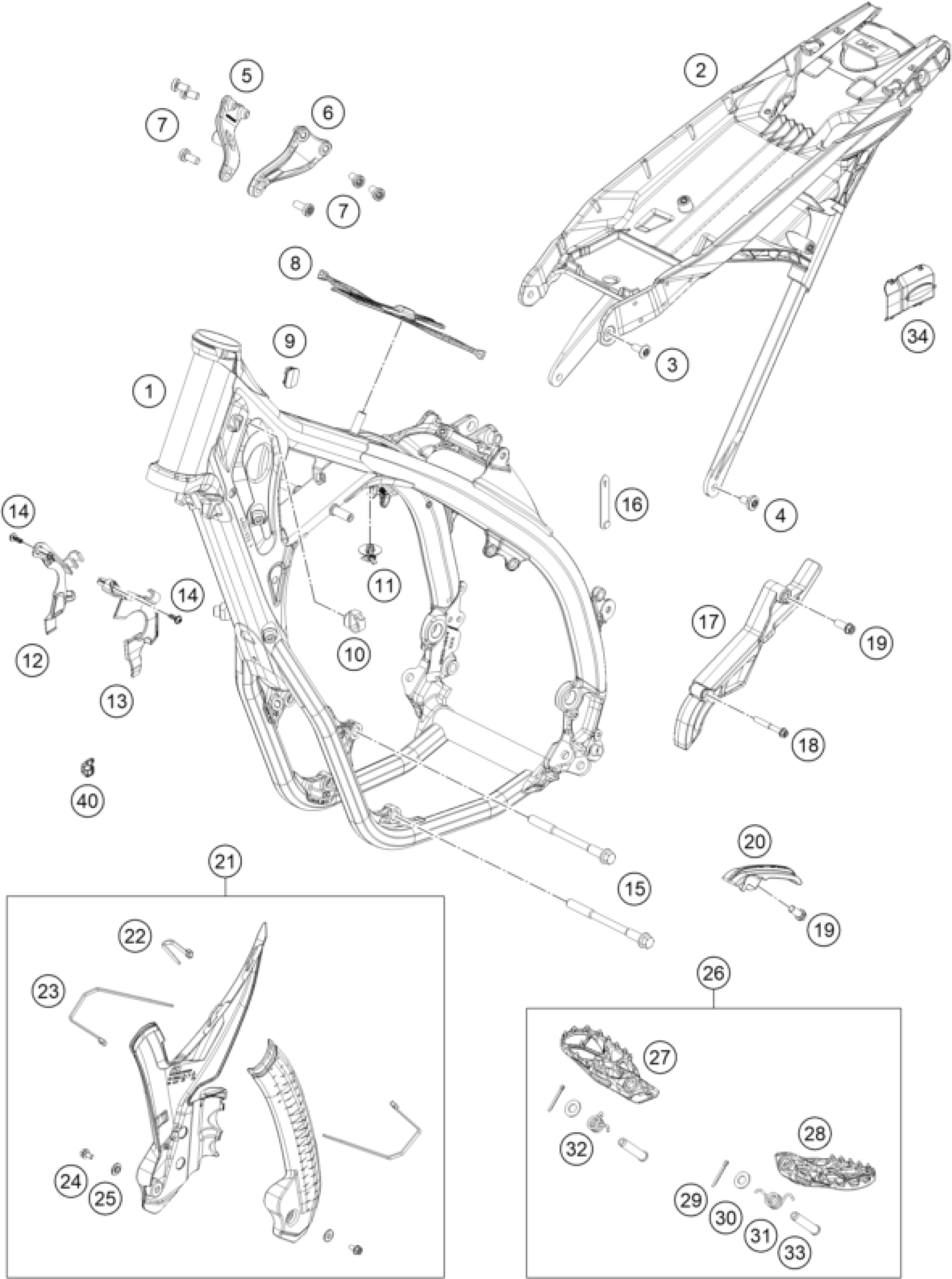

KTM 450 XCF-W 2024 FRAME Diagram

#

Description
Price

1

Frame

A49003001000C1

$1,660.93

2

Subframe

A46003002000

$186.43

3

Special screw M8X18 TORX45 SL

79003003000

$3.08

4

Special screw M8x16 ISA45 self

09000008016U0

$1.49

5

Engine brace, right

A46003014000

$37.58

6

Engine brace left

A46003013000

$36.08

7

SHCS M8x20 TX45

0035080206S

$5.32

8

Tank support rubber

A46007012000

$9.90

9

Cover control head sheet

79111013010

$2.05

10

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

11

Cable bracket d8

79711013010

$1.49

12

Cable bracket/throttle cable g

A46003099020

$4.11

13

Cable bracket

A46003099010

$4.11

14

EJOT PT screw K50x14

0081050141

$1.49

15

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

16

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

17

Front sprocket cover

A46003096000

$13.64

18

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

19

HH collar screw M8x20

0025080206

$2.05

20

Chain slider below

A46003053000

$6.35

21

Frame protection set

A46003094000C1

$37.20

22

cable tie 140/ 3,5 mm Schwarz

44011176140

Unavailable

23

Cable tie 200/4.6mm black

44011076200

Unavailable

24

HH collar screw M5x10 TX30

0025050106

$1.49

25

Bush f. frame protection 03

54803092060

$4.11

26

Footpeg set

A46003137033

$127.81

27

Footpeg right

A46003141000

$78.91

28

Footpeg left

A46003140000

$78.91

29

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

30

washer DIN 125 A 10.5

0125100003

$2.05

31

Footrest spring left

A46003044000

$1.49

32

Footrest spring right

A46003045000

$1.49

33

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

40

Cable protection

A49003099030

$4.39

34

Intake air cover

A49003002050

$12.80
