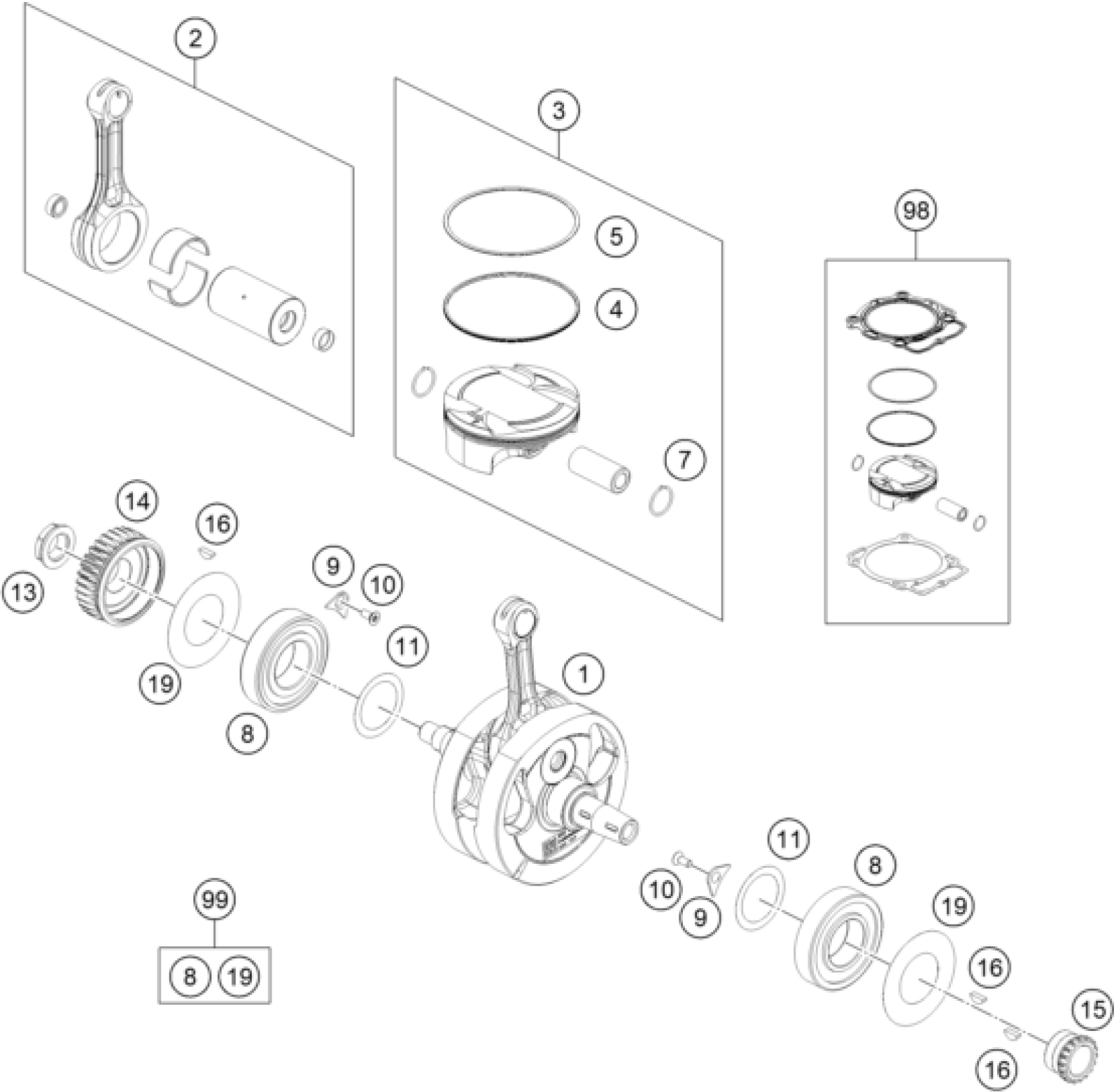

KTM 450 XCF-W 2024 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Crankshaft cmpl.

A48030518000

$1,025.50

2

Connecting rod rebuild kit

A48030515044

$589.04

3

piston I cpl. D95mm

79530607000 I

$493.16

3

piston II cpl. D95mm

79530607000 II

$493.16

4

Oil scraper ring

79430132000

$112.45

7

CIRCLIP

79430174000

$14.10

8

CYLINDER ROLLER BEARING NJ207

79430082000

$91.06

9

RETAINING PLATE F. CS BEARING

75030085000

$1.49

10

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

11

SHIM WASHER 36X48X0,10

56530081000

Unavailable

11

SHIM WASHER 36X48X0,15

56530081100

Unavailable

11

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

11

SHIM WASHER 36X48X0,30

56530081300

Unavailable

13

Nut M18x1.5 Precote

0910001801000S

$4.29

14

Primary gear 29 teeth

A48032023029

$86.76

15

Timing gear 18 teeth

78036014400

$46.55

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

19

BEARING SEAL

79430084000

$7.00

98

Piston kit size I 450 Enduro

79530607110 I

Unavailable

98

Piston kit size II 450 Enduro

79530607110 II

Unavailable

99

Crankshaft repair kit

79430018088

Unavailable

5

COMPRESSION RING

79430130000

$70.97
