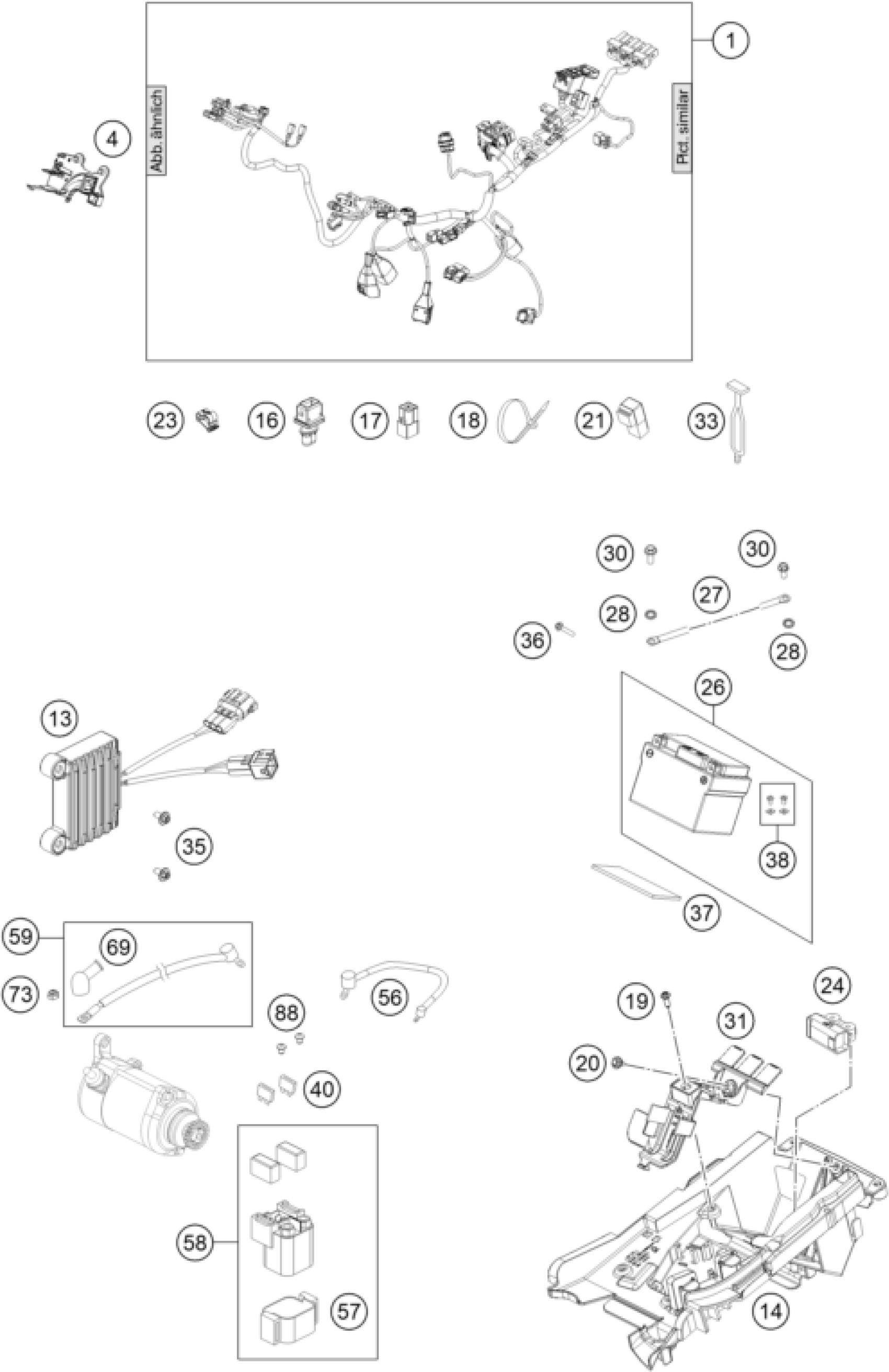

KTM 450 XCF-W 2023 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness XC-W-F

79711275000

$476.75

4

Connector support

79711083000

$14.87

13

VOLTAGE REGULATOR

79611034000

$192.32

14

Battery compartment

79111155000

$31.78

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

19

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

20

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

21

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

23

Line guide

83013026000

$3.08

24

ROLLOVER SENSOR 05

61041088000

$67.69

26

battery 12V/24Wh

79111053000

$166.05

27

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

28

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

30

HH collar screw M5x12 TX30

0025050126

$3.08

31

battery support

79711056000

$8.50

33

Holder control unit

55641030000

$3.08

35

COLLAR SCREW M6X12 TX

0023060123

$2.05

36

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

37

METAMOLL 90X45X3MM 03

59003001099

$2.05

40

Plug-in fuse, big 20A

58011109120

$1.49

56

Batteriekabel

25111059050

$20.66

57

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

58

Starter reley 12V 99

58211058000

$72.64

59

Starterkabel

25111059000

$20.94

69

Protection cap for starter eng

77240099000

$6.35

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

16

Dummy plug LV 2p/sealed

000700000LV001

$5.79

17

Dummy plug 4-pins

000700000AN01

$8.87

38

screw kit

79111053010

$4.11
