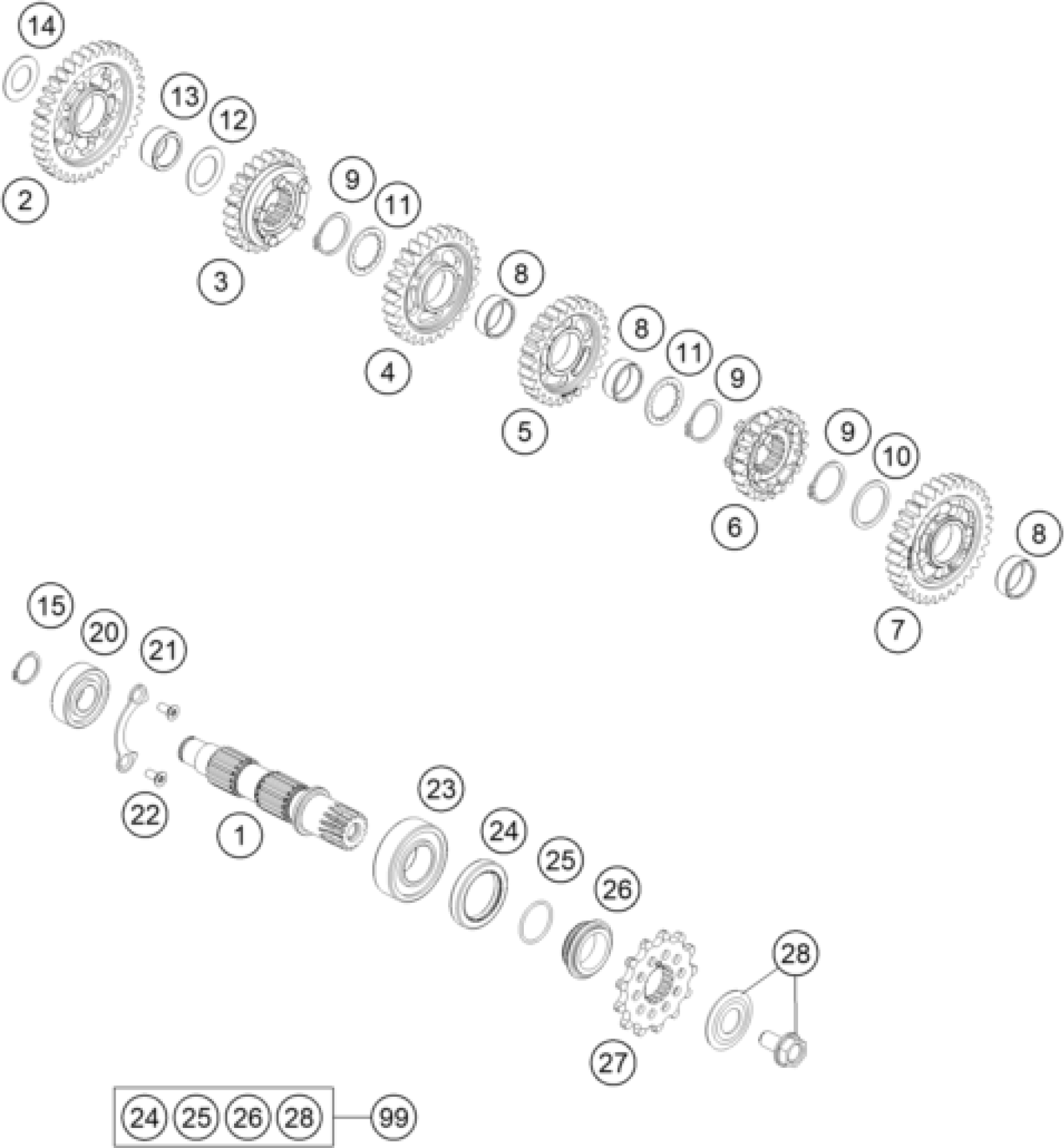

KTM 450 XCF-W 2023 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Output shaft

79433610000

$198.21

2

Idler gear 1 st

79433611000

$120.70

3

Sliding 5-th gear

79433615000

$155.48

4

Idler gear 3 rd.

79433613000

$110.13

5

Idler gear 4 th.

79433614000

$110.42

6

Sliding 6-th gear

79433616000

$154.83

7

Idler gear 2 nd

79433612000

$110.98

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

9

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

10

STOP DISK 26 X 32 X 1,5

78033031000

$3.08

11

STOP DISK 23 X 32 X 1,5

78033033000

$3.08

12

Shim 20x31.9x1

59033080000

$2.05

13

NEEDLE BEARING K 20X26X12

0405202612

$10.93

14

STOP DISC 17,2X30X1

56033030000

$4.11

15

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

20

BALL BEARING 6203 JR2 C3

0625062035

$14.48

21

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

23

cylindrical roller bearing NJ2

49030023000

$74.42

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

25

O-RING 25,12X1,78 NBR70

0770020220

$3.08

26

SPACER SLEEVE COUNTER

78133014000

$28.42

27

Sprocket 13-t

79233029013

Unavailable

27

ENGINE SPROCKET 14Z

79233129014

Unavailable

28

SCREW 10.9+SPRING WASHER

59033034044

$7.85

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
