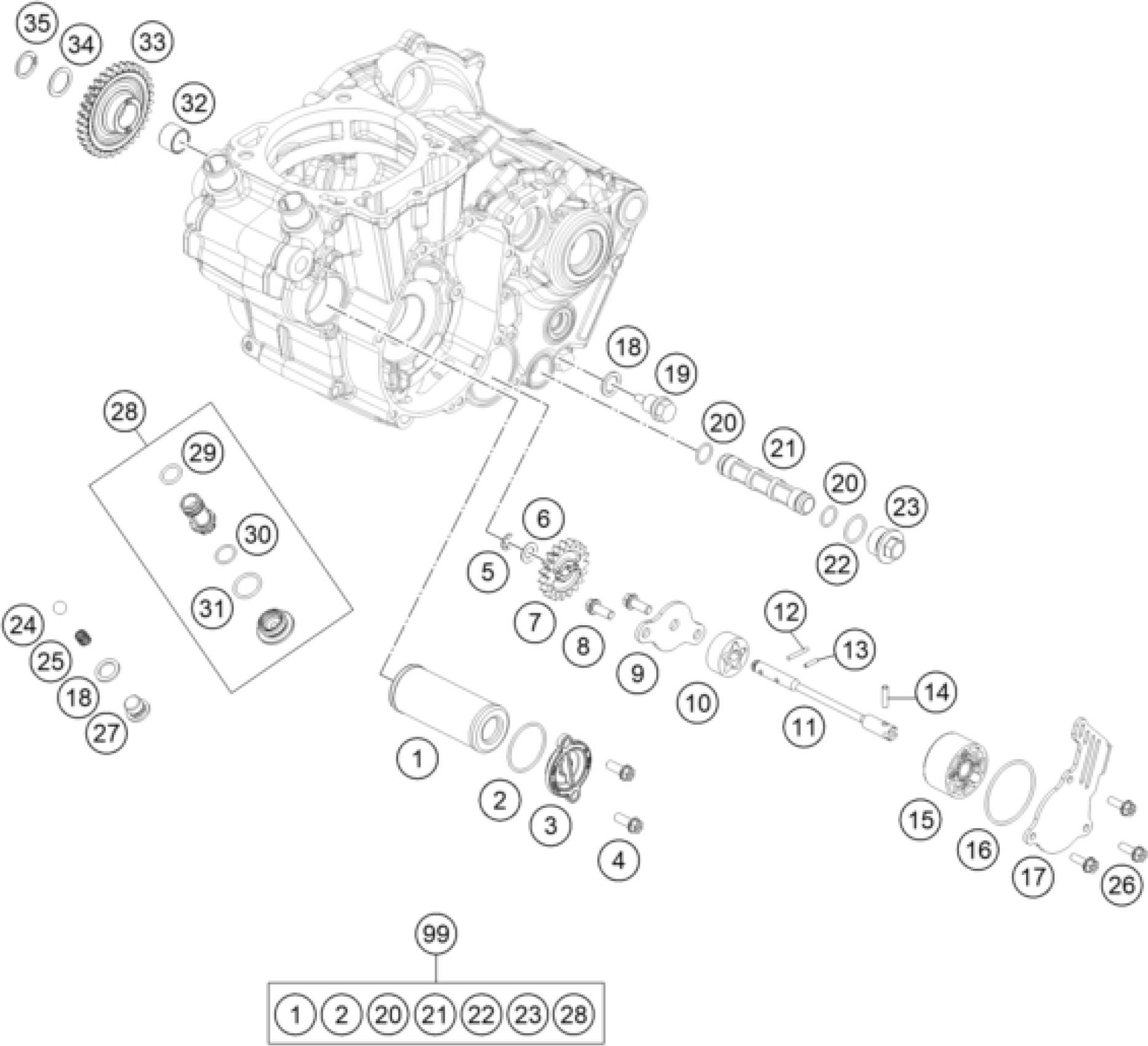

KTM 450 XCF-W 2023 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Oil Filter 07

77338005100

$9.34

2

O-RING 33,05X1,78

07703305178

$3.08

3

OIL FILTER COVER 08

77338041200

$11.68

4

HH collar screw M6x16 TX30

0025060166

$3.08

5

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

6

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

7

Oil pump gear wheel, 18 teeth

79538001018

$6.07

8

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

9

OIL PUMP COVER

79438003000

$14.48

10

OILPUMP ROTOR-SET 12MM CPL.

59038011112

$20.75

11

Oil pump shaft suction pump-fo

79438002100

$49.73

12

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

13

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

14

needle roller NRB 4x15.8 G2

0402041580

$2.05

15

ROTOR SET 22MM

61238011100

$16.63

16

O-RING 44,00X2,00 VITON

0770440020

$3.08

17

OIL PUMP COVER

79438004100

$67.22

18

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

19

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

20

O-RING 12,5X1,5 VITON V75

07701250151

$4.11

21

OIL SCREEN

59038016100

$7.00

22

O-RING 17,17X1,78 GLO

0770020170

$2.05

23

PLUG M20X1,5 WS=13

59038017100

$7.85

24

BALL DIN5401-9

0401090003

$2.05

25

PRESSURE SPRING

79438026000

$2.05

26

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

$2.05

27

PLUG SCREW SAS M12X1,5

78036024000

$9.72

28

OIL SCREEN CPL.

78138015001

$34.96

29

O-RING 12X2 VITON GREEN

0770012021

$2.05

30

O-RING 12,5X1,5 NBR

0770125015

$2.05

31

O-RING 17,00X2,00

0770170200

$2.05

32

NEEDLE BEARING INNER RING

79438001010

$8.78

33

IDLER WHEEL 33T

79438001033

$12.05

34

THRUST WASH. DIN0988-16X22X0,5

0988162205

$2.05

35

CIRCLIP DIN0471-15X1

0471150010

$2.05

99

OILFILTER SERVICEKIT SX-F

79438015010

Unavailable
