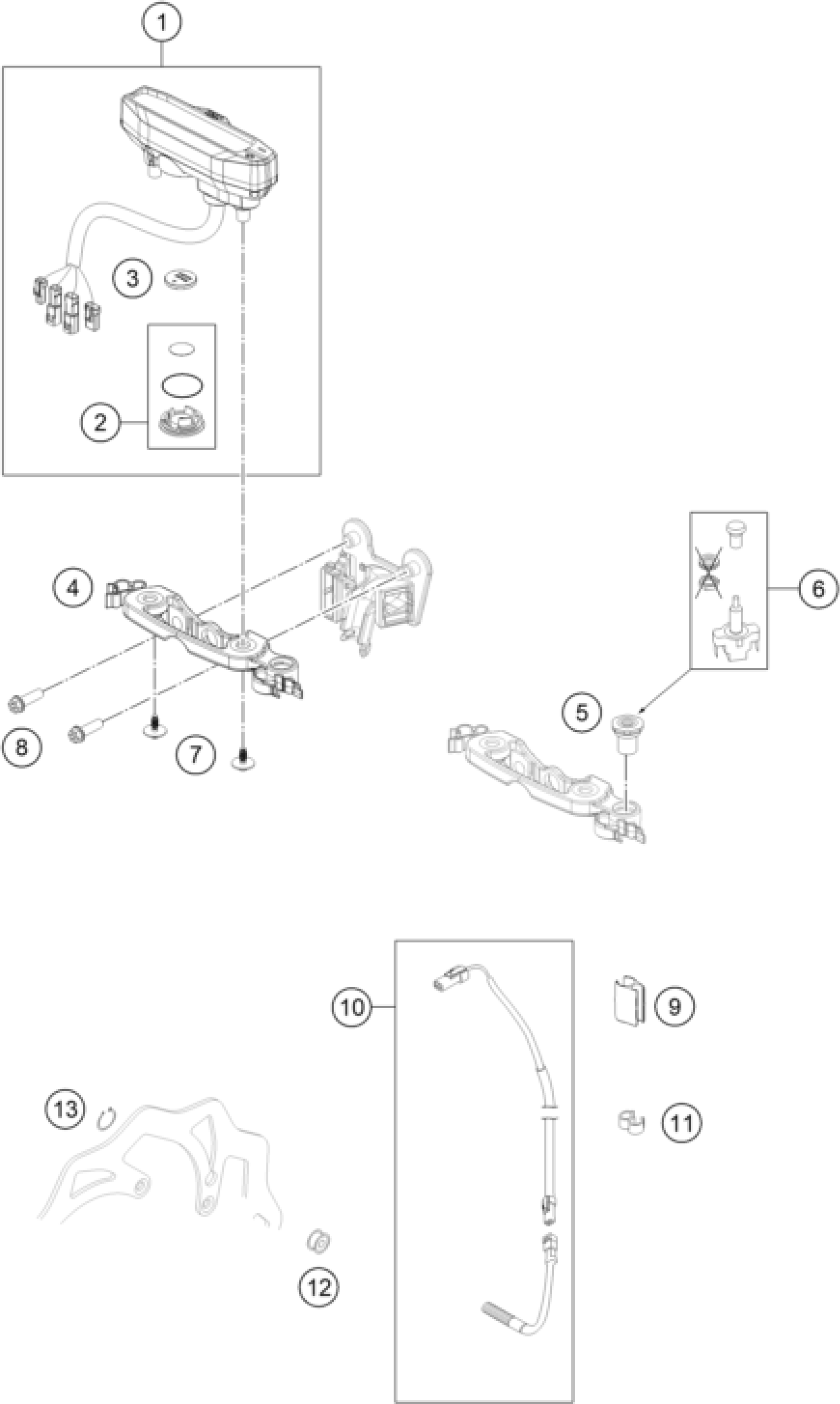

KTM 450 XCF-W 2023 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

TACHO DIGITAL MPH F. 21''

77714069700

$254.31

2

BATTERY COVER F. SPEEDOMETER

77714069010

$32.90

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

$9.81

4

SPEEDOMETER BRACKET EXC/XCW 14

77714060000

$13.74

5

SPEC. NUT F. PULL SWITCH WS=17

54814060050

$5.51

6

PULL SWITCH LOOSE

55011599000

$23.09

7

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

8

HH collar screw M6x20 TX30

0024060206

$3.08

9

CABLE SUPPORT 10/6MM 06

54813026000

$2.05

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

$78.91

11

CLIP 5/7 MM 06

60111094000

$3.08

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05
