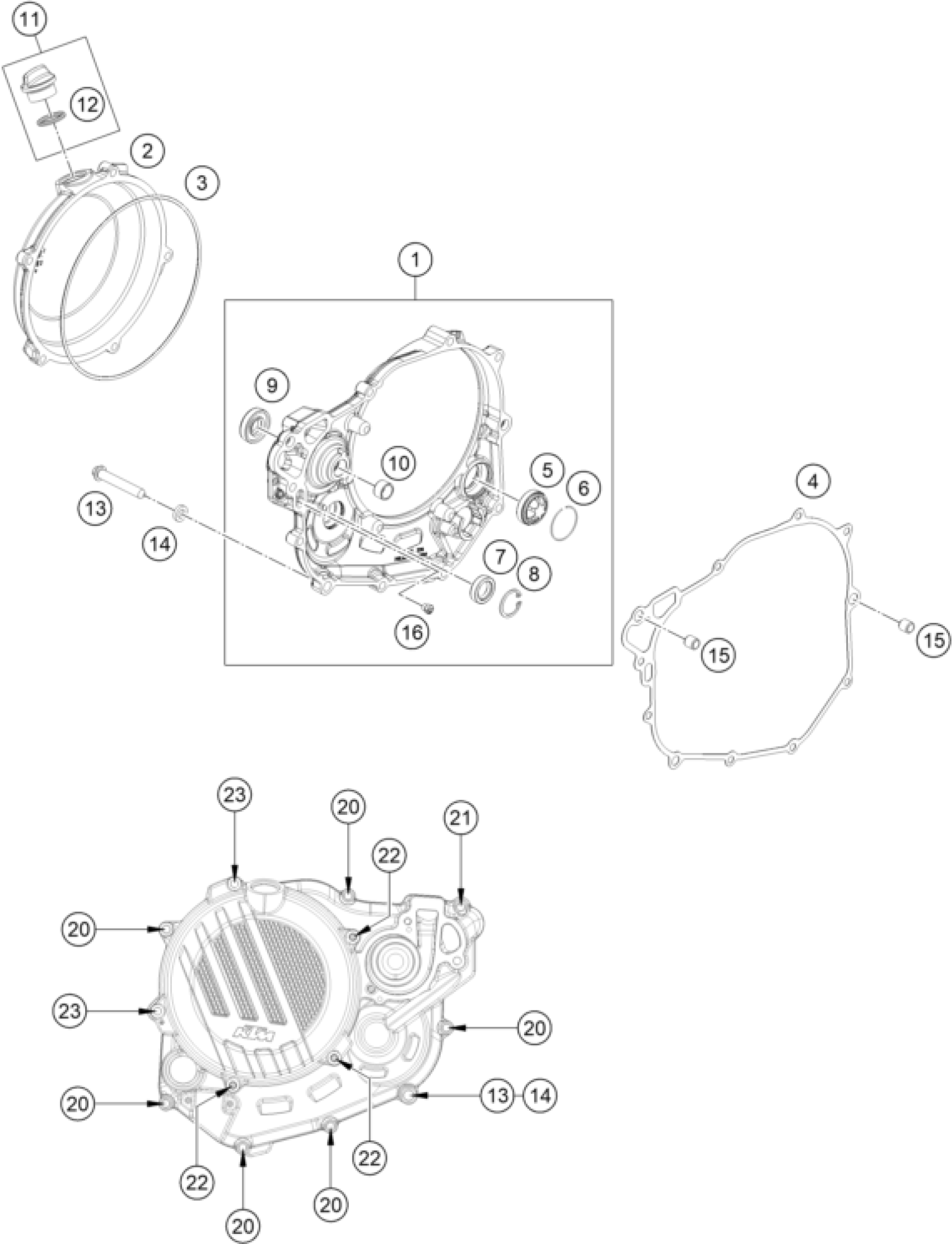

KTM 450 XCF-W 2023 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

79430001044

$182.13

2

Outer clutch cover

7953052600015

$48.14

3

GASKET - CLUTCH OUTER COVER

78130027000

$12.61

4

INNER CLUTCH COVER GASKET

79430025000

$16.07

5

OIL SIGHT GLASS

59030019200

$21.31

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

7

radial shaft seal 14x24x6 B

0760142460

$9.25

8

CIRCLIP DIN0472-24X1.2

0472024120

$1.49

9

SHAFT SEAL RING 12X30X7 PTFE

0760123073

$12.52

10

FRICTION BEAR. BUSH BALANC.SH.

79430057010

$28.79

11

Oil filler cap cmpl. M24x3

79430020033

$8.03

12

O-RING 19,00X3,00 NBR

0770191015

$2.05

13

LOCATING SCREW

78030080000

$4.11

14

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

15

DOWEL 9,8 X 7 X 10

49030090000

$2.05

16

MAIN JET 145

57031523145

$7.75

20

HH collar screw M6x25 TX30

0025060256

$3.08

21

HH collar screw M6x30 TX30

0025060306

$3.08

22

HH collar screw M6x20 TX30

0025060206

$3.08

23

HH collar screw M6x50 TX30

0025060506

$3.08
