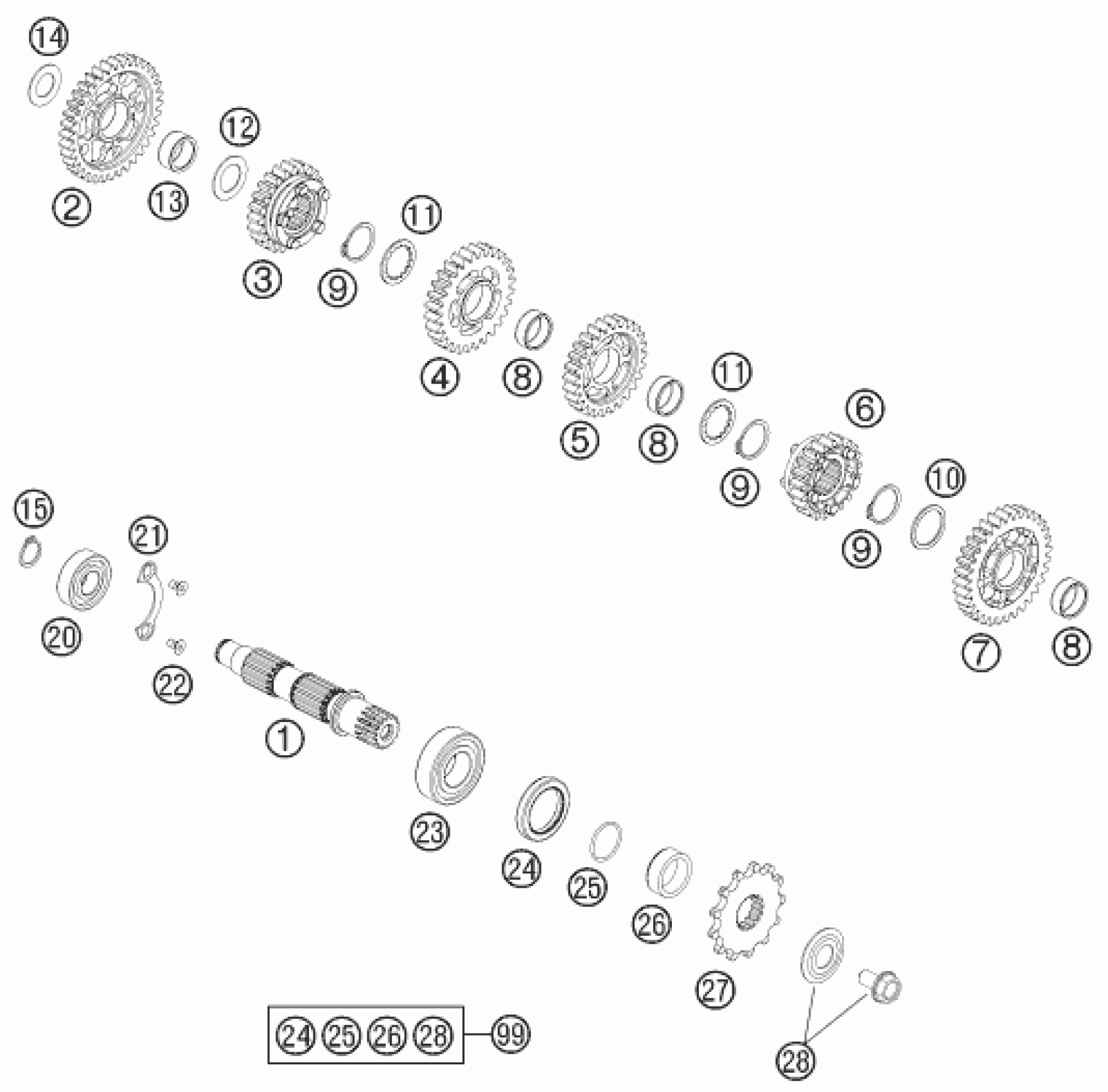

KTM 450 XC-W SIX DAYS 2011 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable

1

COUNTERSHAFT 08

78033010000

$99.85

2

IDLER GEAR 1. GEAR

78033011100

$112.19

3

SLIDING GEAR 5.G. 08

78033015000

$108.08

4

IDLER GEAR 3.G. 08

78033013000

$82.55

5

IDLER GEAR 4.G. 08

78033014000

$79.93

6

SLIDING GEAR 6.G. 08

78033016000

$107.98

7

IDLER GEAR 2. GEAR

78033012100

$95.83

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

9

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

10

STOP DISK 26 X 32 X 1,5

78033031000

$3.08

11

STOP DISK 23 X 32 X 1,5

78033033000

$3.08

12

Shim 20x31.9x1

59033080000

$2.05

13

NEEDLE BEARING K 20X26X12

0405202612

$10.93

14

STOP DISC 17,2X30X1

56033030000

$4.11

15

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

20

BALL BEARING 6203 JR2 C3

0625062035

$14.48

21

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

22

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

23

cylindrical roller bearing NJ2

49030023000

$74.42

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

25

O-RING 25,12X1,78 NBR70

0770020220

$3.08

26

SPACER BUSHING 12MM

54633014100

$20.94

27

FRONT SPROCKET 13-T

50033029013

Unavailable

27

FRONT SPROCKET 14-T

50033029014

Unavailable

27

FRONT SPROCKET 15-T

50033029015

Unavailable

28

SCREW 10.9+SPRING WASHER

59033034044

$7.85
