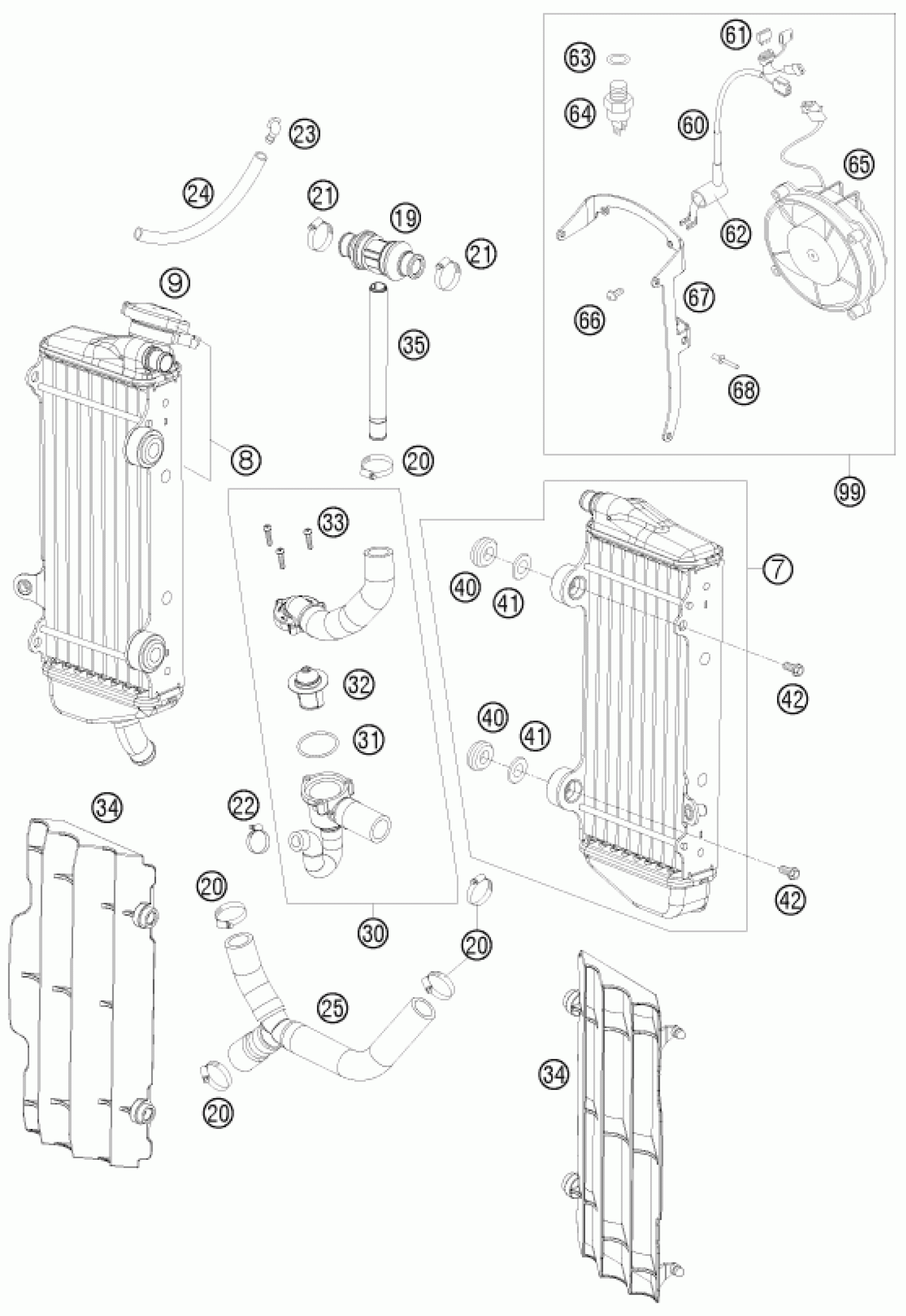

KTM 450 XC-W SIX DAYS 2011 COOLING SYSTEM Diagram

#

Description
Price

34

RADIATOR PROTECTION orange

7733503400004

Unavailable

7

RADIATOR L/S 250 SX-F

77035007200

$285.26

8

RADIATOR R/S ''45556'' 08

78035008000

$269.27

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

$22.62

19

T-CONNECTOR CPL. ´07

77335026000

$53.57

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

21

HOSE CLAMP NORMA 14/24

42013037400

$2.05

22

HOSE CLAMP GEMI 10-16

58335099000

$4.11

23

ANGLE PIECE '97

50303089000

$5.23

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATORHOSE CPL. W. Y-ITEM

78035027133

$51.04

30

RADIATOR H. CPL. W.THERM.75 08

78035026033

$120.89

31

O-RING 32,00X2,00

0770320020

$2.05

32

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

33

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

34

RADIATOR PROTECTION BLACK 07

7733503400030

$10.74

35

HOSE CONNECTOR 4 STROKE 07

77335073000

$18.97

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

WASHER FOR RADIATOR 08

77335001000

$2.05

42

COLLAR SCREW M6X12 TX

0023060123

$2.05

60

FAN WIRING HARNESS

59011079100

$41.13

61

FUSE 5 A 2003

58011109105

$2.05

63

ALU SEALRING DIN7603-14X20X1,5

0603142015

$2.05

64

THERMOSWITCH 95-100 DG

78035045000

$39.09

65

FAN CPL. 12V LC4 2000

58435041000

$137.53

66

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

67

FAN SUPPORT EXC

78035043000

$63.74

68

RIVET 4,0X 8 ALU

0011400800

$1.49

99

FAN KIT COMPLETE

81235941044

$143.64

62

PROTECTION CAP THERMOSWITCH

58311096000

$9.06
