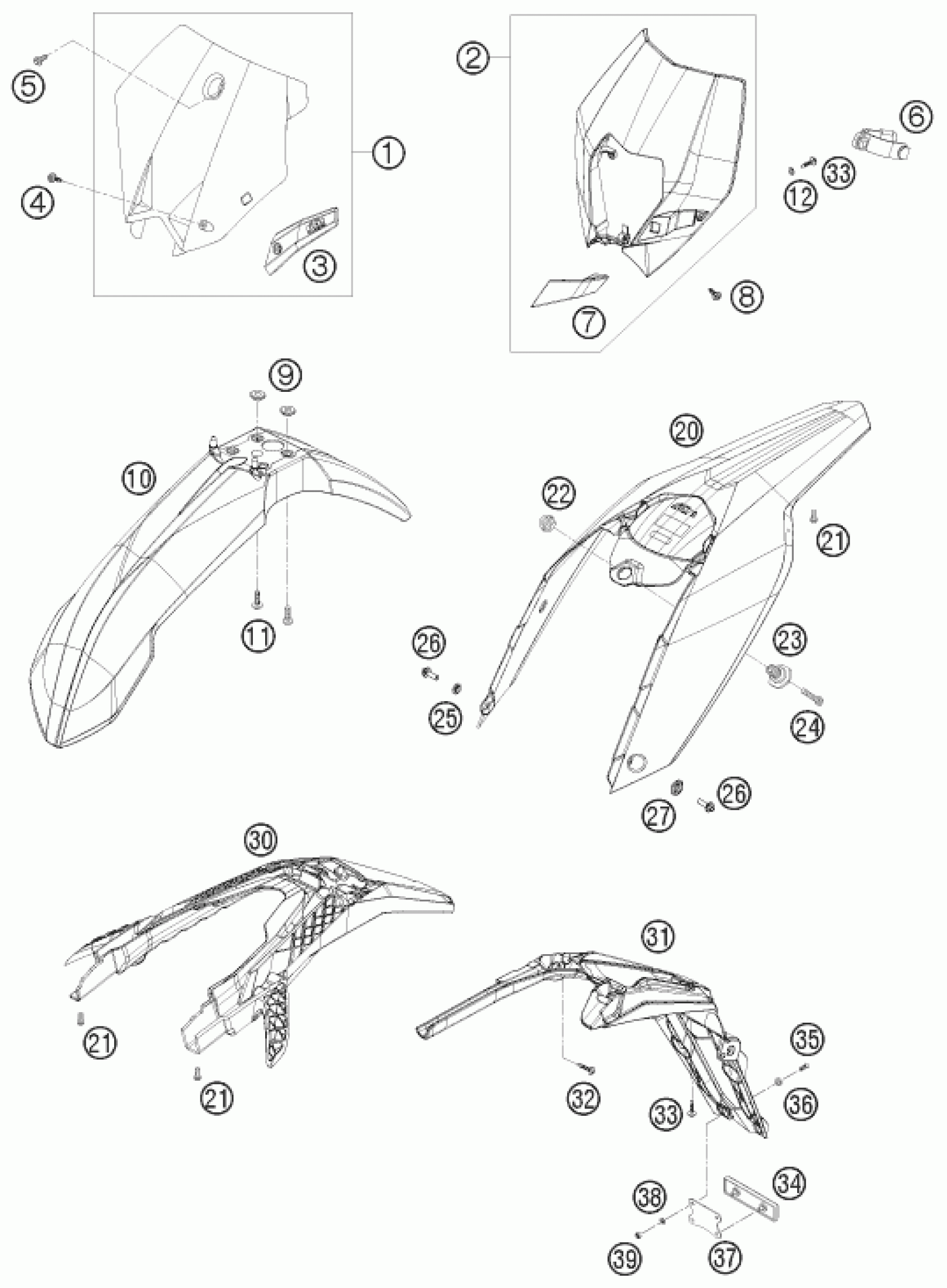

KTM 450 XC-W SIX DAYS 2010 MASK, FENDERS Diagram

#

Description
Price

8

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

6

MASK RUBBER UFO WP '95

50211086000

$8.03

7

BRAKE HOSE GUIDE ORANGE 08

7800802200004

$5.23

9

SPACER BUSHING 03

54808020000

$4.11

10

FRONT FENDER 07

7730801000004

$30.94

11

HH collar screw M6x20 TX30

0024060206

$3.08

3

BRAKE HOSE GUIDE ORANGE 07

7730802200004

$7.47

4

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

5

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

1

START NUMBER PLATE ORANGE 07

7730800704404

$20.74

2

HEAD LIGHT MASK ORANGE 08

7800800100004

$26.34

20

REAR PART EXC ORANGE 08

7800801300004

$67.03

21

HH collar screw M5x20 TX30

0025050206

$2.05

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH collar screw M6x25 TX30

0025060256

$3.08

25

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

26

HH collar screw M6x20 TX30

0025060206

$3.08

30

NUMBER PL. CARRIER TOP PART 08

78008016000

$20.66

31

NUMBER PL. CARRIER LOW PART 08

78008016050

$26.92

32

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

33

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

34

REFLECTOR RED

58412080000

$5.23

35

OVAL HEAD SCREW DIN0966-M 5X20

0966050203

$1.49

36

WASHER 6MM

40006006000

$1.49

37

BRACKET FOR REFLECTOR

58412080050

$6.07

38

WASHER DIN0125-A 5,3

0125050003

$1.49

39

Self locking nut DIN 985 M5

0985050003

$2.05

27

COLLAR BUSHING 4,5/12,6/23

77306001030

$5.23

12

WASHER DIN0125-A 6,4

0125060003

$1.49
