VALVE DRIVE

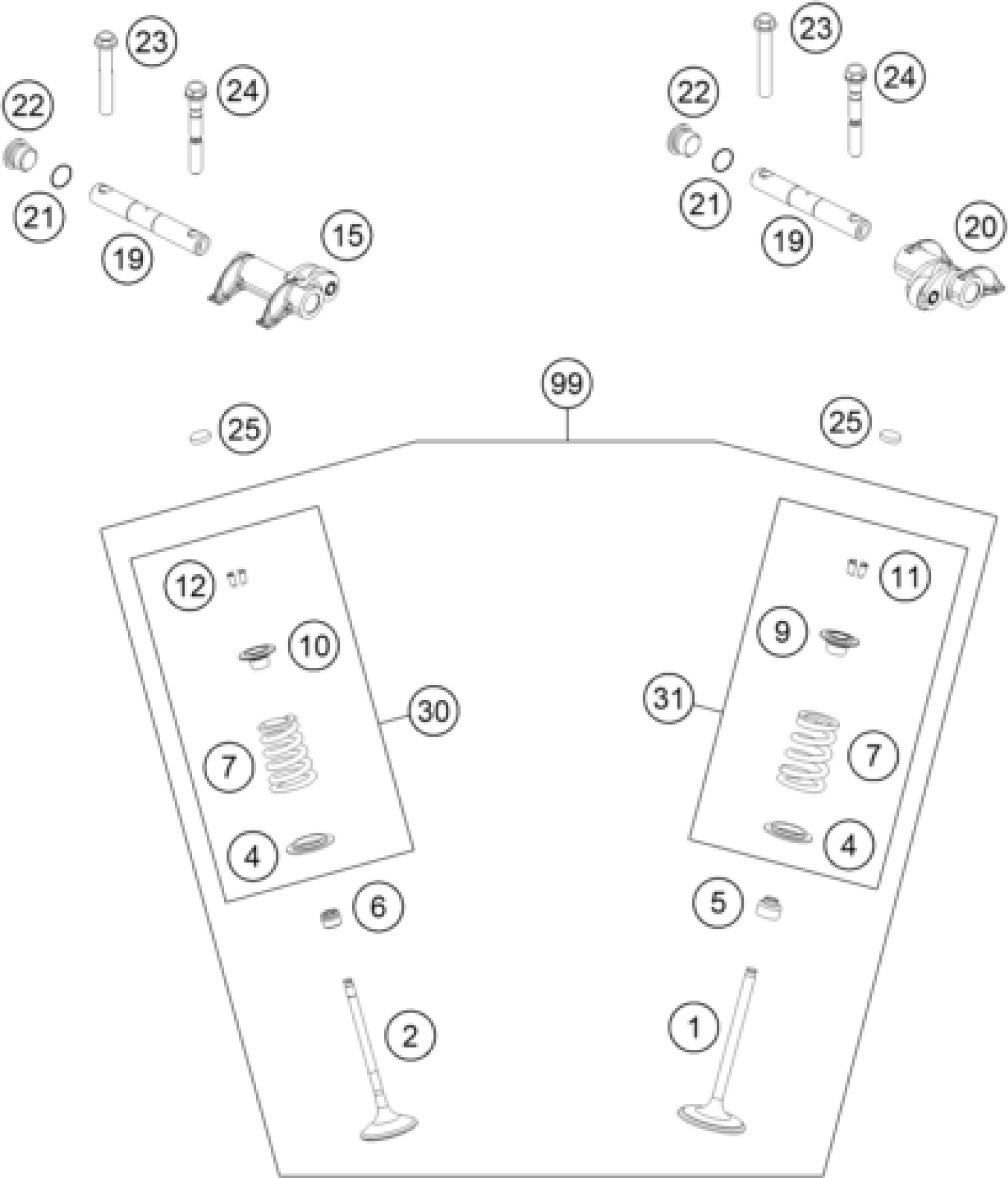

KTM 450 XC-W 2016 VALVE DRIVE Diagram
#
4
VALVE SPRING HOLDER
78936036000
$9.62
5
VALVE-STEM SEALING RACING
59036027000
$5.98
6
VALVE-STEM SEALING 05
77036027000
$6.44
7
VALVE SPRING
78936028000
$21.87
9
VALVE SPRING RETAINER
78936032100
$26.45
10
VALVE SPRING SUPPORT
78136032000
$20.09
11
VALVE COLLET 07
77336033100
$3.08
24
FIT BOLT M7X1X55
78036080000
$4.11
25
SHIM D=8,9/1,72
77036035172
Unavailable
25
SHIM D=8,9/1,76
77036035176
Unavailable
25
SHIM D=8,9/1,80
77036035180
Unavailable
25
SHIM D=8,9/1,84
77036035184
Unavailable
25
SHIM D=8,9/1,88
77036035188
Unavailable
25
SHIM D=8,9/1,92
77036035192
Unavailable
25
SHIM D=8,9/1,96
77036035196
Unavailable
25
SHIM D=8,9/2,00
77036035200
Unavailable
25
SHIM D=8,9/2,04
77036035204
Unavailable
25
SHIM D=8,9/2,08
77036035208
Unavailable
25
SHIM D=8,9/2,12
77036035212
Unavailable
25
SHIM D=8,9/2,16
77036035216
Unavailable
1
INTAKE VALVE
78936030100
$169.74
2
EXHAUST VALVE
78036031000
$64.60
12
valve collet
77036033000
$5.23
15
ROCKER ARM EXHAUST CPL.
78036061044
$122.94
19
ROCKER ARM SHAFT
78036056200
$26.92
20
ROCKER ARM INTAKE CPL.
78036060044
$122.94
21
O-ring 11x1.5 VITON
0770110015
$5.23
22
HOLDING BOLT M14X1,5
78036081000
$3.08
23
SPECIAL SCREW M7X40 WS10
77036080000
$3.08
25
SHIM D=8,9/2,20
77036035220
Unavailable
25
SHIM D=8,9/2,24
77036035224
Unavailable
25
SHIM D=8,9/2,28
77036035228
Unavailable
25
SHIM D=8,9/2,32
77036035232
Unavailable
25
SHIM D=8,9/2,36
77036035236
Unavailable
25
SHIM D=8,9/2,40
77036035240
Unavailable
25
SHIM D=8,9/2,44
77036035244
Unavailable
25
SHIM D=8,9/2,48
77036035248
Unavailable
25
SHIM D=8,9/2,52
77036035252
Unavailable
25
SHIM D=8,9/2,56
77036035256
Unavailable
25
SHIM D=8,9/2,60
77036035260
Unavailable
30
VALVE SPRING KIT EXHAUST
78136029044
$48.24
31
VALVE SPRING KIT INTAKE 16
78136028144
$50.11
99
VALVE KIT 450/500 EXC 14-15
78136030010
Unavailable
