CLUTCH

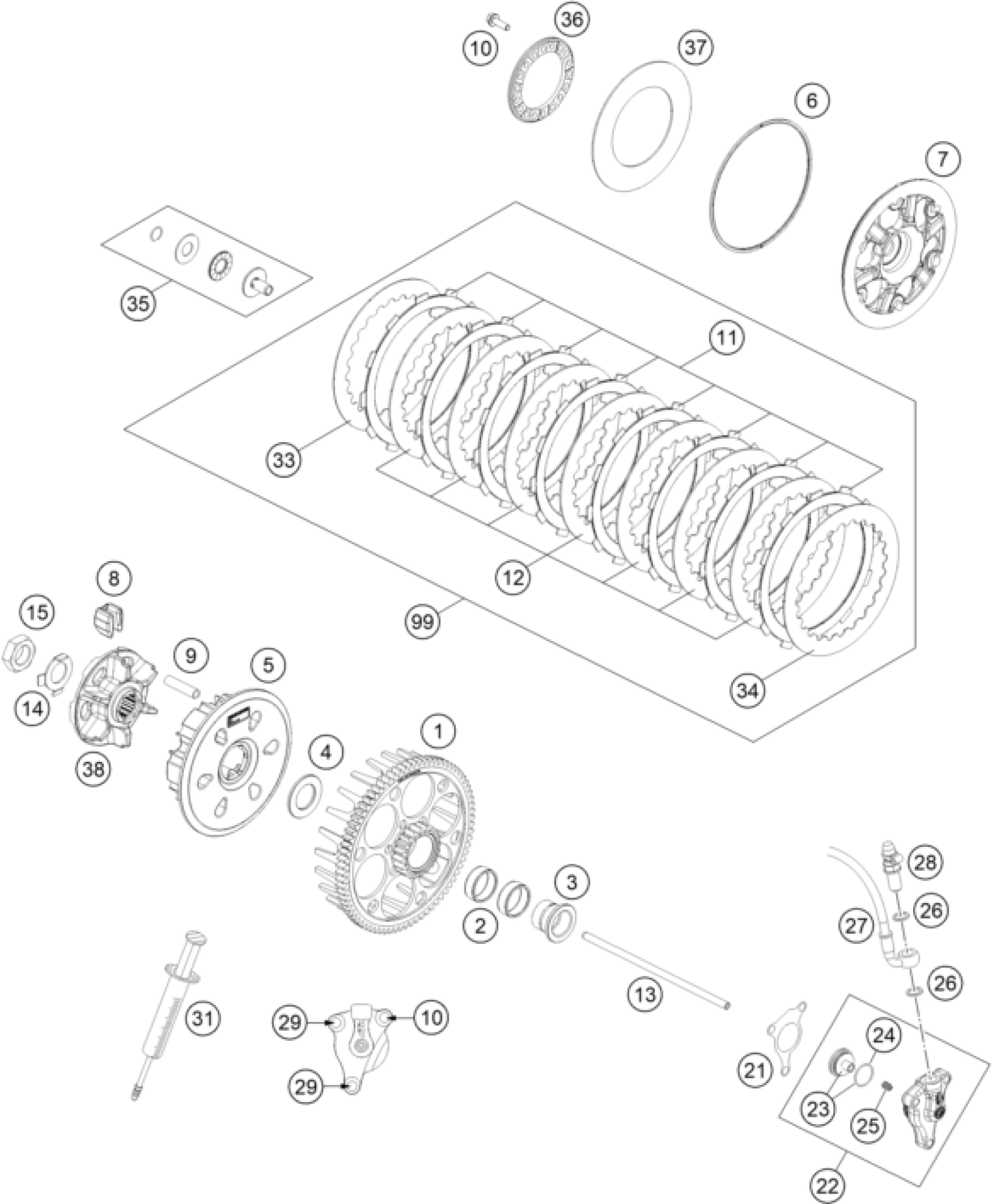

KTM 450 XC-W 2016 CLUTCH Diagram
#
Description
Price
1
CLUTCH CAGE
79432001076
$276.19
2
NEEDLE BEAR K 25X29X10
0405252910
$8.87
3
COLLARSLEEVE
78132015100
$26.92
4
WASHER 22 X 36,5 X 3
78932009000
$7.75
5
INNER CLUTCH HUB 450SX-F 2014
78132002200
$134.72
6
WASHER 112X118X1.5
78132013000
$10.84
7
CLUTCH PRESSURE CAP
79432003000
$23.74
8
DAMPING RUBBER
78132025100
$4.11
9
DRIVING SLEEVE D=7,95 L=38
77232004000
$3.08
10
HH collar screw M5x16 TX30
0025050166
$2.05
11
LINING DISC 2MM 04
59032011100
$22.43
12
INTERMEDIATE DISC 1,4MM 2002
59032010200
$10.93
13
PUSH ROD
78132054100
$11.59
14
TAB WASHER
78132018000
$5.88
15
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
$7.75
21
GASKET FOR SLAVE CYLINDER
59032065000
$5.60
22
OUTPUT CYLINDER CPL. 06
54832061044
$137.44
23
PISTON CPL.
54832066000
$68.43
24
O-RING
54832067000
$3.08
25
PRESSURE SPRING
54832069000
$12.05
26
sealing ring DIN 7603 10x14x1
0603100141
$2.05
27
CLUTCH PIPE
78132063000
$107.14
28
BLEEDER SCREW CPL. 05
62513020000
$27.48
29
HH collar screw M6x20 TX30
0025060206
$3.08
31
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
33
INTERMEDIATE DISC 1MM 2002
59032010100
$9.81
34
INTERMEDIATE DISC 1MM
78932010000
$12.05
35
PRESSURE PIECE CPL.
78132057144
$30.75
36
SPRING RING
78132006100
$10.84
37
BELLEVILLE SPRING 71X115X1,5 I
78132005000
$31.97
38
HUB
78132002111
$134.72
99
CLUTCH DISC KIT
78932010033
Unavailable
