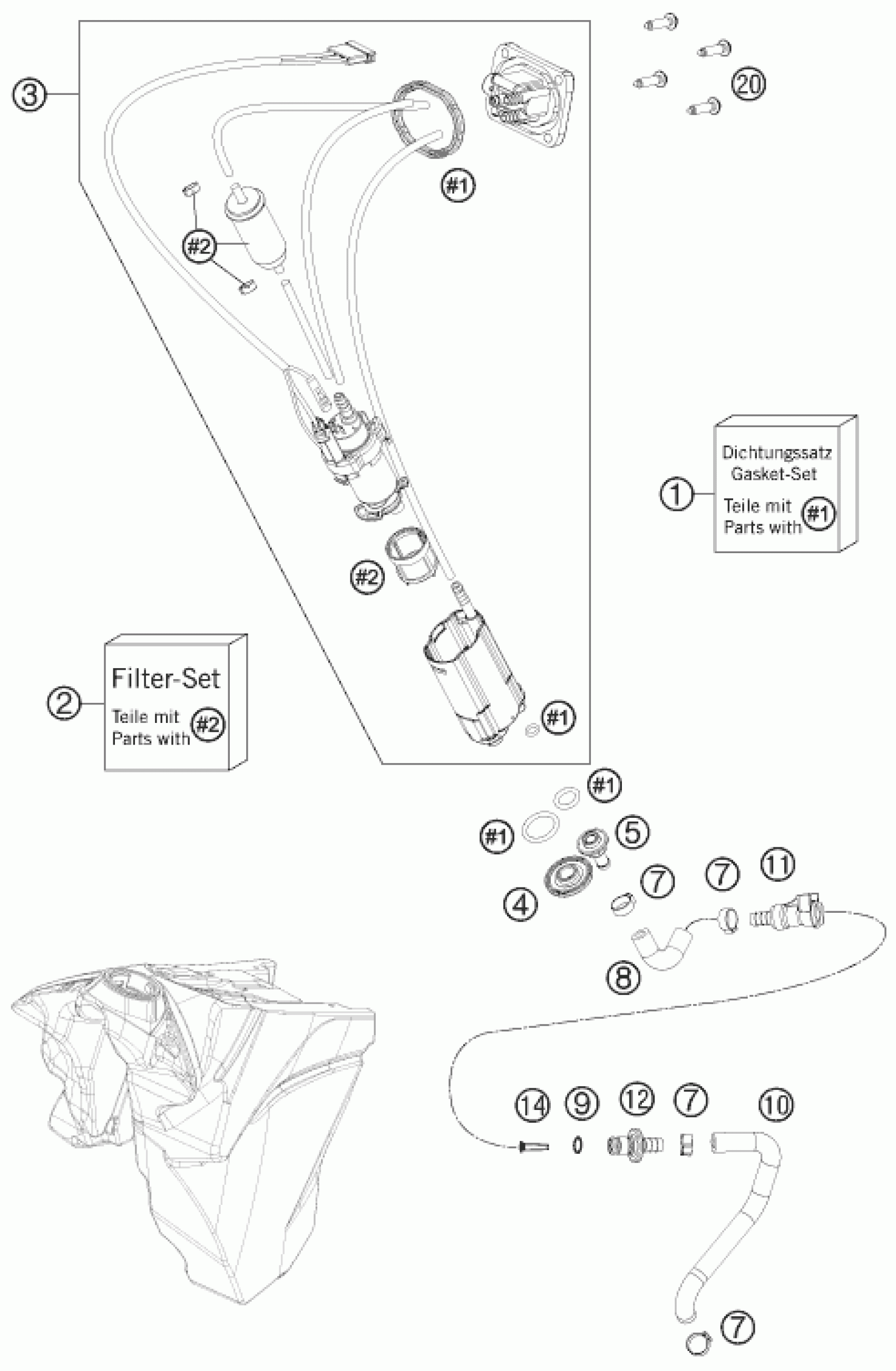

KTM 450 XC-W 2015 FUEL PUMP Diagram

#

Description
Price

1

GASKET KIT

78107089000

$71.80

2

FILTER KIT

81207090000

$76.29

3

FUEL PUMP CPL. EXC

78107088000

$424.76

4

NUT FUEL PUMP M12

78107088114

$8.78

5

CONNECTOR FUEL PUMP 2012

78107088117

$11.40

7

Variable one-ear clamp 15.7mm

00050157706

$5.23

8

FUEL HOSE TANK

77407116000

$15.98

9

O-ring VITON f. plug CPC 0

58507012000

$6.26

10

FUEL HOSE PREFORMED DKK

78107016100

$21.68

10

FUEL HOSE PREFORMED DKK

77407016100

Unavailable

11

Clutch CPC PLCD17005, black

5850701050030

$55.90

12

Fuel connection

77707010000

$15.14

14

FUEL FILTER

78141013190

$9.53

20

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05
