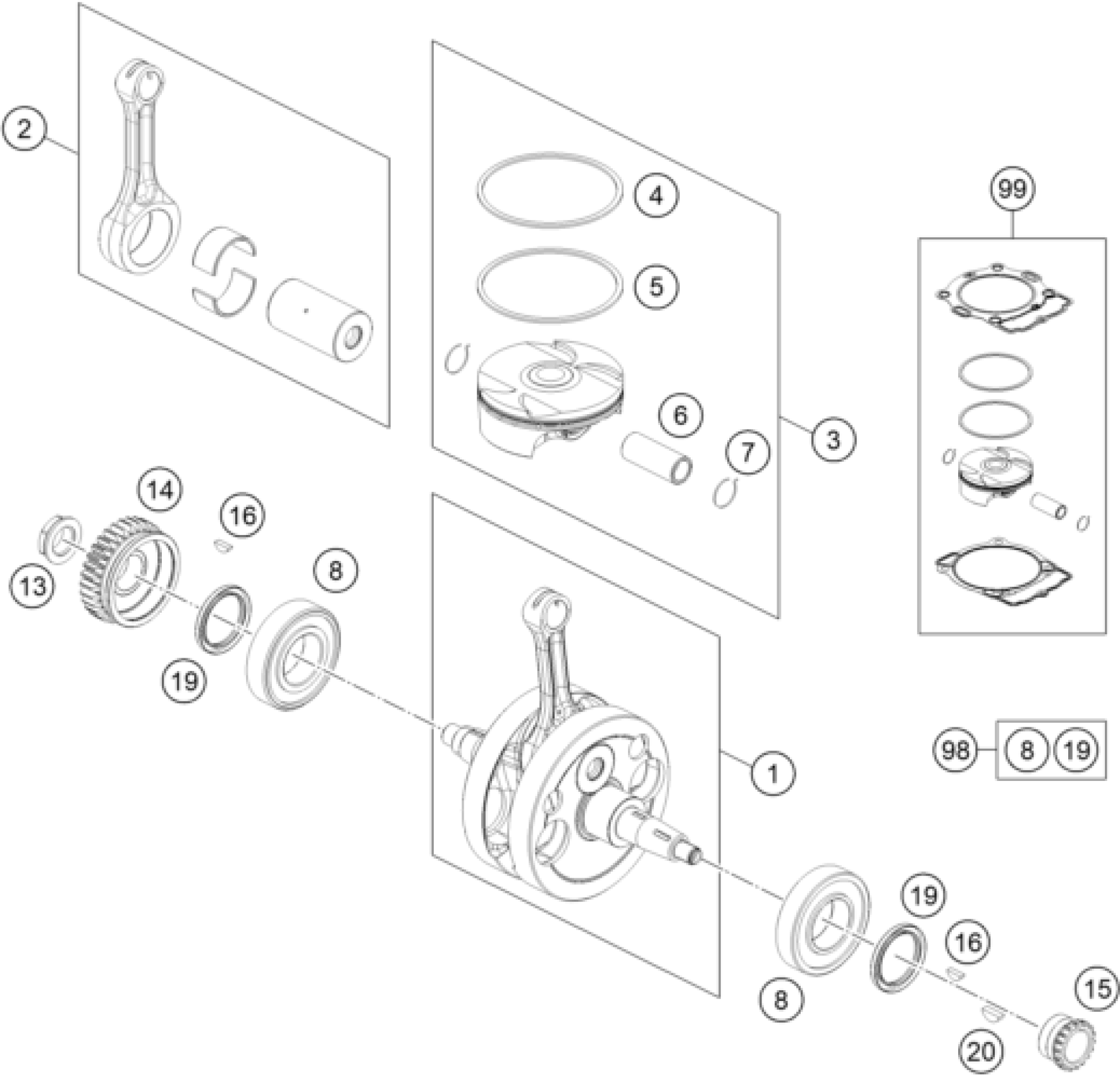

KTM 450 XC-W 2015 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

78130218000

$906.66

2

CON. ROD. REP. KIT

78930015044

$378.11

3

PISTON I D=95MM

78130007200 I

$383.62

3

PISTON II D=95MM

78130007200 II

$393.44

4

COMPRESSION RING

78930030000

$40.85

5

OIL SCRAPER RING

78930032000

$52.54

6

PISTON PIN

78130033000

$69.37

7

CIRCLIP

77330074000

$13.08

8

BALL BEARING 6207 TM-SX07E 39

0625062071

$52.82

13

NUT PRIMARY WHEEL M20X1,5

78030029200

$10.09

14

PRIMARY GEAR

78132000032

$87.47

15

TIMING GEAR 18T.

78036014200

$40.66

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

19

SHAFT SEAL RING 35X47X7 VITON

0760354774

$11.87

20

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

98

CRANKSHAFT REP. KIT 450/500

00050002308

Unavailable

99

PISTON KIT GR. I 450 EXC 14

78130007010 I

Unavailable

99

PISTON KIT GR. II 450 EXC 14

78130007010 II

Unavailable
