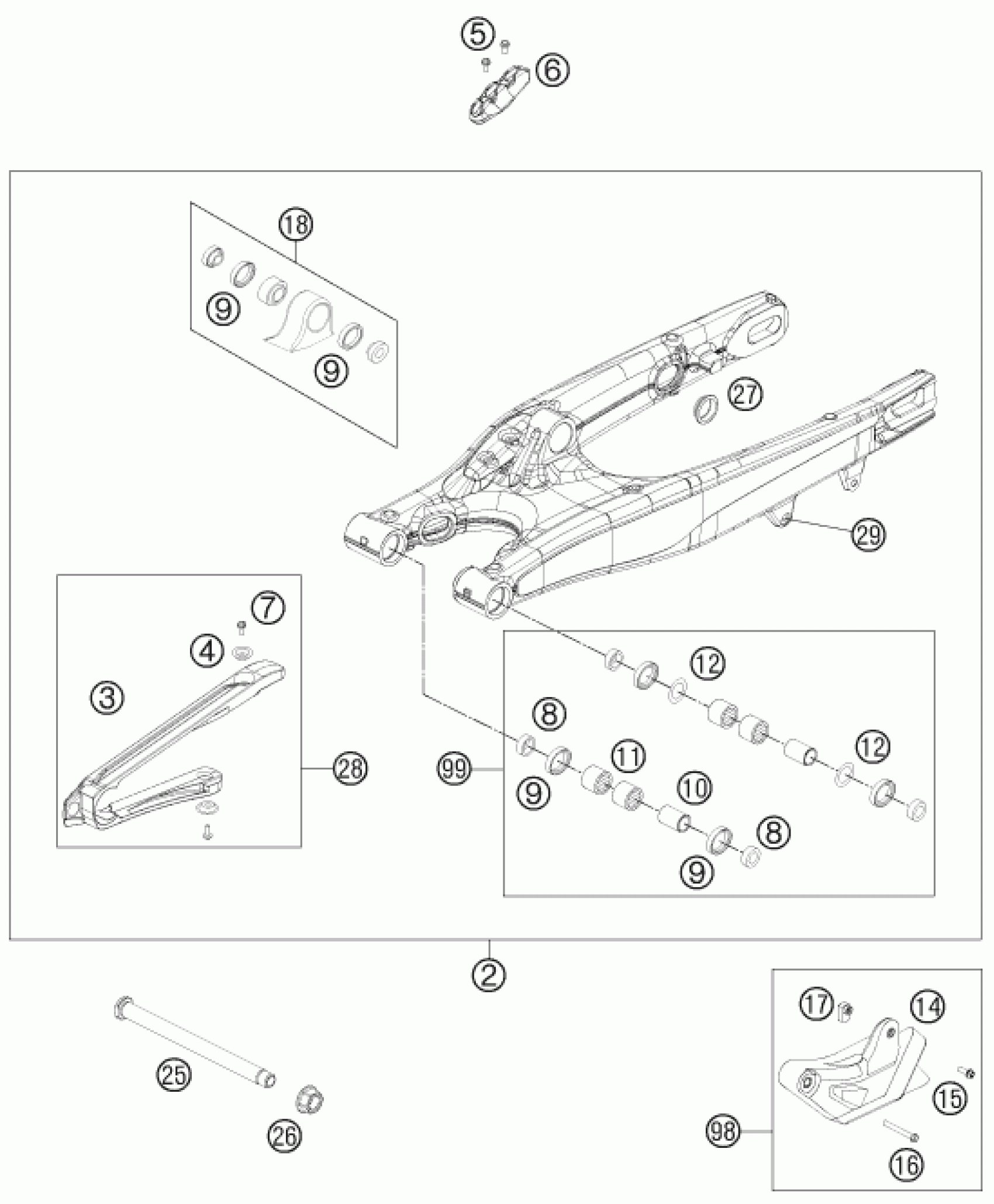

KTM 450 XC-W 2012 SWING ARM Diagram

#

Description
Price

3

CHAIN SLID.GUARD PDS

51504066000

$22.71

4

chain slider bushing

77304066050

$1.49

2

SWINGARM PDS XC-W 2012

78104030144

$699.37

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

6

BRAKE HOSE GUIDE LOWER 07

77313047000

$5.23

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

8

Bucket f. shaft seal ring 03

54804034000

$5.23

9

radial shaft seal 25x32x7

0760253270

$6.63

10

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

11

NEEDLE BUSH HK2212V

59004031200

$9.81

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

14

CHAIN GUIDE CPL.

78004070100

$43.94

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

16

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

17

INSERTION NUT F. CHAIN GUIDE

77304070030

$8.87

18

PIVOT BEARING+BUSH. PDS '11

50304090144

$64.69

25

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

Locking cap swingarm

77204041000

$4.11

28

CHAIN SLIDING GUARD KIT 11-15

51504066044

Unavailable

29

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

98

Chain guide kit

77304070310

$57.40

99

SWINGARM-REPAIR KIT 05-14

59404230110

Unavailable
