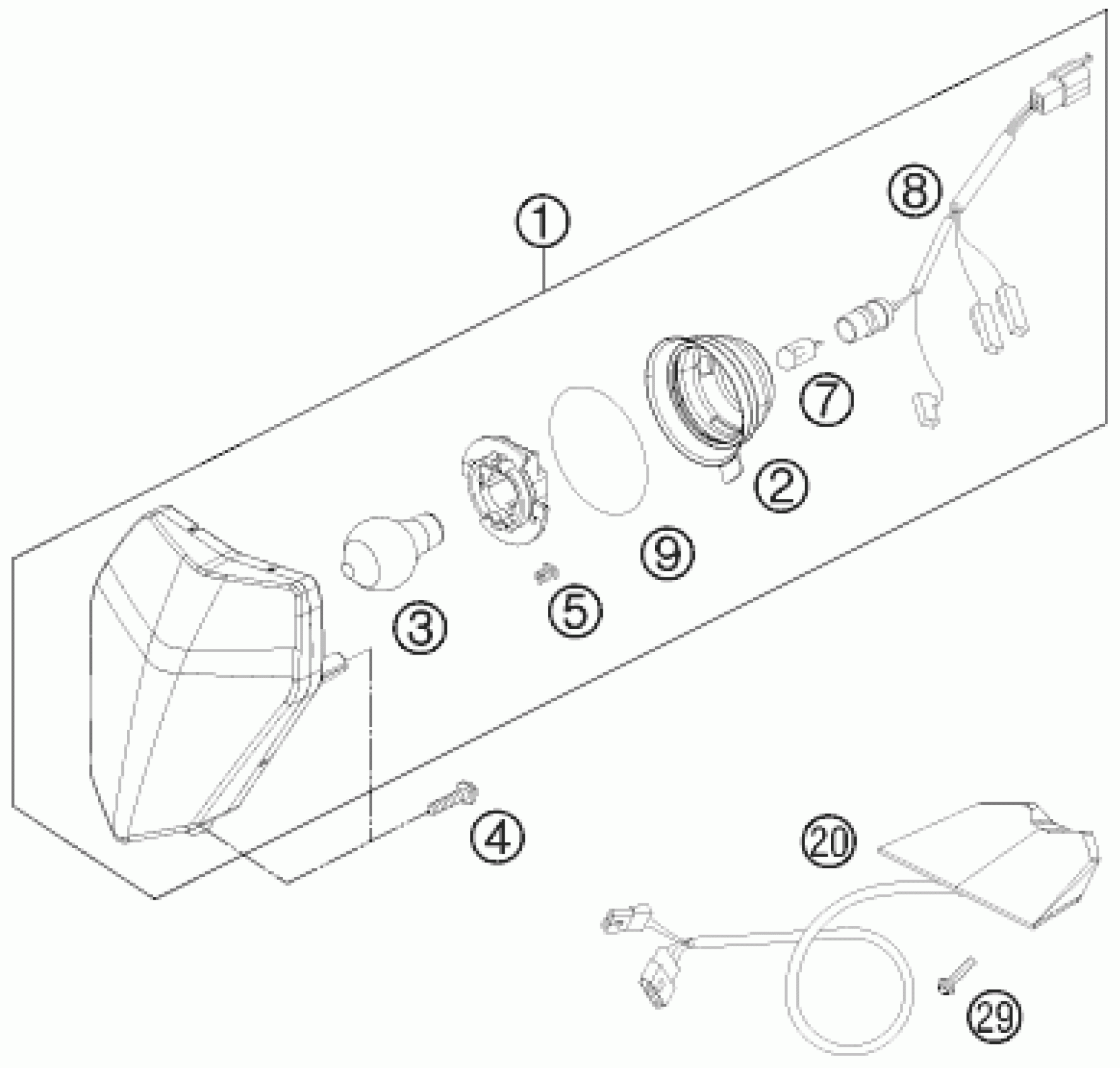

KTM 450 XC-W 2012 LIGHTING SYSTEM Diagram

#

Description

Price

1

HEAD LIGHT CPL. EXC-EU 08

78014001000

$116.12

2

RUBBER CAP FOR HEAD LIGHT 05

54814001050

$10.93

3

BILUX-BULB 12V 35/35W BA20D

44111038000

$16.17

4

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

5

DRAIN HOLE COVER

78014009000

$3.08

7

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

8

CABLE FOR HEAD LIGHT 2005

54811001050

$14.39

9

O-RING 35,00X32,00 NBR

0770350032

$4.87

20

REAR LIGHT

76514040000

$106.39

29

EJOT PT SCREW K60X25-Z SW6

0017060253

$3.08
