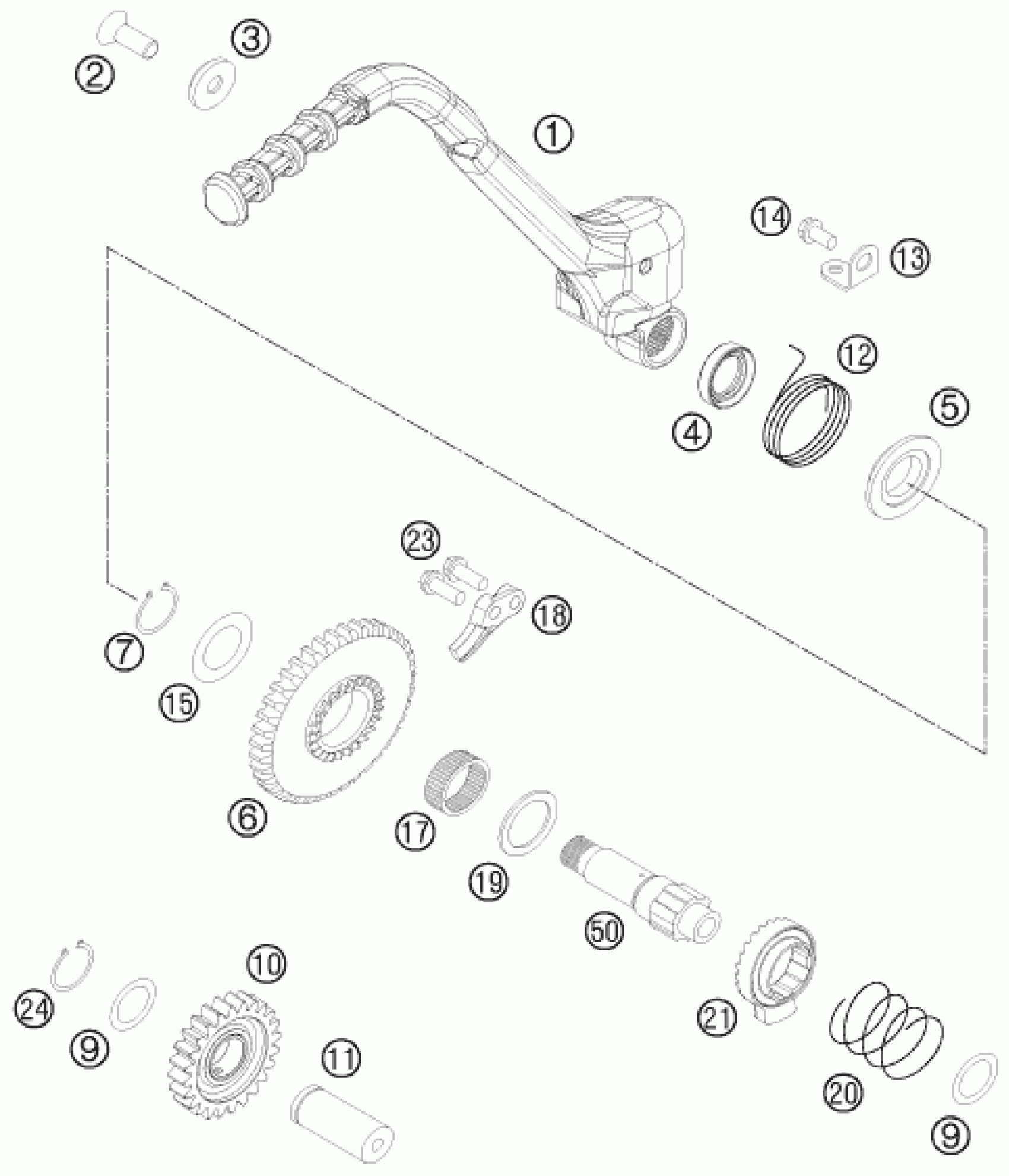

KTM 450 XC-W 2012 KICK STARTER Diagram

#

Description
Price

5

DRIVING HUB

59033055000

$4.11

6

KICKSTARTER GEAR 39-T

59033051039

$81.90

7

CIRCLIP DIN0471-19X1,2

0471190120

$1.49

9

SHIM WASHER DIN0988-17X24X0,5

0988172405

$2.05

10

IDLER GEAR CPL.

78033053200

$72.92

11

BUSHING PIN 2000

59033018000

$12.61

12

KICKSTARTER SPRING

59033054000

$8.03

13

SPRINGHOLDER 08

78033074000

$3.08

14

AH SCREW DIN0912-M 6X12

0912060123

$3.08

15

Shim 20x31.9x1

59033080000

$2.05

17

NEEDLE BEARING K 22X26X10 A

0405222610

$6.72

18

BUMP PART

59033069000

$13.27

19

STOP DISK 22,2 X 30 X 1,5

58033031000

$4.11

20

RATCHET GEAR SPRING 1,2 MM

58033028000

$2.05

21

RATCHET GEAR KICK STARTER

78033052000

$47.30

23

HH collar screw M6x20 TX30

0025060206S

$2.05

24

CIRCLIP DIN0471-17X1

0471170010

$2.05

50

KICKSTARTER SHAFT

59033050100

$65.25

1

KICKSTARTER CPL.

77133070144

$128.93

2

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

3

WASHER 8MM GALVANIZED

54633037000

$6.07

4

SHAFT SEAL RING 19X30X7 B

0760193070

$5.60
