FRONT FORK, TRIPLE CLAMP

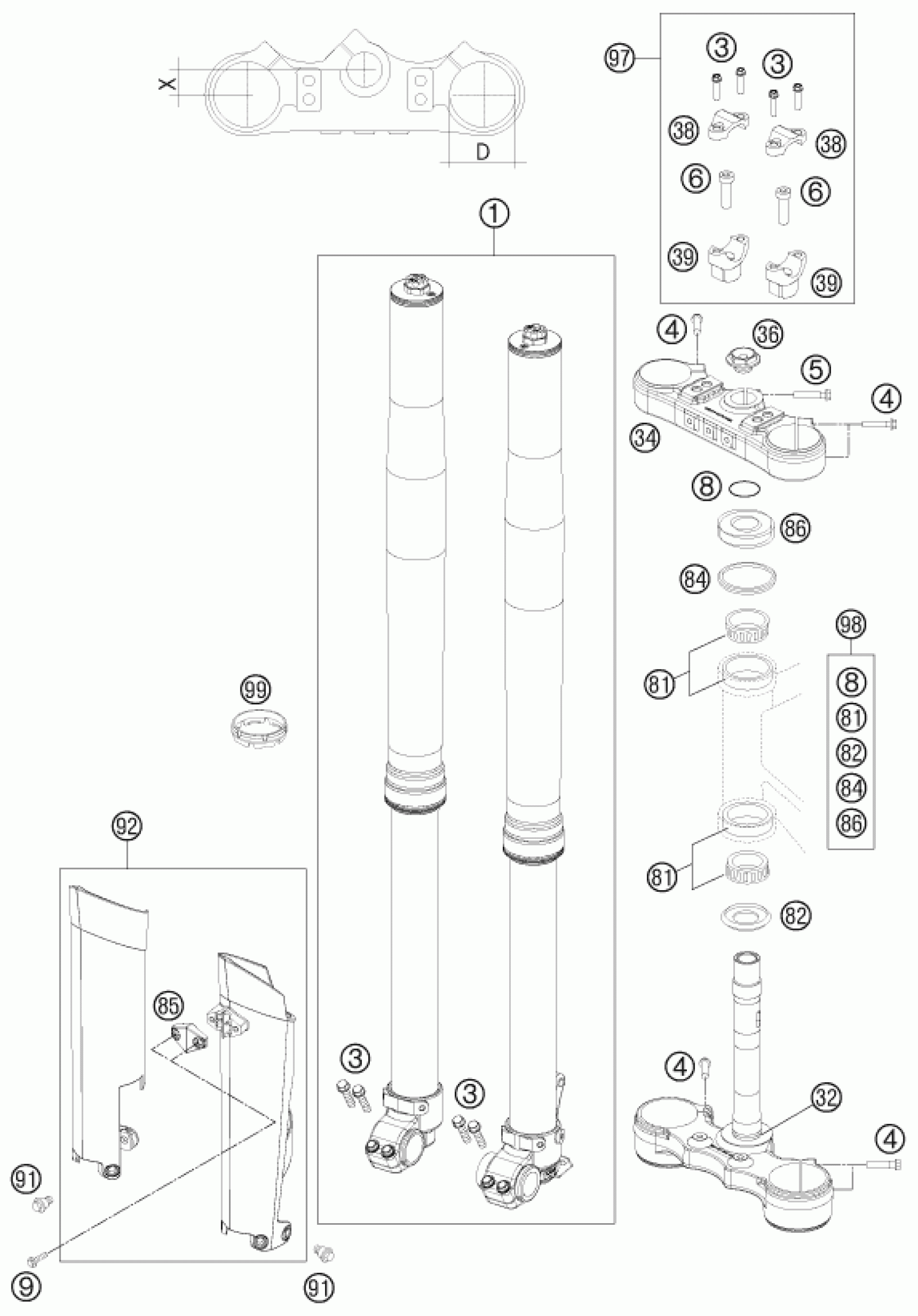

KTM 450 XC-W 2012 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
Fork WP 450/500 EXC/XC-W 12
14187L6901
$2,406.46
3
HH collar screw M8x25
0025080256
$2.05
4
HH collar screw M8x30
0025080306
$3.08
5
HH collar screw M8x35 TX40
0025080356
$4.11
6
AH-COLLAR SCREW M10X35 ISA45
0032100356S
$4.11
8
O-RING 25X3,55 NBR70 05
0770025035
$1.49
9
EJOT PT SCREW K60X20 ALU WS=6
0017060204
$3.08
32
BOTTOM TRIPLE CLAMP CPL.
78101032020
$206.81
34
TOP TRIPLE CLAMP X=20MM
78101034020
$147.44
36
STEER.HEAD SCREW M20X1,5 WS=27
54801036000
$11.21
38
HANDLEBAR CLAMP 28MM
77201038000
$25.05
39
Handlebar mount D28mm-H32mm
59401039032
Unavailable
39
Handlebar mount D28mm-H37mm
59401039037
$34.12
39
Handlebar mount D28mm-H42mm
59401039042
Unavailable
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
99
Fork protection ring 62,1mm
48600698
$9.34
98
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
82
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
CLAMP F. SPEED. CABLE D=6MM 08
7800108500028
$5.23
86
STEERING HEAD COVER
78101086000
$6.07
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROTECT L/S+R/S WHITE 09
7800109410028
$30.94
97
HANDLEBAR SUPPORT KIT D28/H37
00050000921
Unavailable
