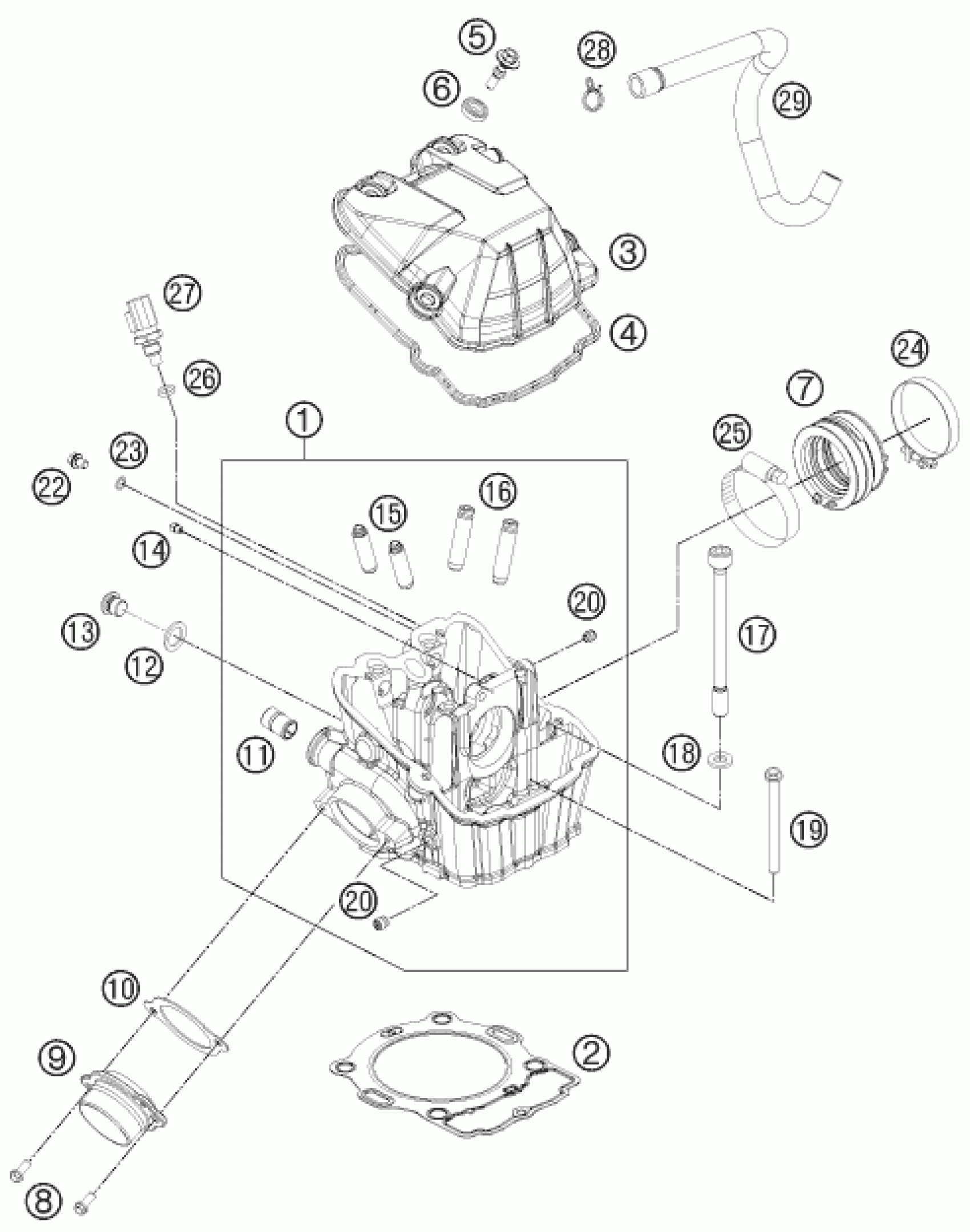

KTM 450 XC-W 2012 CYLINDER HEAD Diagram

HH collar screw M6x8 TX30

0025060086

$2.05

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

CYLINDER HEAD CPL.

78136020044

$602.24

CYLINDER HEAD GASKET 08

78030036000

$94.80

VALVE COVER BLACK MATT

7803605200033

$48.89

VALVE COVER GASKET

78036053000

$9.90

VALVE COVER SCREW

78036054100

$6.63

decoupling element

75036052010

$4.11

CONNECTION RUBBER EFI

77236044000

$36.27

HH collar screw M6x16 TX30

0025060166

$3.08

EXHAUST FLANGE

78136139000

$36.55

EXHAUST FLANGE GASKET

78036041000

$3.08

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

PLUG SCREW SAS M12X1,5

78036024000

$9.72

oil jet 70 M5

60030063070

$8.59

VALVE GUIDE OUTLET

77136026001

$27.85

VALVE GUIDE INTAKE

78136025001

$25.42

CYL. HEAD SCREW M10X1,25 L=125

78030044000

$6.35

washer 19x10.5x2.5

77336089010

$4.11

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

SCREW PLUG

59030296000

$6.26

ENGINE BREATHER TUBE

78130087000

$25.05

Hose clip GEMI 58

77236048000

$12.05

Hose clamp GEMI 63mm 05

61036047000

$7.56

o-ring 10.00x2.00 silicone

0770100020

$2.05

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64
