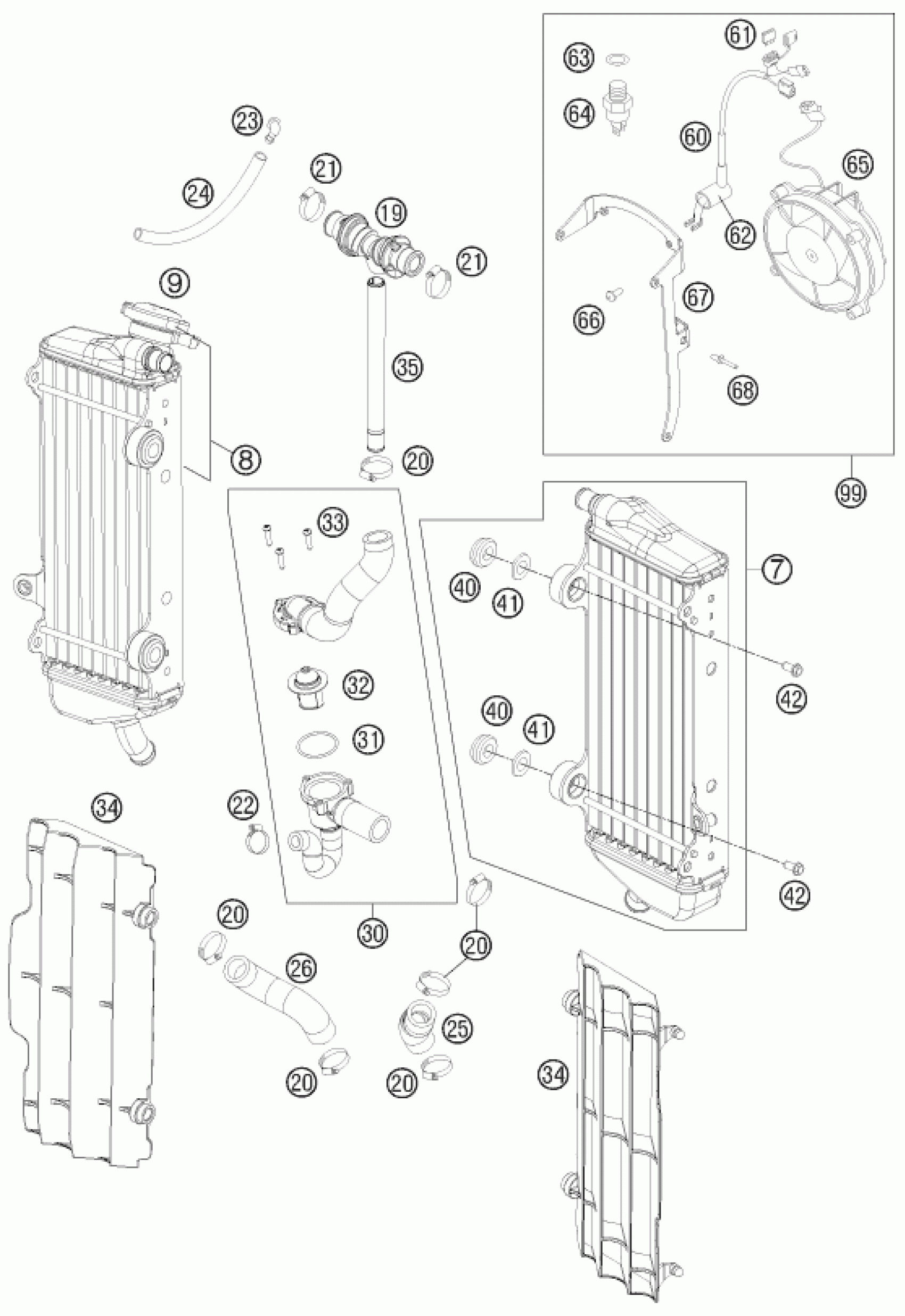

KTM 450 XC-W 2012 COOLING SYSTEM Diagram

#

Description
Price

26

RADIATOR HOSE R/S 2012

78135027000

$10.65

99

FAN KIT COMPLETE

81235941044

$143.64

7

RADIATOR L/S ''55623U'' 12

77035007300

$285.26

8

RADIATOR R/S ''65061U'' 12

78035008200

$269.27

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

$22.62

19

Y-CONNECTOR CPL.

77235071044

$53.38

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

21

HOSE CLAMP NORMA 14/24

42013037400

$2.05

22

HOSE CLAMP GEMI 10-16

58335099000

$4.11

23

ANGLE PIECE '97

50303089000

$5.23

24

PVC-HOSE 6X9

50335030001

Unavailable

25

RADIATOR HOSE L/S 2012

78135025000

$10.09

30

RADIATORHOSE CPL. THERM.70°C

78135026033

$123.04

31

O-RING 32,00X2,00

0770320020

$2.05

32

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

63

ALU SEALRING DIN7603-14X20X1,5

0603142015

$2.05

64

THERMOSWITCH 95-100 DG

78035045000

$39.09

33

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

34

RADIATOR PROTECTION BLACK 07

7733503400030

$10.74

34

RADIATOR PROTECTION orange

7733503400004

Unavailable

35

HOSE CONNECTOR L=172,5

77235073000

$23.93

68

RIVET 4,0X 8 ALU

0011400800

$1.49

62

PROTECTION CAP THERMOSWITCH

58311096000

$9.06

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

WASHER FOR RADIATOR 08

77335001000

$2.05

42

COLLAR SCREW M6X12 TX

0023060123

$2.05

60

FAN WIRING HARNESS

59011079100

$41.13

61

FUSE 5 A 2003

58011109105

$2.05

65

FAN CPL. 12V LC4 2000

58435041000

$137.53

66

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

67

FAN SUPPORT

81235943000

$63.74

98

RADIATOR KIT 08-14

00050000131

$453.95
