CLUTCH

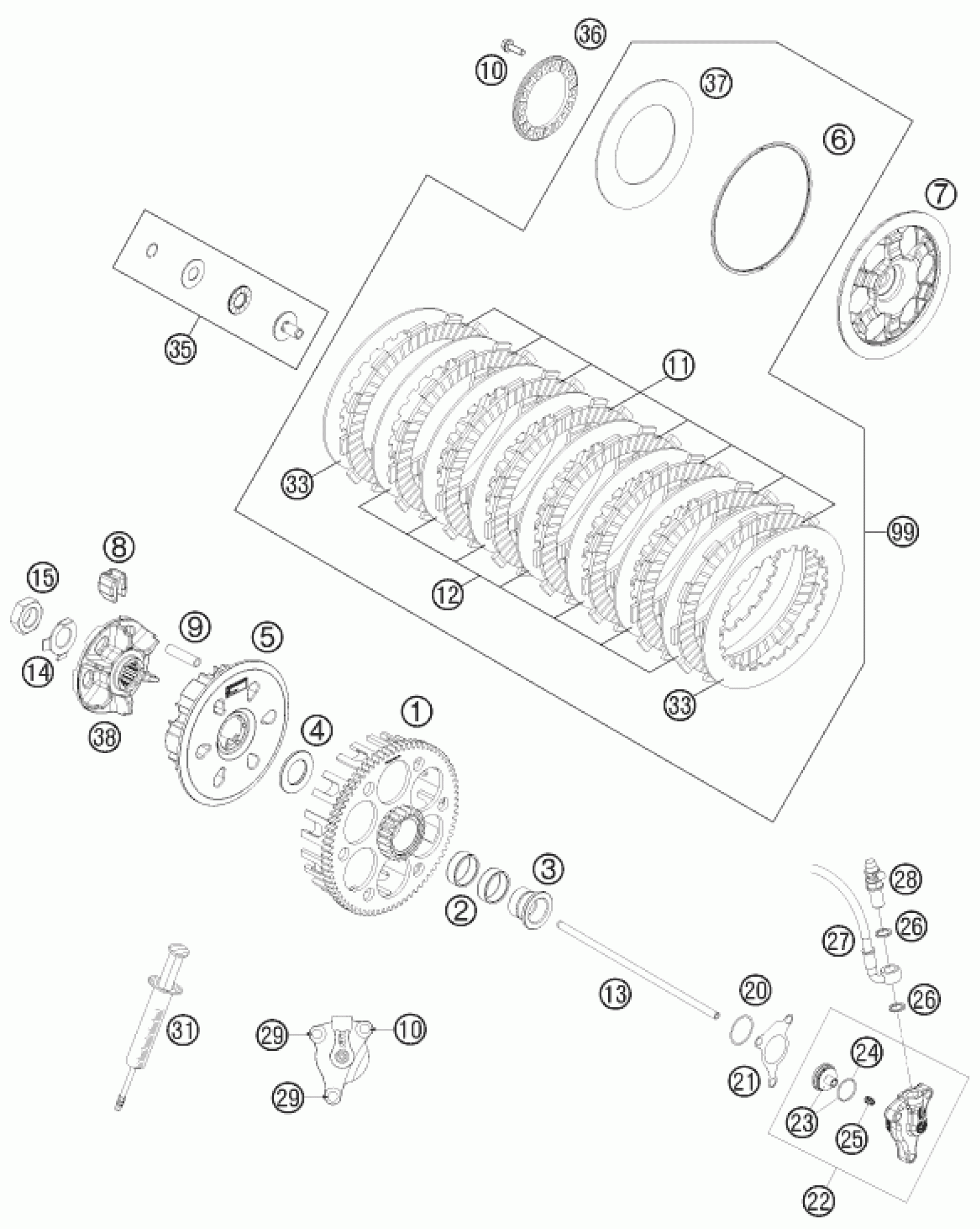

KTM 450 XC-W 2012 CLUTCH Diagram
#
Description
Price
1
CLUTCH CAGE
78132001076
$353.23
2
NEEDLE BEAR K 25X29X10
0405252910
$8.87
3
COLLARSLEEVE
78132015100
$26.92
4
WASHER 21,8 X 37 X 3
77232009100
$8.59
5
INNER CLUTCH HUB
78132002008
$134.72
6
WASHER 112X118X1.5
78132013000
$10.84
7
PRESSURE PLATE
78132003000
$208.87
8
DAMPING RUBBER
78132025100
$4.11
9
SLEEVE 7,5X33.4
78132004000
$4.11
10
HH collar screw M5x16 TX30
0025050166
$2.05
11
LINING DISC 2MM 04
59032011100
$22.43
12
INTERMEDIATE DISC 1,4MM 2002
59032010200
$10.93
13
PUSH ROD
78132054100
$11.59
14
TAB WASHER
78132018000
$5.88
15
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
$7.75
20
O-ring 30x1.5 NBR 70
0770300015
$2.05
21
GASKET FOR SLAVE CYLINDER
59032065000
$5.60
22
OUTPUT CYLINDER CPL. 06
54832061044
$137.44
23
PISTON CPL.
54832066000
$68.43
24
O-RING
54832067000
$3.08
25
PRESSURE SPRING
54832069000
$12.05
26
sealing ring DIN 7603 10x14x1
0603100141
$2.05
27
CLUTCH PIPE
78132063000
$107.14
28
BLEEDER SCREW CPL. 05
62513020000
$27.48
29
HH collar screw M6x20 TX30
0025060206
$3.08
31
VENT INJEKTION HYDR. CLUTCH
50329050000
$75.26
36
SPRING RING
78132006100
$10.84
33
INTERMEDIATE DISC 1MM 2002
59032010100
$9.81
35
PRESSURE PIECE CPL.
78132057044
$30.75
99
CLUTCH KIT 450 SX-F/EXC 12
78132011110
$270.30
37
BELLEVILLE SPRING 71X115X1,5 I
78132005000
$31.97
38
HUB
78132002111
$134.72
