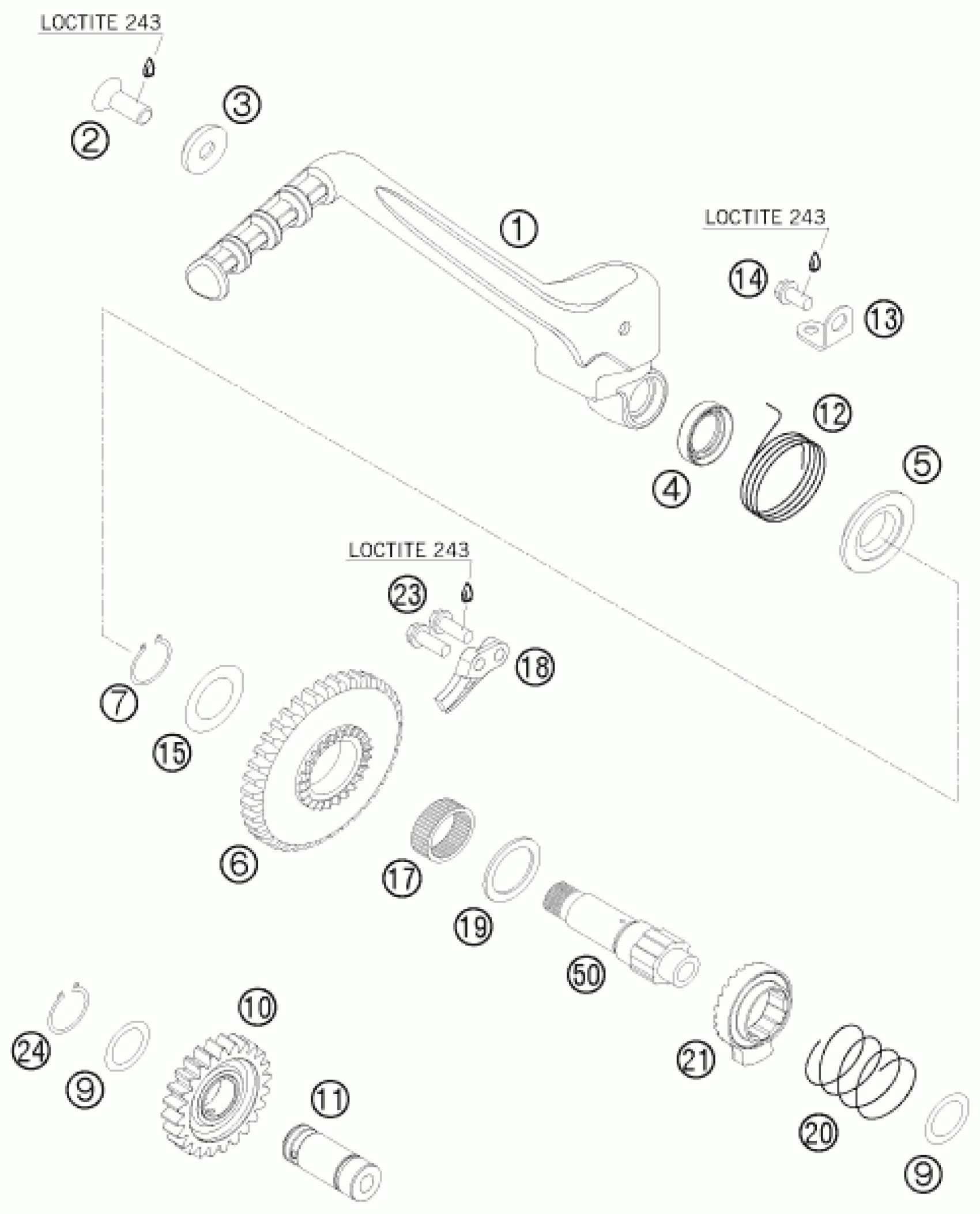

KTM 450 XC-W 2010 KICK STARTER Diagram

KICK STARTER CPL.

77033170044

$132.67

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

WASHER 8MM GALVANIZED

54633037000

$6.07

SHAFT SEAL RING 19X30X7 B

0760193070

$5.60

DRIVING HUB

59033055000

$4.11

KICKSTARTER GEAR 39-T

59033051039

$81.90

CIRCLIP DIN0471-19X1,2

0471190120

$1.49

SHIM WASHER DIN0988-17X24X0,5

0988172405

$2.05

INTERMEDIATE GEAR CPL.

78033053100

$72.92

BUSHING PIN

78033018100

$11.49

KICKSTARTER SPRING

59033054000

$8.03

SPRINGHOLDER 08

78033074000

$3.08

AH SCREW DIN0912-M 6X12

0912060123

$3.08

Shim 20x31.9x1

59033080000

$2.05

NEEDLE BEARING K 22X26X10 A

0405222610

$6.72

BUMP PART

59033069000

$13.27

STOP DISK 22,2 X 30 X 1,5

58033031000

$4.11

RATCHET GEAR SPRING 1,2 MM

58033028000

$2.05

RATCHET GEAR KICK STARTER

78033052000

$47.30

HH collar screw M6x20 TX30

0025060206

$3.08

KICKSTARTER SHAFT

59033050100

$65.25

CIRCLIP DIN0471-17X1

0471170010

$2.05
