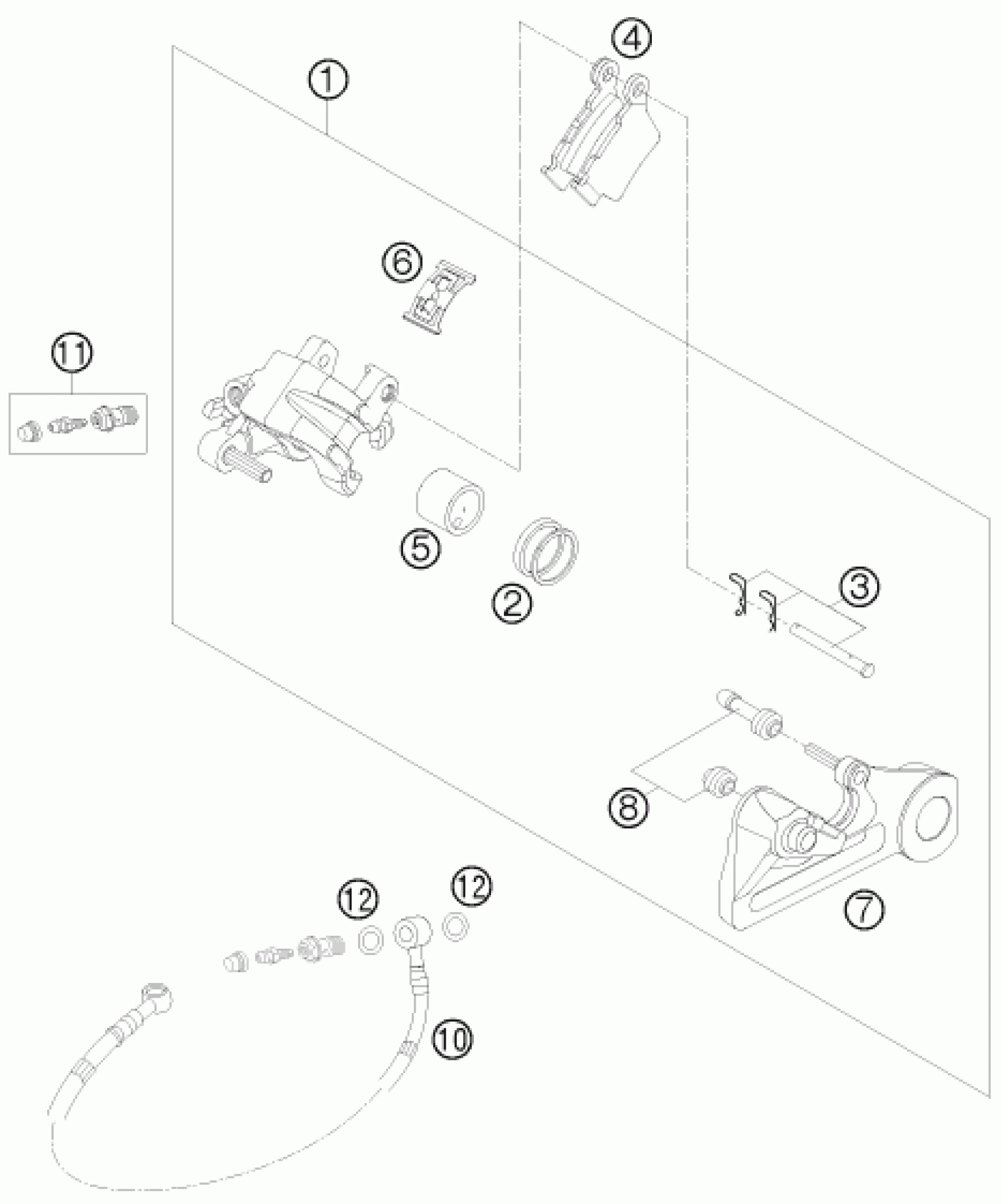

KTM 450 XC-W 2009 REAR BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CAL. RE. - WITHOUT PADS

54813080101

$286.10

2

REPAIR KIT SEALING RINGS 26MM

50313081200

$17.38

3

Bolt set for brake caliper 03

54813082000

$26.08

4

BRAKE PAD SET REAR TOYO

54813090300

$76.94

5

BRAKE PISTON 26MM 2003

54813083000

$53.94

6

Retaining spring set 2003

54813018000

$28.60

7

BRAKE CALIPER SUPPORT REAR

54813075000

$148.19

8

CUP SET SHORT

54613218000

$23.55

10

BRAKE HOSE REAR 655MM 03

54813070000

$109.01

11

BLEEDER SCREW CPL. 05

62513020000

$27.48

12

sealing ring DIN 7603 10x14x1

0603100141

$2.05
