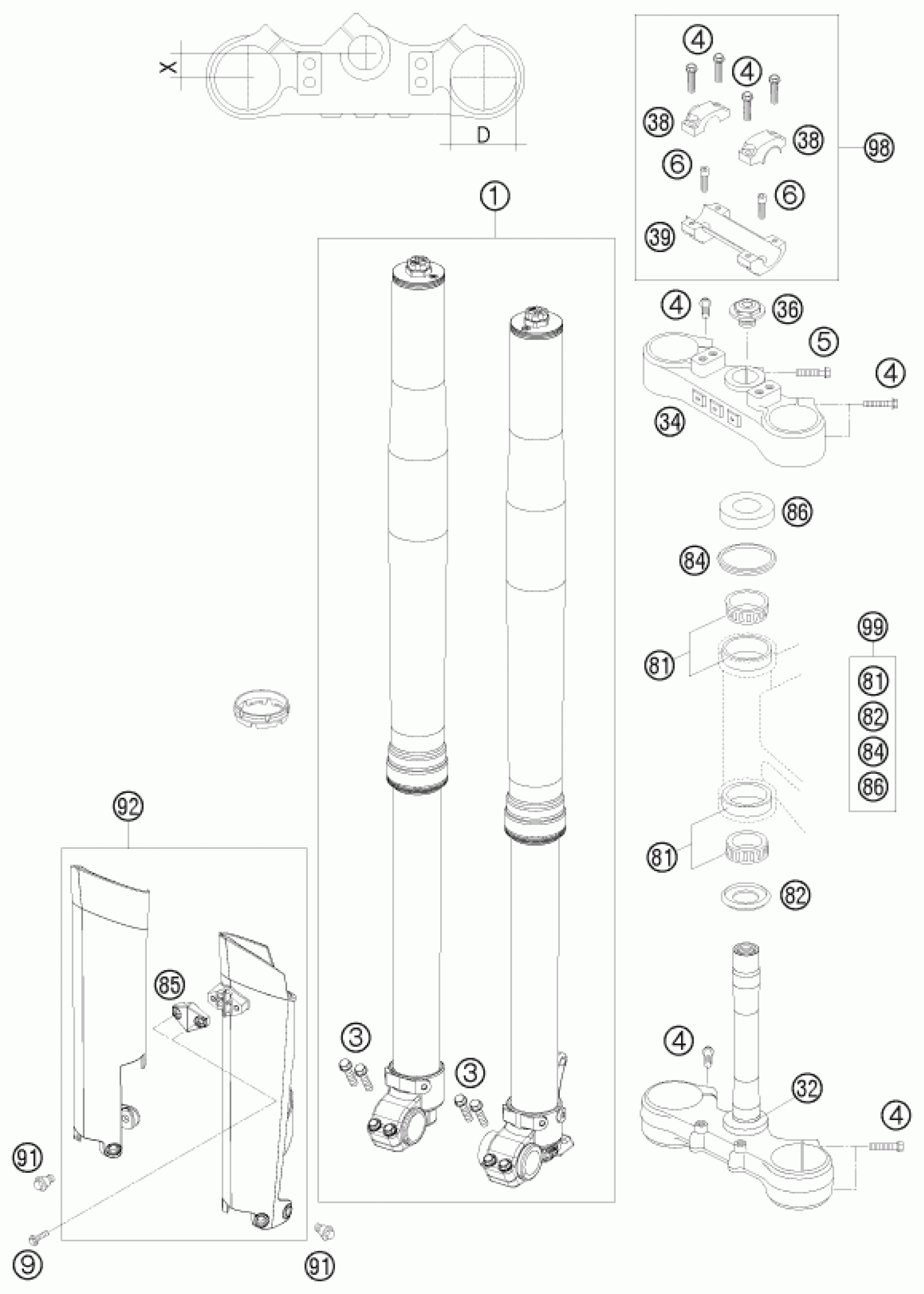

KTM 450 XC-W 2009 FRONT FORK, TRIPLE CLAMP Diagram

FORK KTM 450/530EXC/XC-W 2009

14187E0601

$2,122.97

HH collar screw M8x25

0025080256

$2.05

HH collar screw M8x30

0025080306

$3.08

HH collar screw M8x35 TX40

0025080356

$4.11

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

BOTTOM TRIPLE CLP CPL.X=20MM

59001032320

Unavailable

TOP TRIPLE CLMP X=20MM/D=54MM

59001034120

$182.13

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

O-RING SUPPORT W. SEALINGLIP

54601084200

$19.35

STEARING HEAD GASKET TOP

54601184000

$7.10

CLAMP FOR SPEED CABLE D=6MM 08

7800108500004

$3.15

STEERING HEAD COVER

54201086000

$8.50

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

FORK PROTECTIO LE+RI ORAN.08

7800109400004

$30.94

HANDLEBAR SUPPORT KIT

00050000920

Unavailable

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
