Description

Price

1

E-START. ENGINE CPL. 0,45KW 08

78040001000

$283.67

2

HH collar screw M6x20 TX30

0025060206

$3.08

3

O-RING 25,12X1,78 NBR70

0770020220

$3.08

4

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

5

STOP DISC 6X23X2

78040016004

$3.08

6

BEARING BOLT

78040029000

$6.54

14

SHIM WASHER DIN0988-17X24X0,5

0988172405

$2.05

15

TORQUE LIMITER CPL.

78040016000

$177.92

16

CIRCLIP DIN0471-17X1

0471170010

$2.05

19

IDLER GEAR 30-T CPL.

78040022000

$51.70

20

BUSHING PIN

78040028000

$6.91

21

FREEWHEEL GEAR CPL.

78040020133

$119.95

23

FREE WHEEL

75040026000

$108.64

7

BRUSH HOLDER F. STARTER

78040002000

$22.43

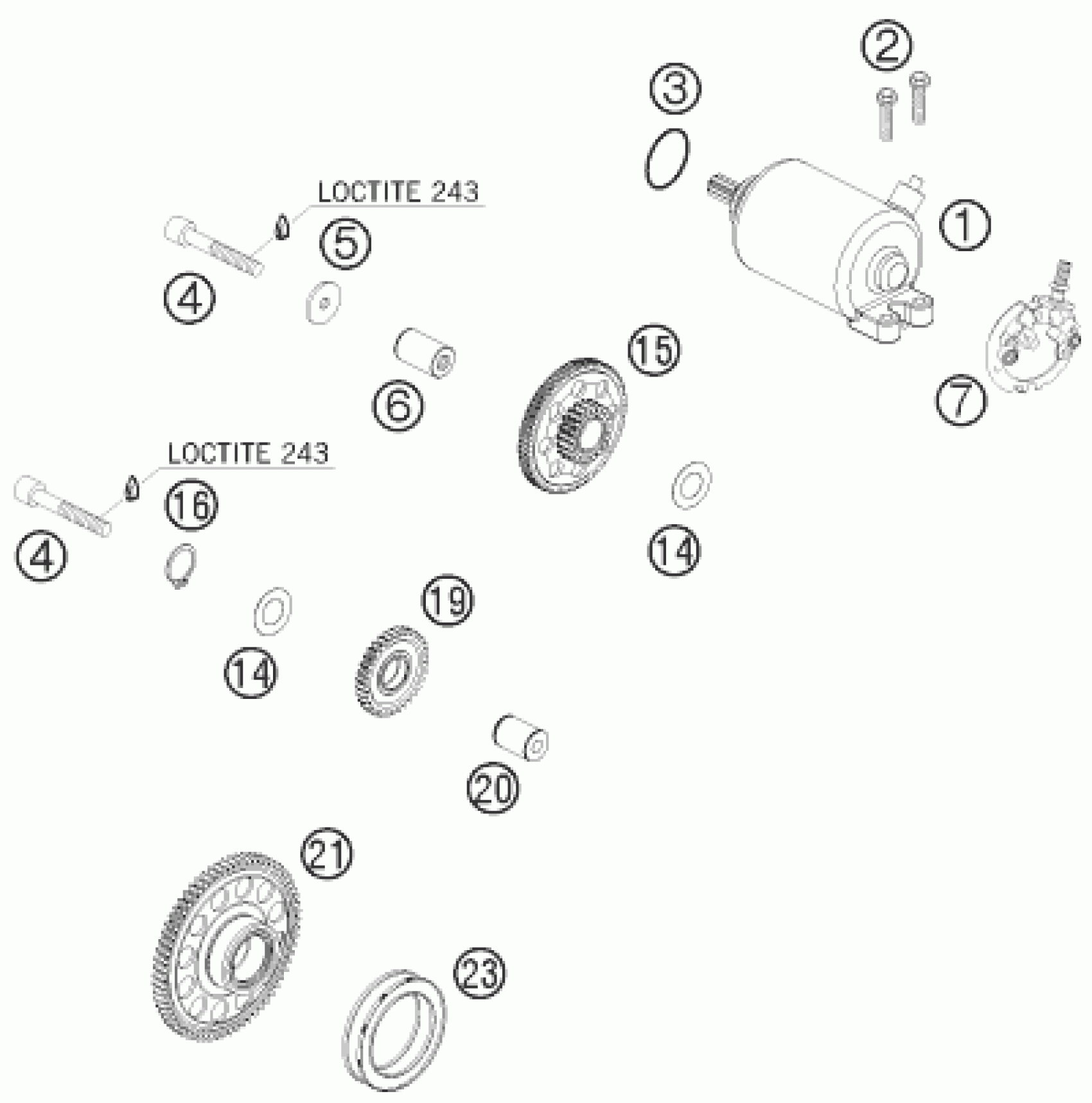

KTM 450 XC-W 2009 ELECTRIC STARTER Diagram

E-START. ENGINE CPL. 0,45KW 08

HH collar screw M6x20 TX30

O-RING 25,12X1,78 NBR70

AH SCREW DIN0912-M 6X40 A2

STOP DISC 6X23X2

BEARING BOLT

SHIM WASHER DIN0988-17X24X0,5

TORQUE LIMITER CPL.

CIRCLIP DIN0471-17X1

IDLER GEAR 30-T CPL.

BUSHING PIN

FREEWHEEL GEAR CPL.

FREE WHEEL

BRUSH HOLDER F. STARTER
