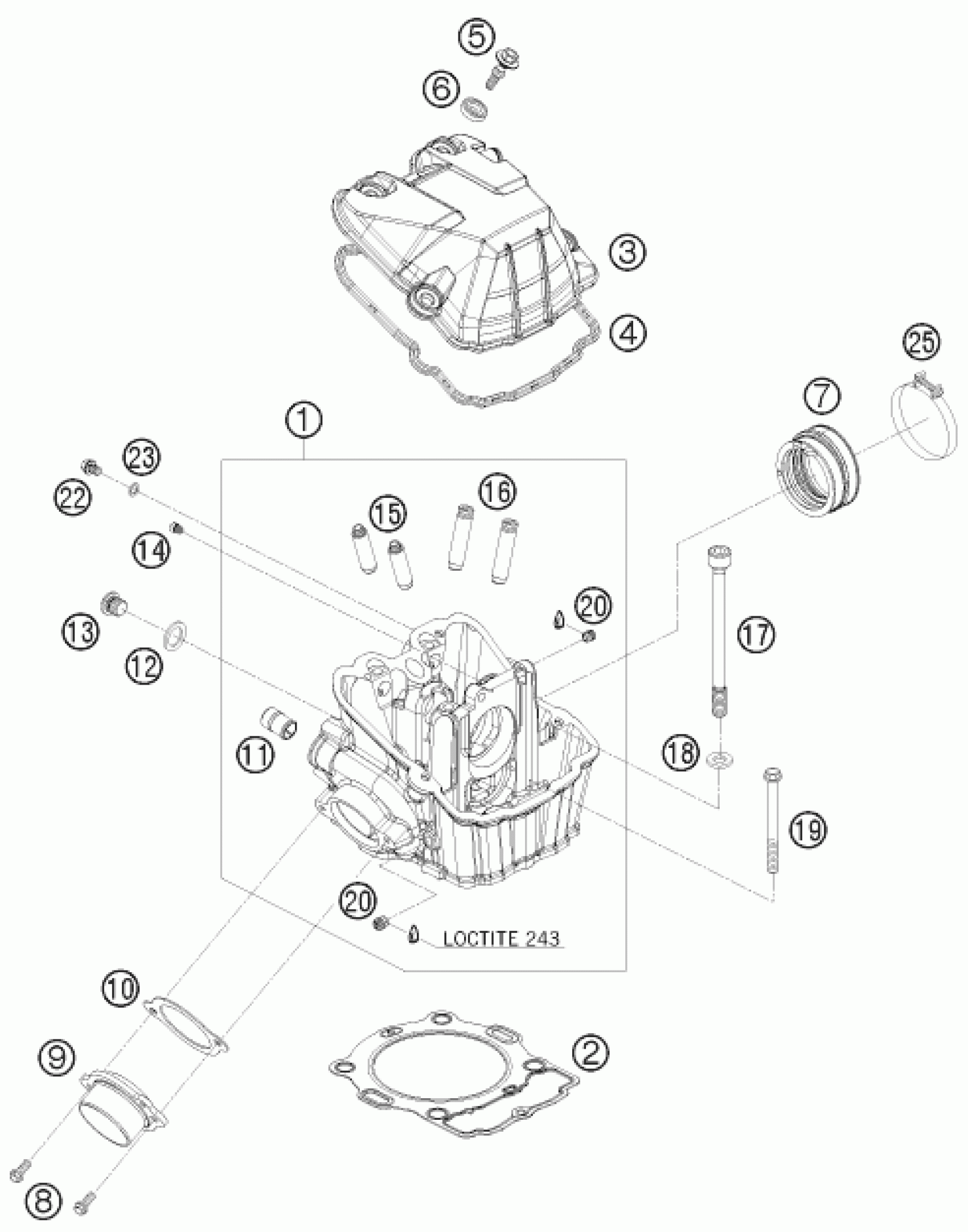

KTM 450 XC-W 2009 CYLINDER HEAD Diagram

#

Description
Price

2

CYLINDER HEAD GASKET 08

78030036000

$94.80

7

INTAKE BOOT

78036144100

$29.16

1

CYLINDER HEAD CPL.

78036020044

$645.06

3

VALVE COVER BLACK MATT

7803605200033

$48.89

4

VALVE COVER GASKET

78036053000

$9.90

5

VALVE COVER SCREW

78036054000

$6.63

6

decoupling element

75036052010

$4.11

8

HH collar screw M6x16 TX30

0025060166

$3.08

9

EXHAUST FLANGE CPL. EXC-F 08

78036139000

$36.55

10

EXHAUST FLANGE GASKET

78036041000

$3.08

11

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

12

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

13

PLUG SCREW SAS M12X1,5

78036024000

$9.72

14

oil jet 70 M5

60030063070

$8.59

15

VALVE GUIDE EXHAUST

78036026000

$10.22

16

VALVE GUIDE INTAKE

78036025000

$28.51

17

CYL. HEAD SCREW M10X1,25 L=125

78030044000

$6.35

18

washer 19x10.5x2.5

77336089010

$4.11

19

HH COLLAR SCREW M6X75 TX30

0025060756

$3.08

20

SCREW PLUG

59030296000

$6.26

22

HH collar screw M6x8 TX30

0025060086

$2.05

23

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

25

CLAMP D=56MM B=9MM M4X25

59030061000

$5.23
