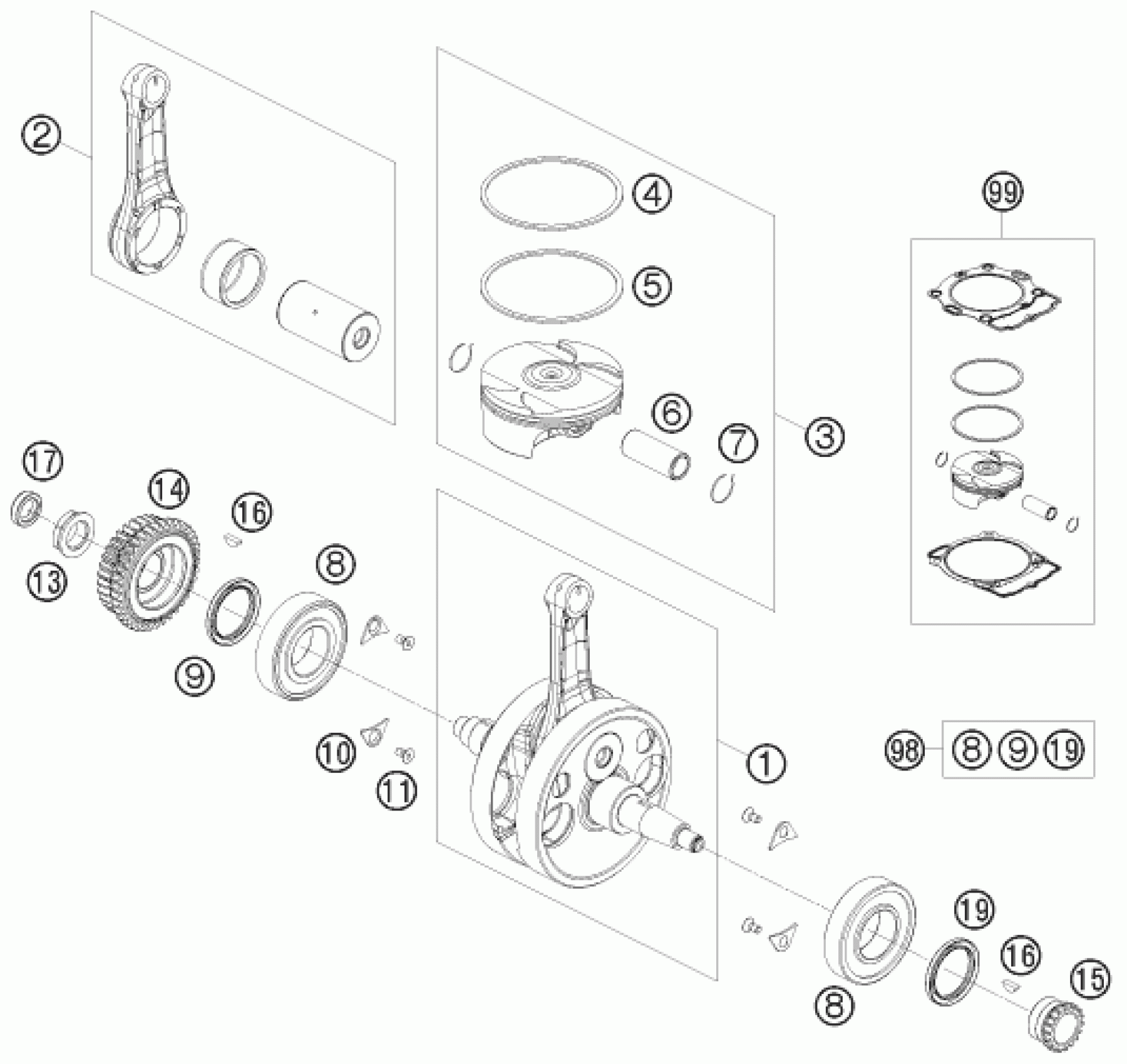

KTM 450 XC-W 2009 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

78030018200

$479.49

2

CONNECT. ROD REPAIR 450 08

78030015044

$357.73

3

PISTON CPL.

78030007300 I

$441.69

3

PISTON CPL.

78030007300 II

$373.34

4

COMPRESSION RING

78030030100

$43.66

5

OIL SCRAPER PISTON RING

78030032200

$52.26

6

PISTON PIN 08

78030033000

$63.00

7

CIRCLIP

77330074000

$13.08

8

BALL BEARING 6207 TM-SX07E 39

0625062071

$52.82

9

SHAFT SEAL RING 35X47X7 A-DUO

0760354773

$34.68

10

RETAINING PLATE F. CS BEARING

75030085000

$1.49

11

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

13

NUT PRIMARY WHEEL

78030029100

$10.09

14

PRIMARY WHEEL

78032000333

$189.61

15

TIMING GEAR 18T.

78036014200

$40.66

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

17

radial shaft seal 14x24x6 B

0760142460

$9.25

19

SHAFT SEAL RING 35X47X7 VITON

0760354774

$11.87

99

PISTON KIT GR.I 450 EXC 08-11

00050000030

Unavailable

99

PISTON KIT GR. II 450EXC 08-11

00050000214

Unavailable

98

CRANKSHAFT REP.KIT 400-530 EXC

00050002309

Unavailable
