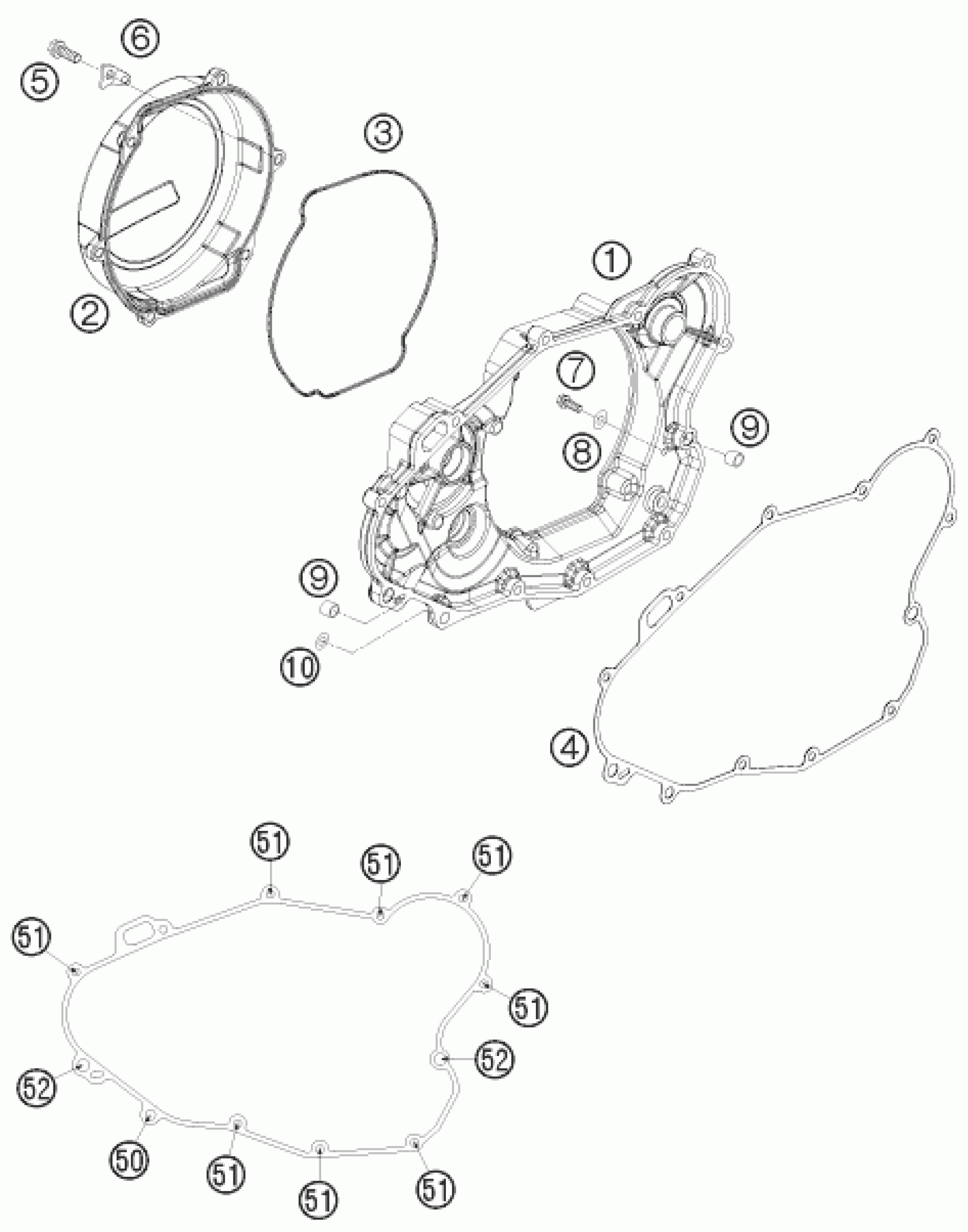

KTM 450 XC-W 2009 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER GREY CPL. 09

7803000104415

$124.82

2

OUTER CLUTCH COVER

7803002610015

$47.12

3

GASKET OUTER CLUTCH COVER

78030027000

$6.72

4

CLUTCH COVER GASKET 08

78030025000

$33.18

5

HH collar screw M6x20 TX30

0025060206

$3.08

6

SPRING HANGER

78030028000

$3.08

7

HH collar screw M6x8 TX30

0025060086

$2.05

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

DOWEL 9,8 X 7 X 10

49030090000

$2.05

10

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

50

LOCATING SCREW

78030080000

$4.11

51

HH collar screw M6x25 TX30

0025060256

$3.08

52

HH collar screw M6x30 TX30

0025060306

$3.08
